Surface Mount Component Mounting Kit (SMX-22)

Accurate alignment and soldering neatly

• Jig and Tool
• Soldering Related Products
• Sn 63%, Pb 37%

This product includes equivalent RoHS compatible productsSMX-52” is there.

Prices have been revised from August 1st, 2025.

This is a eutectic type of surface mount part mounting kit. Compared to previous products, it has "better wettability" and "reduces solder balls from being generated." Whether it's a QFP IC or a chip resistor, it can be easily mounted without the need for special tools. The effect of slow-curing adhesive allows for slow and accurate positioning. This kit can install more than 50 100-pin QFP ICs (for reference use examples). *There is an expiration date. If you are not using it for more than 3 days, store in a refrigerator at 0 to 10°C.

Main specifications

Model number

SMX-22

Material types

Sn 63%, Pb 37%

Quantity

1 set

Product size (approx. including packaging)

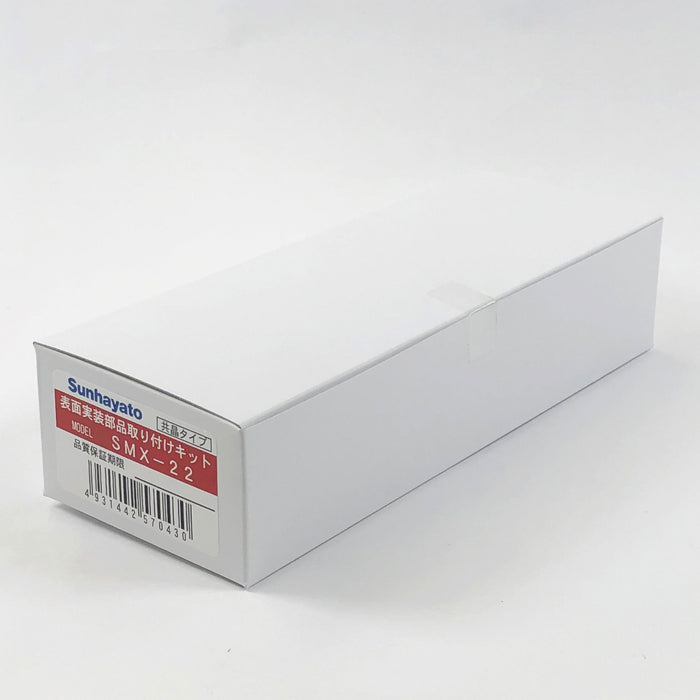

80 x 220 x 50 mm

Weight (approx. including packaging)

92g

JAN Code

4931442570430

country of origin

Japan

Accessories (set contents)

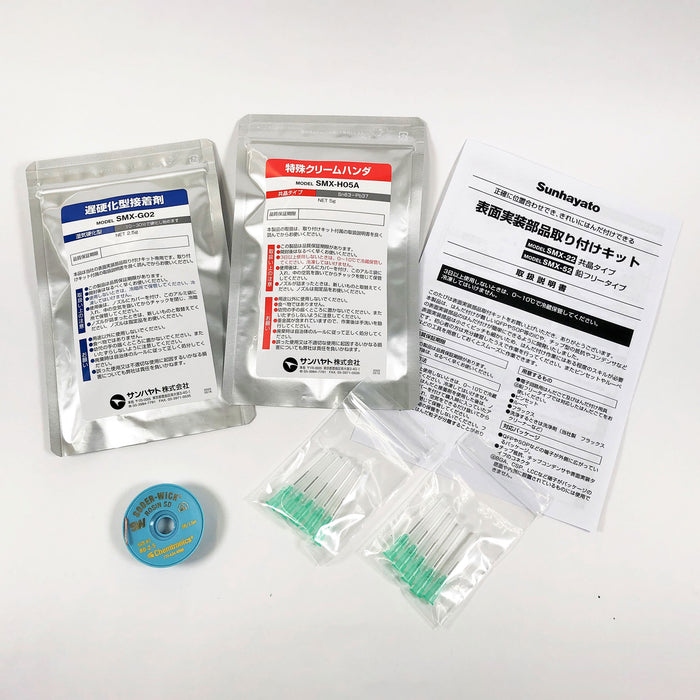

Special cream solder: SMX-H05A x 1, slow-curing adhesive: SMX-G02 x 1, replacement nozzle: SMX-HN5 x 2, solder wick: SW #2 x 1

Note

This product has an expiration date. The expiration date at the time of shipment from our company is at least one month. If you are not using it for more than 3 days, store it in a refrigerated position at 0 to 10°C. The adhesive of this product is not suitable for use in reflow tanks. It cannot be used on parts with terminals on the bottom such as BGA packages.

Melting point

SMX-H series solder: 183℃

Grain size

20-38μm

Solid phase temperature/liquid phase temperature

183℃／183℃

smx22
