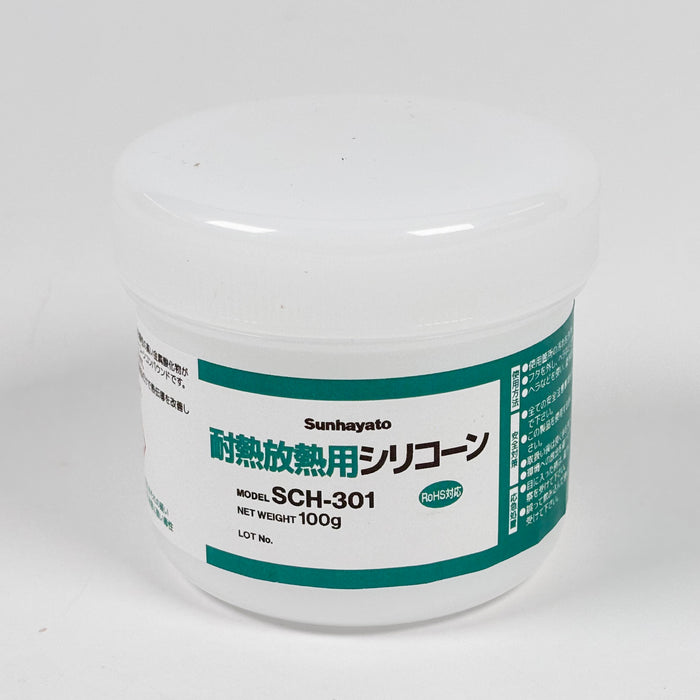

Heat-resistant thermally conductive silicone (100 g) (SCH-301)
受注生産
Original price
¥9,966
-
Original price
¥9,966
Original price
¥9,966
¥9,966
-
¥9,966
Current price
¥9,966
(Price including tax)
Silicone for heat dissipation suitable for use in environments up to 300°C
Prices were revised effective August 1, 2025.
This silicone improves thermal conductivity in heat-dissipating areas and withstands operating temperatures up to 300°C. Simply apply a thin layer between the CPU and heat sink to enhance thermal conductivity. It is a low-molecular-weight siloxane-reduced product (designed to prevent contact failure). Available in five variations with different container sizes. View variations by container size
The container was changed in March 2026, but the contents remain the same.
Main Specifications
- Model Number
- SCH-301
- RoHS Directive (10 Substances)
- Compliant
- Quantity per Can
- 1 can
- NET
- 100 g (42 ml)
- Product Dimensions (including packaging, approx.)
- Φ67 × 61 mm
- Weight (including packaging, approx.)
- 140 g
- JAN Code
- 4931442401604
- Country of Origin
- Japan
- Ingredients
- Silicone oil, filler
- Appearance
- White, grease-like
- Thermal Conductivity
- 0.84 W/m·K
- Volume resistivity
- 1.5 × 10¹⁴ Ω·cm
- Dielectric constant
- 5.0 (60 Hz)
- Dielectric loss tangent
- 0.005 (60 Hz)
- Mixing viscosity
- 330
- Specific gravity
- 2.34
- Oil separation
- 2.8 wt% (200°C, 24 h)
- Loss on Heating
- 0.2 wt% (200°C, 24 h)
- Low-molecular-weight siloxane
- 15 ppm (D3–D10)
- Operating temperature range
- –30 to 300°C
- Hazardous Substances Under the Fire Service Act and Content Levels
- For quantities of 3 metric tons or more: Designated Combustible Material (synthetic resins) 100 g
- Heat Resistance
- 300°C
