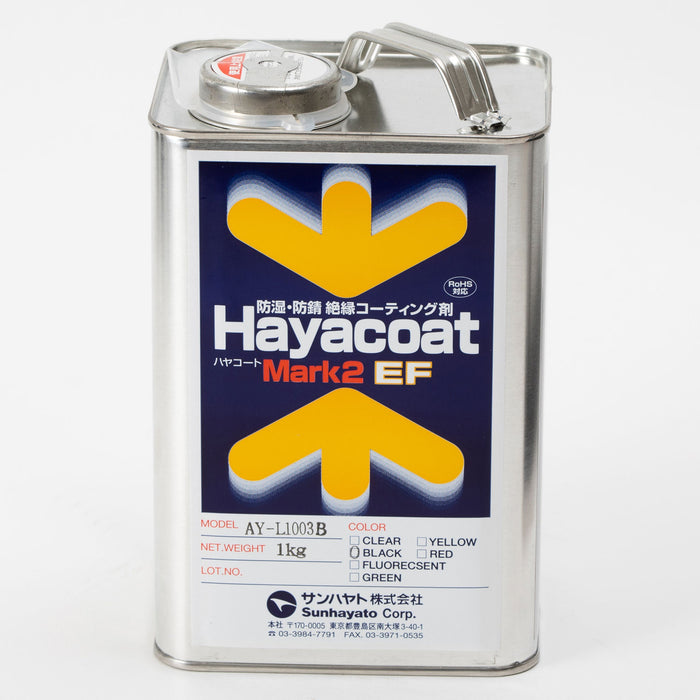

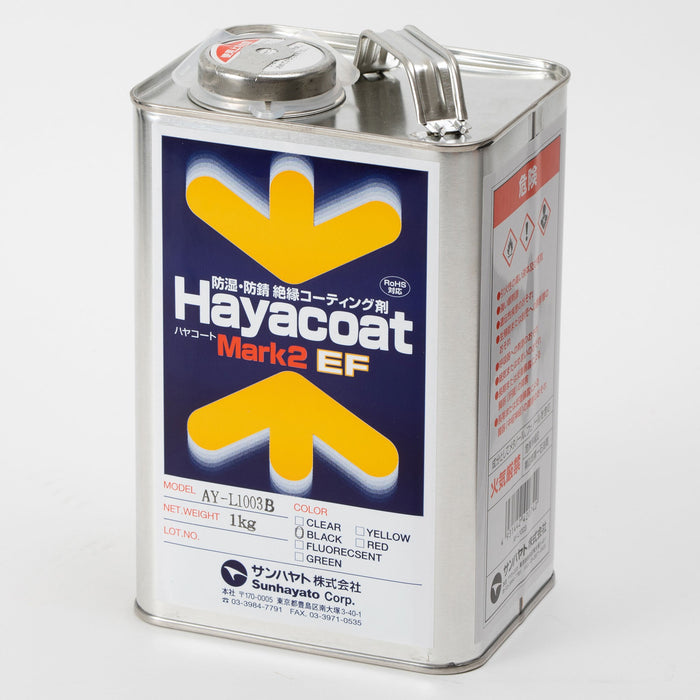

Hayacoat Mark2 EF (undiluted type / black / 1kg) (AY-L1003B)
Insulation coating for substrates with excellent moisture-resistant and corrosion-resistant gas
- Aerosol and Chemical Products
- Conformal Coating for Moisture-resistant and Anti-corrosive
- RoHS compatible
Prices have been revised from August 1st, 2025.

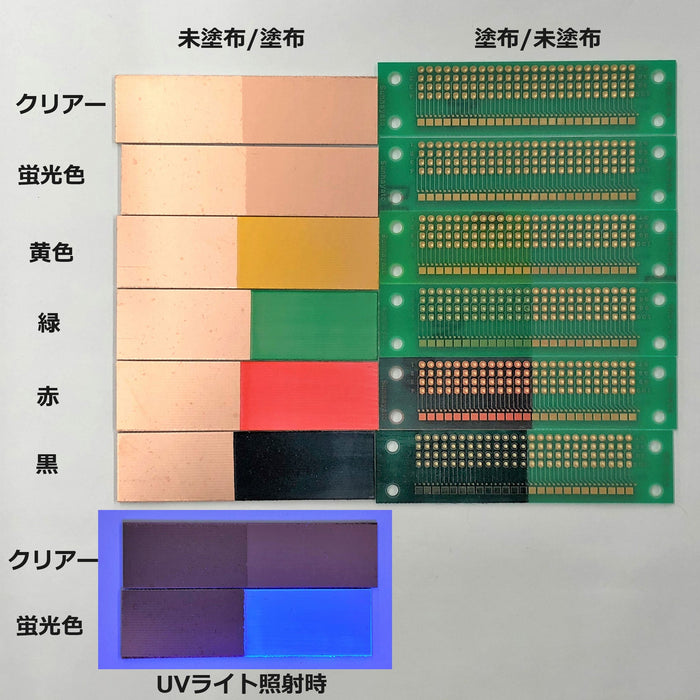

This is a moisture-proof and rust-proof coating that has excellent gas barrier properties and is effective against moisture and corrosive gases. It has excellent insulation properties and improves insulation reliability for narrow patterns on printed circuit boards. Protects the substrate from salt damage in corrosive gas atmospheres such as hot springs, and in coastal areas. It does not fall under the Organic Solvent Poisoning Prevention Rules. There are 2 variations with different content and 6 variations with different colors.See variations of different contentSee different colour variations
Main specifications
- Model number
- AY-L1003B
- RoHS Directive (10 Substances)
- correspondence
- Quantity
- 1 can
- NET
- 1kg (1.2L)
- Product size (approx. including packaging)
- 130 x 95 x 190 mm
- Weight (approx. including packaging)
- 1.3kg
- JAN Code
- 4931442420797
- country of origin
- Japan
- Main ingredients
- Polyvinyl resin
- exterior
- Black liquid
- Volume resistivity
- >1013Ω・cm
- Dielectric constant
- 3.4 (1MHz)
- Dielectric loss
- 3.5×10-2(1MHz)
- The strength of dielectric breakdown
- 12kV/0.1mm
- Pencil hardness
- 2H
- Copper plate corrosion test
- No discoloration (room temperature, 500h)
- Adhesion
- 100/100 (Cross-cut method on copper foil plate)
- Transmission humidity
- <0.25 (g/m2・D, 100μm)
- Sulfite-resistant gas test
- No corrosion on copper foil surface (30±2ppm, 48h)
- Hydrogen Sulfide Resistant Gas Test
- No corrosion on copper foil surface (30±6ppm, 48h)
- Heat resistance test
- No corrosion on copper foil surface (80°C, 90%, 168h)
- Thermal impact test
- No peeling or cracking (-40°C to 125°C, 100 cycles)
- High temperature test
- No change in insulation resistance (120°C, 500h)
- viscosity
- 21mPa・s (20℃)
- specific gravity
- 0.83（20℃）
- Continuous operating temperature range
- -40～125℃
- Whether or not flammable
- Flammable
- Hazardous materials and content under the Fire Service Act
- Class 4 1st Petroleum (water-insoluble) 1.2L
- Odor
- Alcohol smell
- Approximate area available
- 10m2(2 coats per 10μm at the rate listed in the technical documents)
- Flame retardant
- UL94 V-0 equivalent (not registered)
