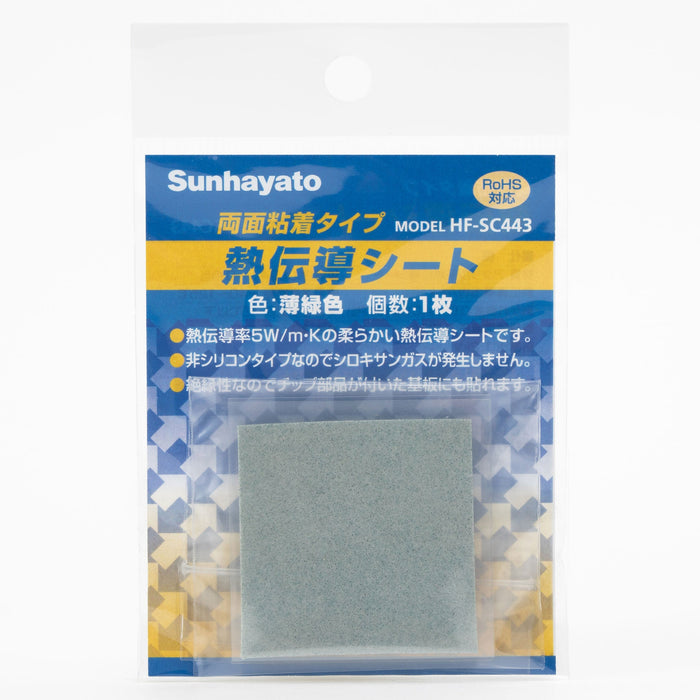

Thermal conductive sheet (3.0 mm thick) (HF-SC443)
在庫数128
Soft thermal conductivity sheet (3mm) with a thickness of 5W/m・k
Prices have been revised from August 1st, 2025.

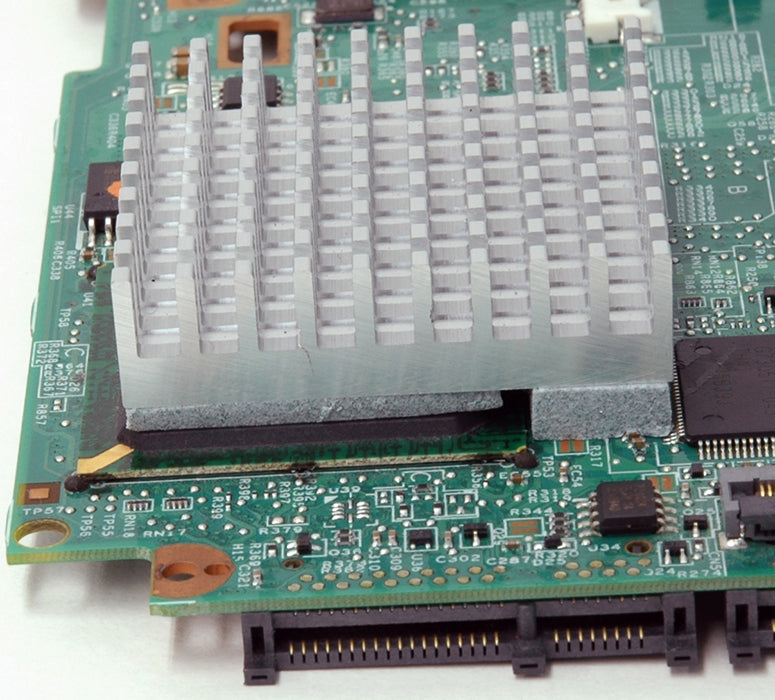

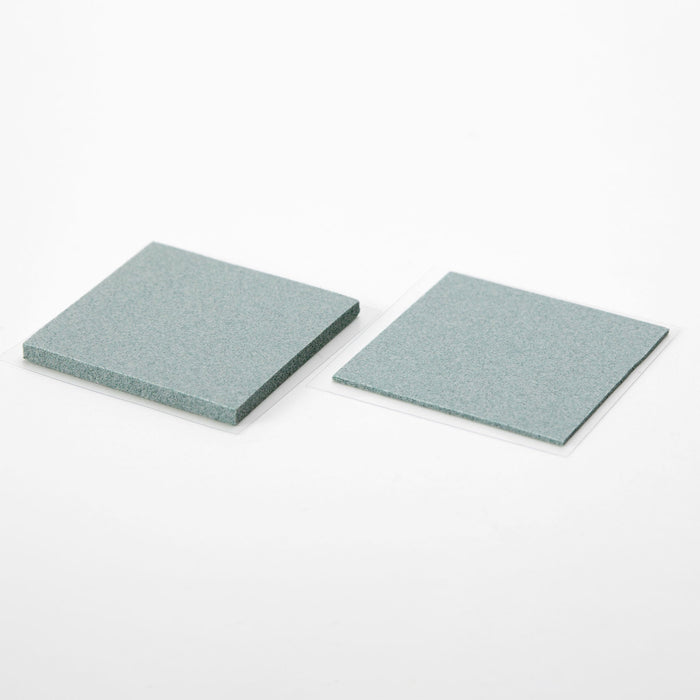

It is thick and soft, so even if there are small unevenness, the heat sink mounting surface can be flattened. It can be easily cut with a knife, so it can also be attached to small parts. Since it is a non-silicon type, it does not generate siloxane gas that causes contact damage. Because it is insulating, it can be attached to a board with chip parts. By combining sheets with different thicknesses, you can install a heat sink not only at IC but also at the height of the peripheral parts. There are two variations, with different thicknesses.See variations of different thicknesses

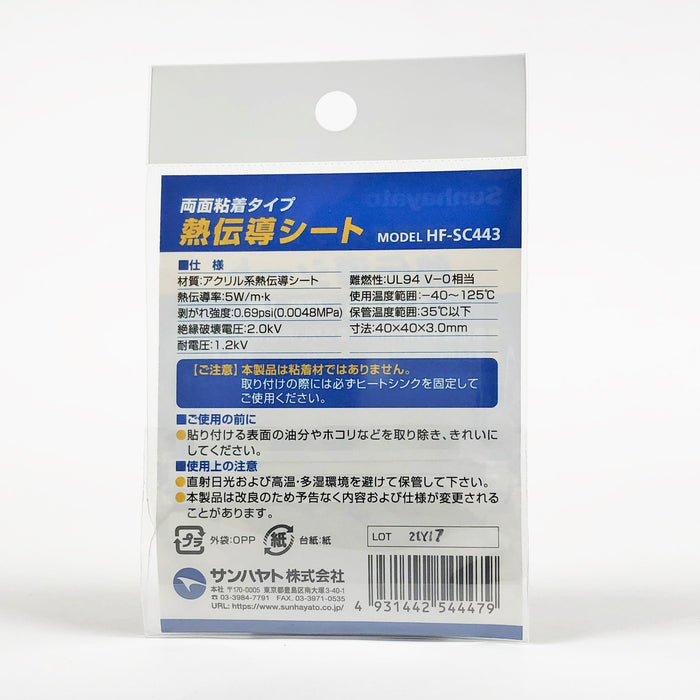

Main specifications
- Model number
- HF-SC443
- RoHS Directive (10 Substances)
- correspondence
- Material types
- Acrylic heat conduction sheet

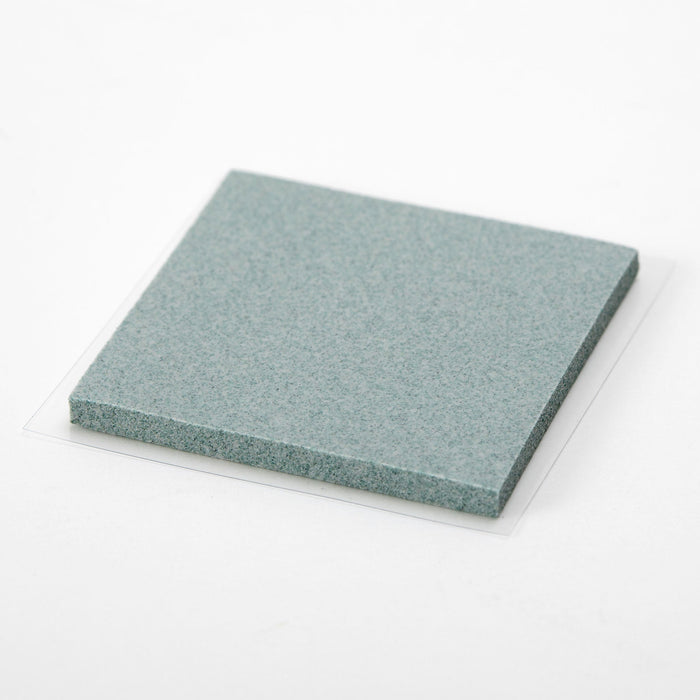

- Body size
- 40 x 40 x 3.0 mm
- Quantity
- 1 piece
- Product size (approx. including packaging)
- 75 x 120 x 5mm
- Weight (approx. including packaging)
- 18g
- JAN Code
- 4931442544479
- country of origin
- Japan
- Note
- This product does not have strong adhesive strength like tape or adhesive. When installing, be sure to secure the heat sink before using.
- Thermal conductivity
- 5W/mK
- The strength of dielectric breakdown
- 2.0kV
- Storage temperature range
- Below 35℃
- Operating temperature range
- -40～125℃
- Voltage resistance
- 1.2kV
- Peeling strength
- 0.69psi (0.0048MPa)
- Flame retardant
- Equivalent to UL94V-0
★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.
- Number of cases (boxes)
- 10 small boxes
- Small box size (approx.)
- 80 x 180 x 50 mm
- Small box weight (approx.)
- 210g
