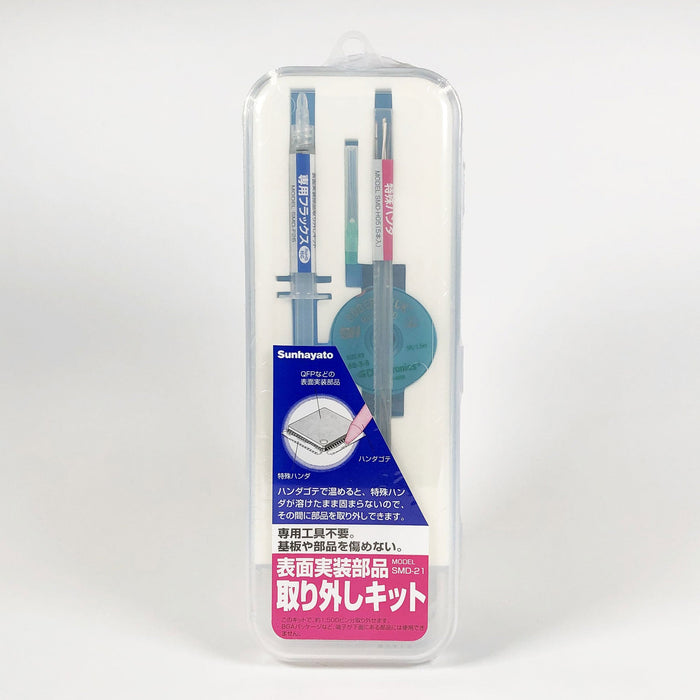

Surface Mount Component Removal Kit (SMD-21)
在庫数15
Safely remove ICs and connectors from the mounting board
This product includes equivalent RoHS compatible productsSMD-51” is there.
Prices have been revised from August 1st, 2025.
This is a lead-containing (general) type of surface-mounted parts removal kit. By mixing the dedicated low melting point (about 60°C) solder with the solder that the parts were mounted on, surface-mounted parts can be easily removed with just one soldering gear you have, whether it is a surface-mounted multi-layer board or a multi-pin IC or connector. The dedicated flux is an RMA (halogen-free) type that is environmentally friendly and has a component-friendly environment. It is also a high viscosity type, making it suitable for reworking SMD parts. This kit can be removed by approximately 1,500 pins.
Main specifications
- Model number
- SMD-21
- Quantity
- 1 set
- Product size (approx. including packaging)
- 90 x 260 x 30 mm
- Weight (approx. including packaging)
- 140g
- JAN Code
- 4931442570201
- country of origin
- Japan

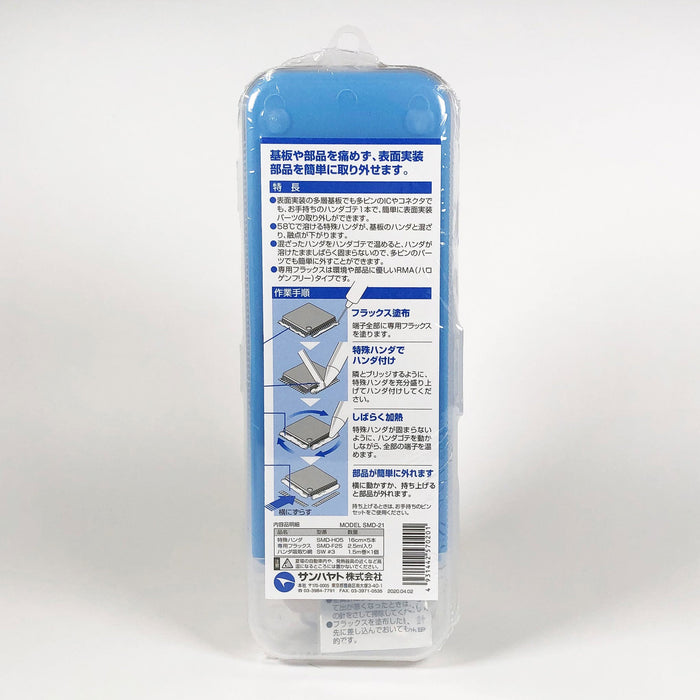

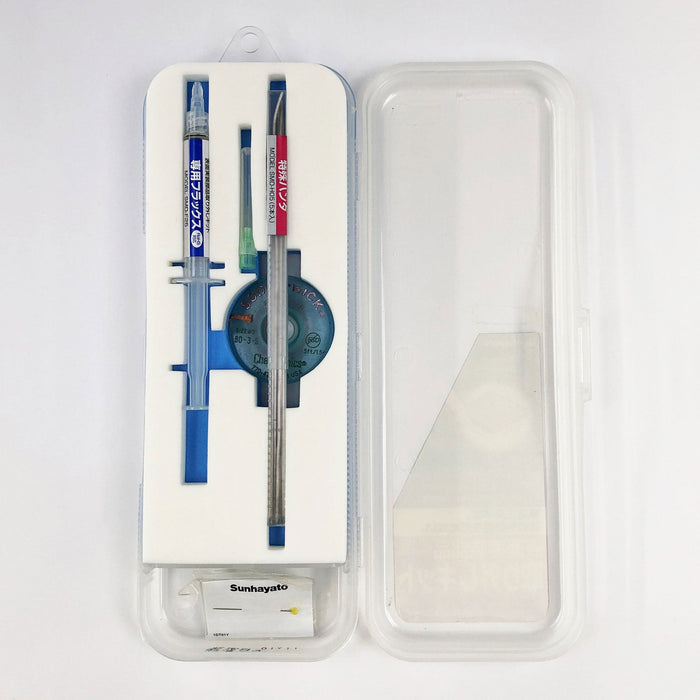

- Accessories (set contents)
- Special solder: SMD-H05 (16cm x 5 bottles), Special flux: SMD-F25 (2.5ml pack), Solder blotting net: SW #3 (1.5m roll x 1 piece)
- Note
- It cannot be used on parts with terminals on the bottom, such as BGA packages.
- Melting point
- SMD-H series solder: Approx. 60℃
smd21
