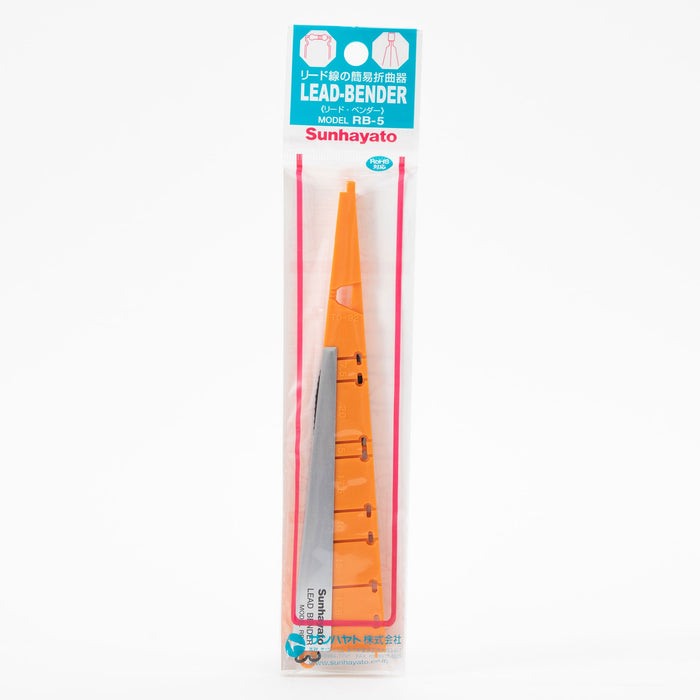

Lead bender (RB-5)

Part leads can be bent at right angles

• Jig and Tool
• Other tools
• RoHS compatible
• ABS (orange)

Prices have been revised from August 1st, 2025.

This is a convenient tool that allows you to fold leads of axial components such as resistors and diodes at right angles with just one touch. The leads of TO-92 type transistors can also be bent at 2.54mm pitch. It can also be formed so that it can be mounted by floating it from the board.

• Lead benderSee examples of use of (RB-5)

Main specifications

Model number

RB-5

RoHS Directive (10 Substances)

correspondence

Material types

ABS (orange)

Quantity

1 piece

Product size (approx. including packaging)

45 x 220 x 10 mm

Weight (approx. including packaging)

16g

JAN Code

4931442572519

country of origin

Japan

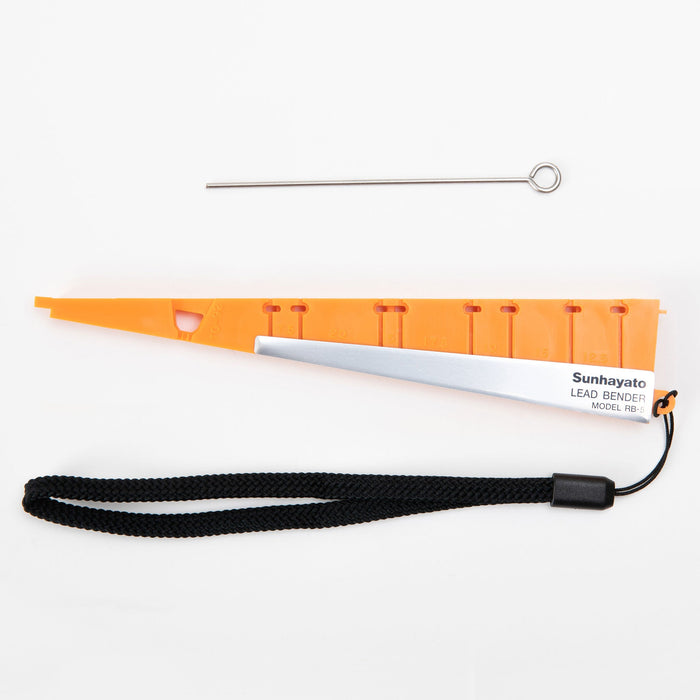

Accessories (set contents)

Straps, forming rods

FoldPitch

2.5mm pitch (approximate value) between 2.5 to 30mm and vertical bending is also possible

Compatible products

Bending compatible parts: Axial type resistors, diodes, etc. Compatible transistors: TO-92 type Lead wire thickness: Φ0.9mm (max.)

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

80 x 180 x 50 mm

Small box weight (approx.)

190g

rb5
