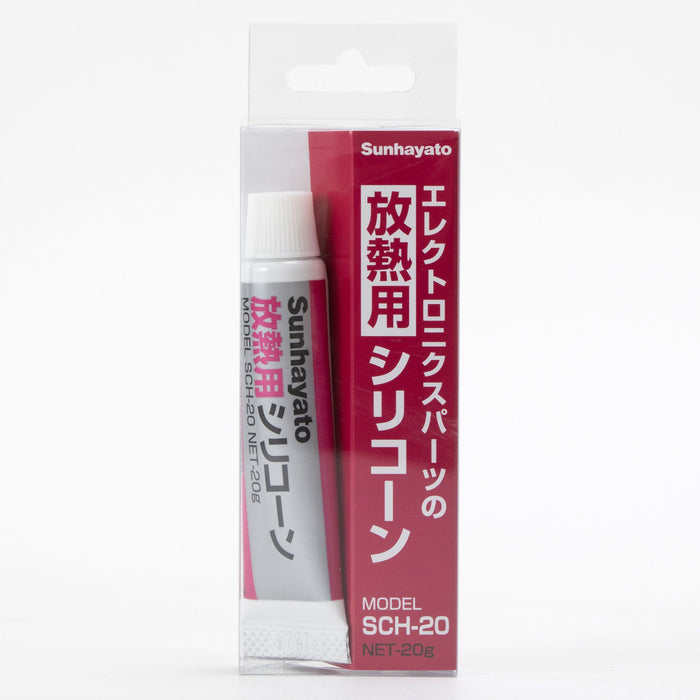

Silicone for heat dissipation (20g) (SCH-20)
ネコポス対応
Original price
¥1,386
-
Original price
¥1,386
Original price
¥1,386
¥1,386
-
¥1,386
Current price
¥1,386
(Price including tax)
在庫数7685
Paste-like silicone with high thermal conductivity
Prices have been revised from August 1st, 2025.

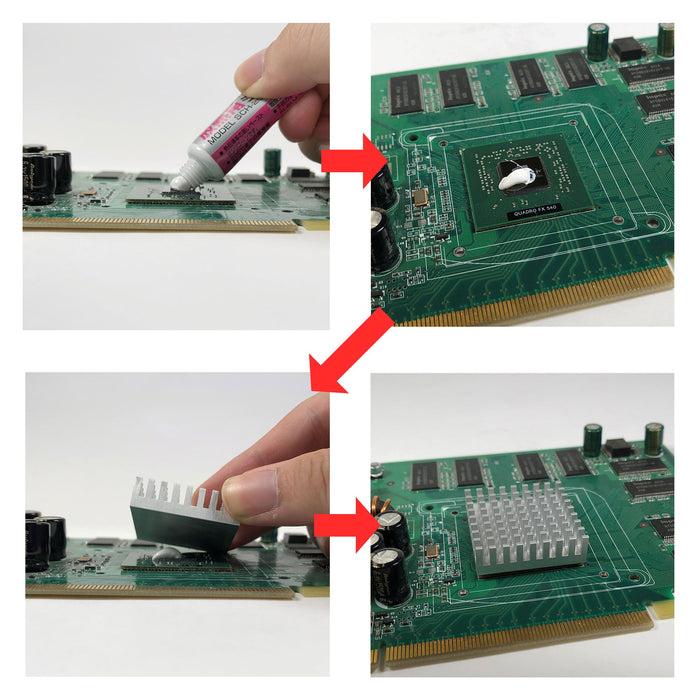

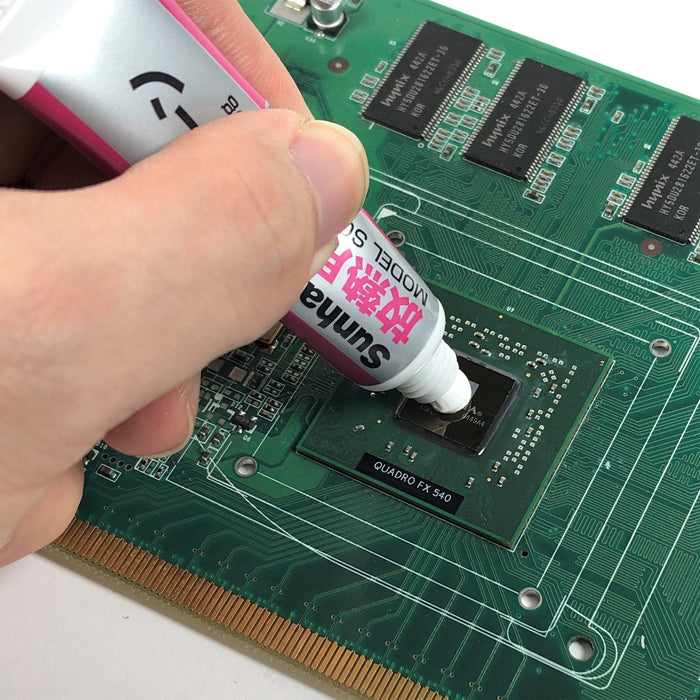

This silicone improves the thermal conductivity of the heat dissipation part, which can withstand the use of 200°C. Simply apply a thin layer between the CPU and the heat sink to improve thermal conductivity. This is a low-molecular siloxane reduced product (contact damage prevention product). There are five variations with different content.See variations of different content
Main specifications
- Model number
- SCH-20
- RoHS Directive (10 Substances)
- correspondence
- Quantity
- 1 piece
- NET
- 20g (8ml)
- Product size (approx. including packaging)
- 40 x 120 x 15 mm
- Weight (approx. including packaging)
- 30g
- JAN Code
- 4931442401406
- country of origin
- Japan
- component
- Silicone oil, filler
- exterior
- White grease-like
- Thermal conductivity
- 0.84W/mK
- Volume resistivity
- 2.0×1014Ω・cm
- Dielectric constant
- 5.0 (60Hz)
- Dielectric loss
- 0.006 (60Hz)
- Mixing level
- 290
- specific gravity
- 2.45
- Oil release level
- 0.0wt% (150℃, 24h)
- Reduced heating
- 0.4wt% (150℃, 24h)
- Small molecule siloxane
- 30ppm (D3~D10）
- Operating temperature range
- -50～200℃
- Hazardous materials and content under the Fire Service Act
- If the product is 3 ton or more, 20g of designated combustible materials (synthetic resins)
- Heat resistant
- 200℃
★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.
- Number of cases (boxes)
- 10 small boxes
- Small box size (approx.)
- 80 x 220 x 50 mm
- Small box weight (approx.)
- 330g
