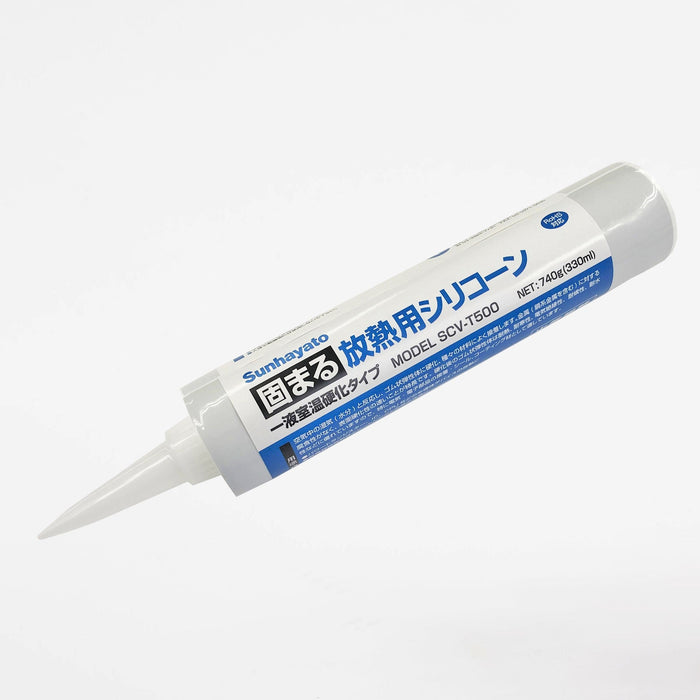

Silicone for heat dissipation that hardens (740g) (SCV-T500)
受注生産
Original price
¥30,580
-
Original price
¥30,580
Original price
¥30,580
¥30,580
-
¥30,580
Current price
¥30,580
(Price including tax)
Silicone for room temperature curing heat dissipation countermeasures that can fix parts
Prices have been revised from August 1st, 2025.
It is a one-component room temperature curing type, and can be fixed by simply removing it from the tube and applying it between the parts. It can withstand 150°C usage environmentThermally Conductive SiliconeIt is effective in preventing heat dissipation in electronic devices. If you want to securely secure the CPU, etc., please also take measures such as screwing. When using, a cartridge gun (caulking gun) sold at home improvement stores etc. is required separately. There are two variations depending on the content.See variations of different content
Main specifications
- Model number
- SCV-T500
- RoHS Directive (10 Substances)
- correspondence
- Quantity
- 1 bottle
- NET
- 740g (330ml)
- Product size (approx. including packaging)
- Φ50 x 290mm
- Weight (approx. including packaging)
- 790g
- JAN Code
- 4931442401710
- country of origin
- Japan
- Note
- Please prepare a cartridge gun (caulking gun) separately.
- component
- Silicone oil, filler
- exterior
- White paste
- Thermal conductivity
- 0.92W/mK
- Volume resistivity
- 1.0×1015Ω・cm
- Dielectric constant
- 4.1 (1MHz)
- Dielectric loss
- 0.002 (1MHz)
- The strength of dielectric breakdown
- 28kV/mm
- Tensile strength
- 4.4MPa
- Tensile shear bond strength
- 274N/cm2(aluminum)
- viscosity
- 108Pa・s (before curing)
- specific gravity
- 2.25
- Operating temperature range
- -40～150℃
- Hazardous materials and content under the Fire Service Act
- 2m3In the above case, designated flammable materials (flammable liquids) 330ml
- Tack-free time
- 10-30 min
- Hardening time
- 24 hours
