Silicone for heat dissipation that hardens (20g) (SCV-22)

Name: Silicone for heat dissipation that hardens (20g) (SCV-22)
Brand: サンハヤト株式会社
SKU: 4931442401703
Price: 1837.0 JPY
Availability: InStock

ネコポス対応

¥1,837 - ¥1,837

¥1,837

¥1,837 - ¥1,837

¥1,837

(Price including tax)

quantity

在庫数327

Silicone for room temperature curing heat dissipation countermeasures that can fix parts

Prices have been revised from August 1st, 2025.

It is a one-component room temperature curing type, and can be fixed by simply removing it from the tube and applying it between the parts. It can withstand 150°C usage environmentThermally Conductive SiliconeIt is effective in preventing heat dissipation in electronic devices. If you want to securely secure the CPU, etc., please also take measures such as screwing. There are two variations depending on the content.See variations of different content

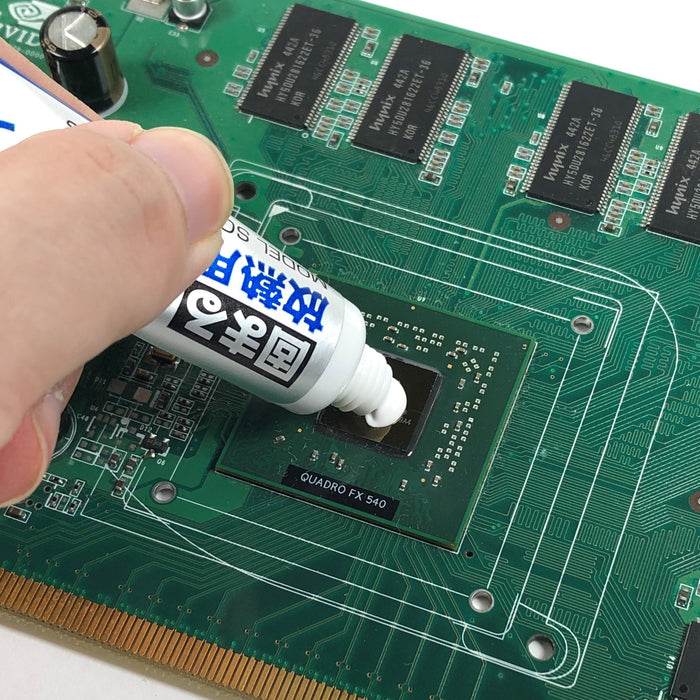

Thermally conductive RTV siliconeSee examples of use of (20g) (SCV-22)

Main specifications

Model number: SCV-22
RoHS Directive (10 Substances): correspondence
Quantity: 1 piece
NET: 20g (9ml)
Product size (approx. including packaging): 40 x 120 x 15 mm
Weight (approx. including packaging): 25g
JAN Code: 4931442401703
country of origin: Japan
Note: After curing, it cannot be dissolved or peeled off with a chemical. This is physically removed by removing it with a knife or wire.
component: Silicone oil, filler
exterior: White paste
Thermal conductivity: 0.92W/mK
Volume resistivity: 1.0×10¹⁵Ω・cm
Dielectric constant: 4.1 (1MHz)
Dielectric loss: 0.002 (1MHz)
The strength of dielectric breakdown: 28kV/mm
Tensile strength: 4.4MPa
Tensile shear bond strength: 274N/cm²(aluminum)
viscosity: 108Pa・s (before curing)
specific gravity: 2.25
Operating temperature range: -40～150℃
Hazardous materials and content under the Fire Service Act: 2m³In the above case, designated flammable materials (flammable liquids) 9ml
Tack-free time: 10-30 min
Hardening time: 24 hours

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes): 10 small boxes
Small box size (approx.): 80 x 220 x 50 mm
Small box weight (approx.): 340g

scv22
