USB Type-C connector conversion board (CK-49)

Convert USB Type-C plug connector to 2.54mm pitch

• Universal Printed Circuits Boards
• Special Connector Conversion Boards
• RoHS compatible
• Glass Epoxy (FR-4)

Prices have been revised from August 1st, 2025.

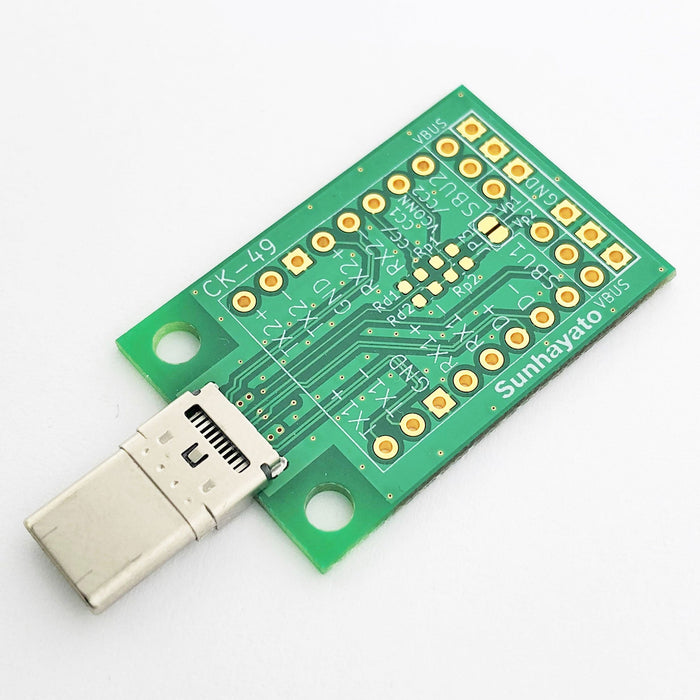

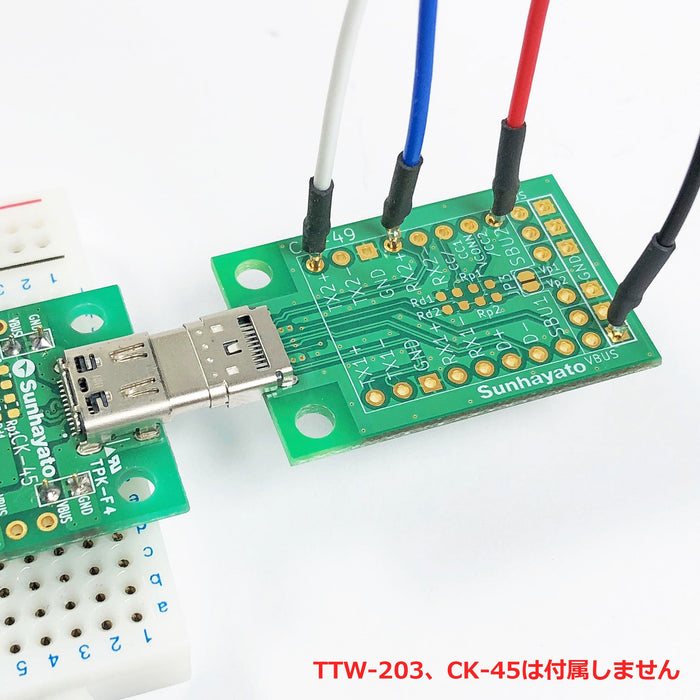

Converts USB Type-C plug connectors to 2.54mm pitch.BreadboardorUniversal Printed Circuits BoardsIt is convenient for prototyping and experimenting with the product (all USB Type-C standard signals are extracted). The CC/VCONN terminal can also be equipped with a resistor (size 1608) that is used to determine the input/output direction, etc. (by switching the pad on the back, the power supply on the pull-up side can be detached from VBUS).

Main specifications

Model number

CK-49

RoHS Directive (10 Substances)

correspondence

Material types

Glass Epoxy (FR-4)

Body size

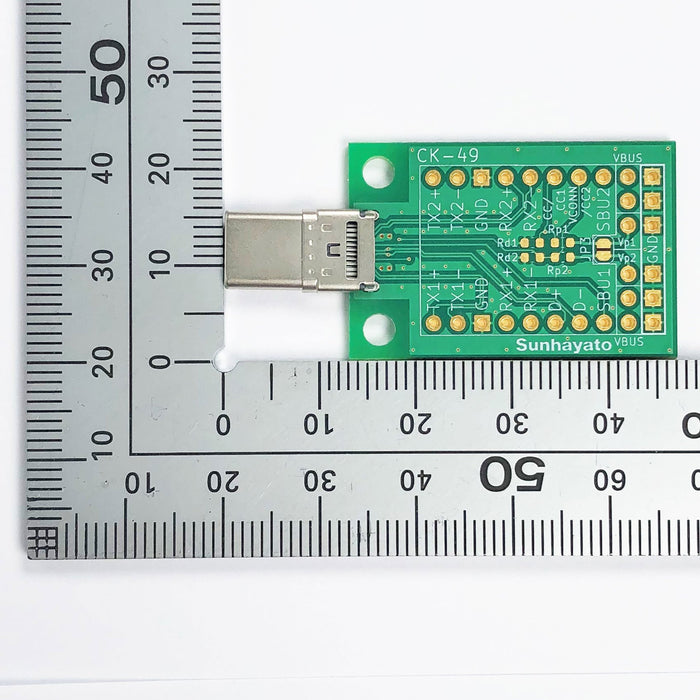

46.79 (Board: 34.29+Connector: 12.5) x 22.86 x 1.6t (mm)

Quantity

1 piece

Body weight (excluding packaging)

3g

Product size (approx. including packaging)

75 x 90 x 5mm

Weight (approx. including packaging)

4g

JAN Code

4931442032495

country of origin

Japan

Finishing treatment

Through holes, resists,Single-sidedSilk, gold flash plating

Rated current

1.0A (VBUS-GND)

Connector name

USB Type-C (plug)

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

80 x 50 x 180 mm

Small box weight (approx.)

77g

ck49

Materials related to this product

• Detailed drawing of USB Type-C Connector Conversion Board (CK-49)
• RoHS warranty for USB Type-C connector conversion board (CK-49)
