USB Type-C connector conversion board (CK-45)
ネコポス対応
Original price
¥2,123
-
Original price
¥2,123
Original price
¥2,123
¥2,123
-
¥2,123
Current price
¥2,123
(Price including tax)
在庫数100
BreadboardEasy to use shape
- Universal Printed Circuits Boards
- Special Connector Conversion Boards
- RoHS compatible
- Glass Epoxy (FR-4)
- Double-sided
Prices have been revised from August 1st, 2025.

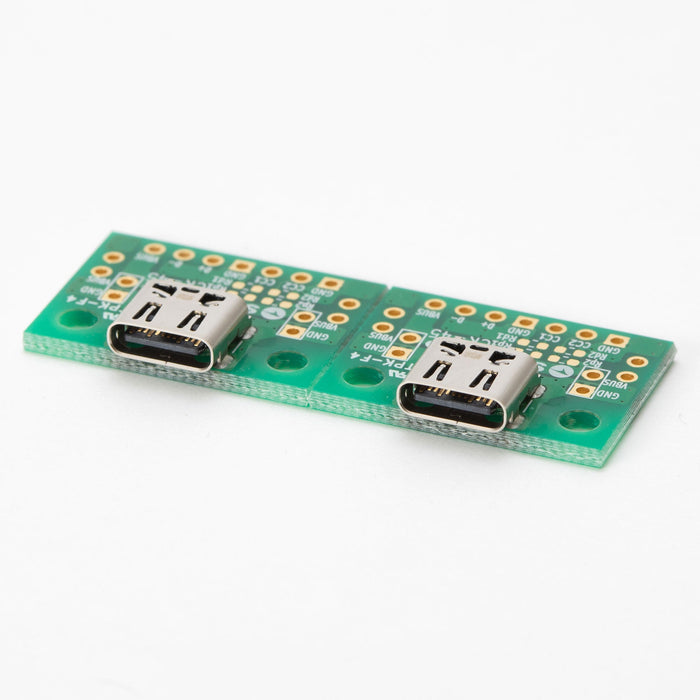

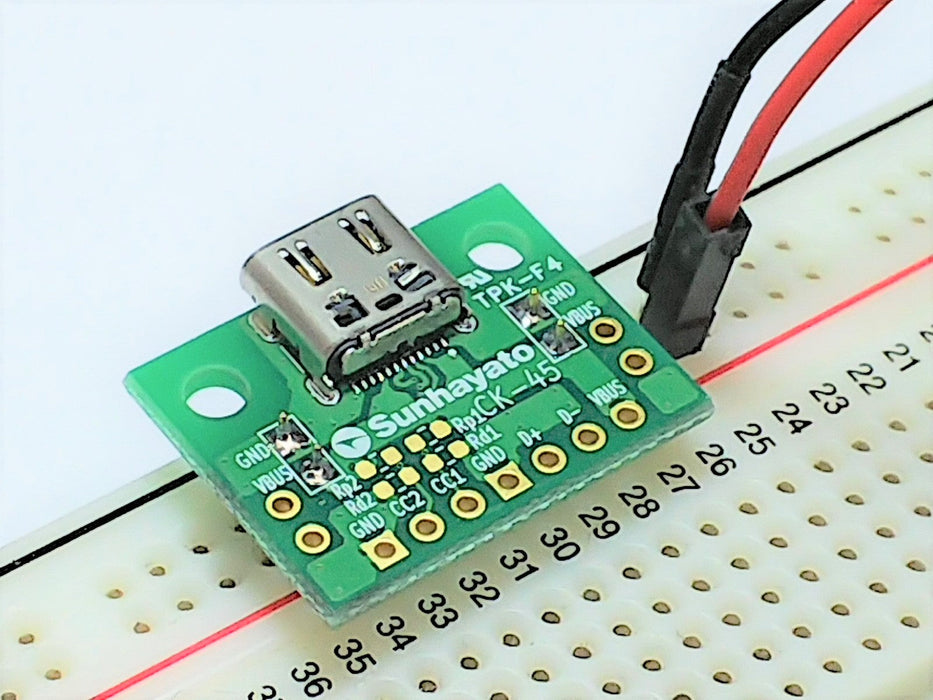

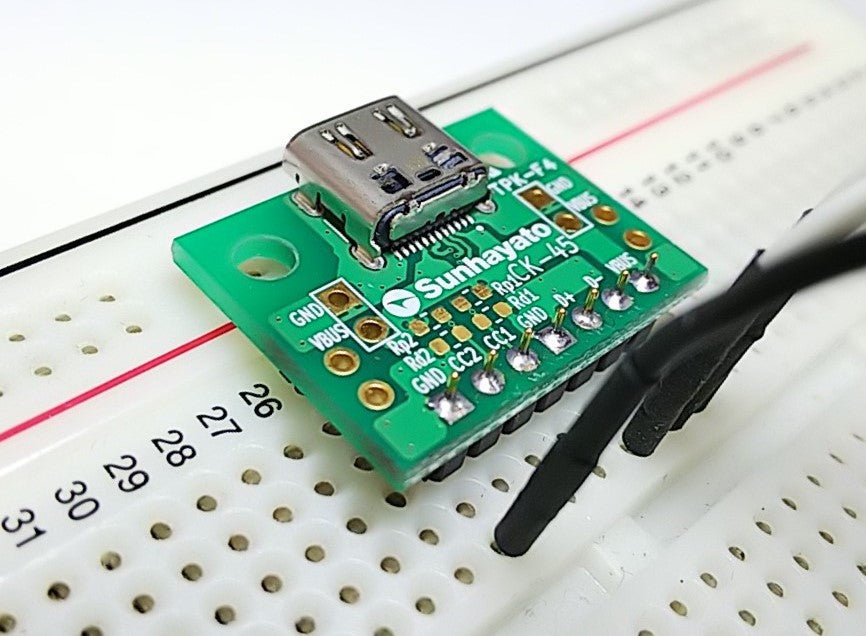

Converts the USB Type-C connector (female) to 2.54mm pitch. Separate it from the V-cut in the center and divide it into two parts. Connectors have been installed. The extracted signals have been reduced to a total of seven USB 2.0 standard four (VBUS, GND, D+, D-), CC1, CC2 terminals, and GND. VBUS and GND are our companyBreadboardIt is also possible to pull out the pattern that matches the power supply line. The CC1 and CC2 terminals can also be equipped with resistors (size 1608) used to determine the input/output direction.
Main specifications
- Model number
- CK-45
- RoHS Directive (10 Substances)
- correspondence
- Material types
- Glass Epoxy (FR-4)
- Double-sided / Single-sided
- Double-sided
- Body size

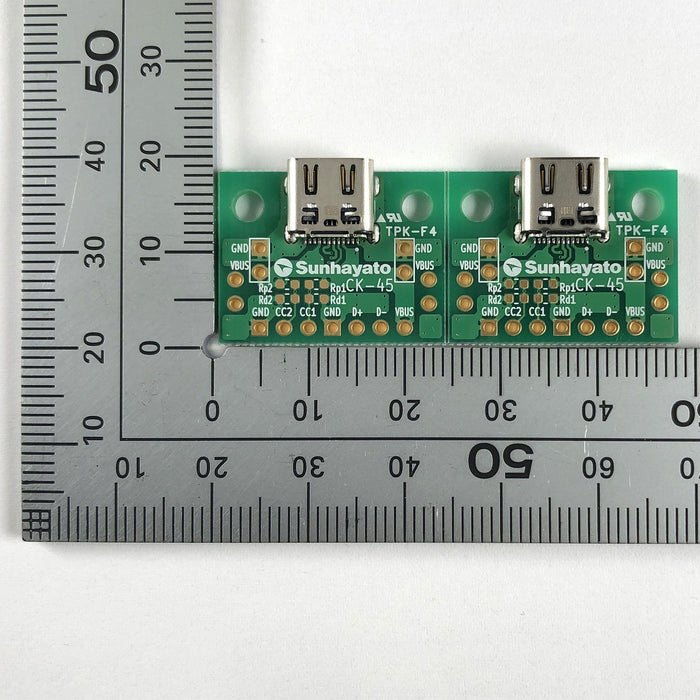

- 48.26 x 18.42 x 1.6t (mm)
- Quantity
- 1 (continued 2)
- After cutting size
- 24.13 x 18.42mm
- Product size (approx. including packaging)
- 75 x 85 x 5mm
- Weight (approx. including packaging)
- 5g
- JAN Code
- 4931442032457
- country of origin
- Japan
- Hole diameter
- Φ1.0
- Finishing treatment
- Through holes, gold flash, resist
- Pitch before Conversion
- USB Type-C (female)
- Pitch after Conversion
- 2.54mm
- Note
- Signal lines are USB 2.0 standard
- Connector name
- USB Type-C Connector
★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.
- Number of cases (boxes)
- 10 small boxes
- Small box size (approx.)
- 80 x 180 x 50 mm
- Small box weight (approx.)
- 85g
ck45
