Conversion board for USB (USB3.0 A type / female) (CK-38)

USB conversion board

• Universal Printed Circuits Boards
• Special Connector Conversion Boards
• RoHS compatible
• Glass Composite (CEM-3)
• Double-sided

Prices have been revised from August 1st, 2025.

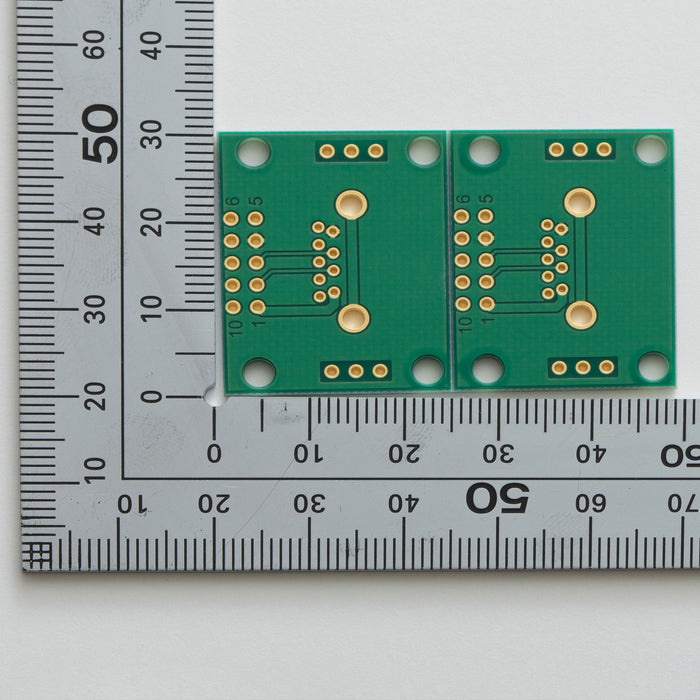

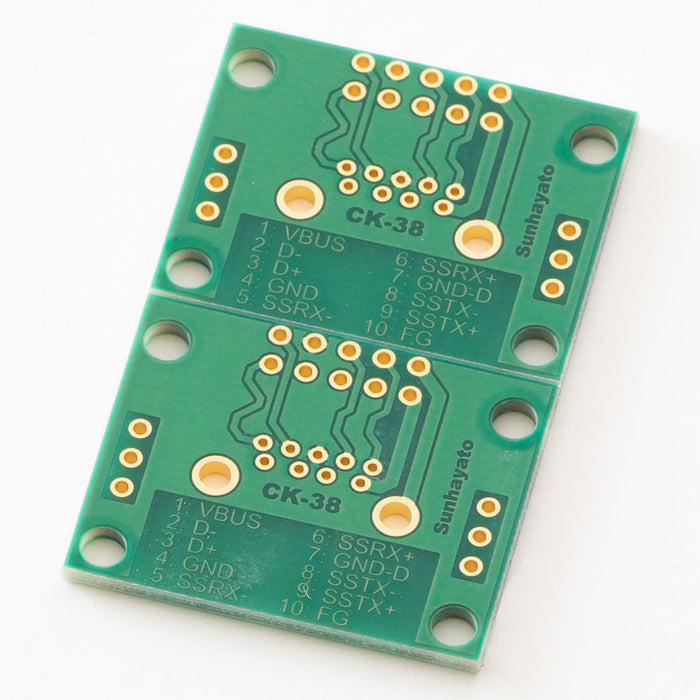

USB3.0 connector Converts type A (female) to 2.54mm pitch. Separate it from the V-cut in the center and divide it into two parts. The connector and pin header are included, so please use soldering.

Main specifications

Model number

CK-38

RoHS Directive (10 Substances)

correspondence

Material types

Glass Composite (CEM-3)

Double-sided / Single-sided

Double-sided

Body size

30.48 x 48.26 x 1.6t (mm)

Quantity

1 (continued 2)

After cutting size

30.48 x 24.13mm

Product size (approx. including packaging)

75 x 110 x 12 mm

Weight (approx. including packaging)

12g

JAN Code

4931442032389

country of origin

Japan

Hole diameter

Φ1.0

Finishing treatment

Through holes, gold flash plating, resist

Pitch before Conversion

USB A type (female)

Pitch after Conversion

2.54mm

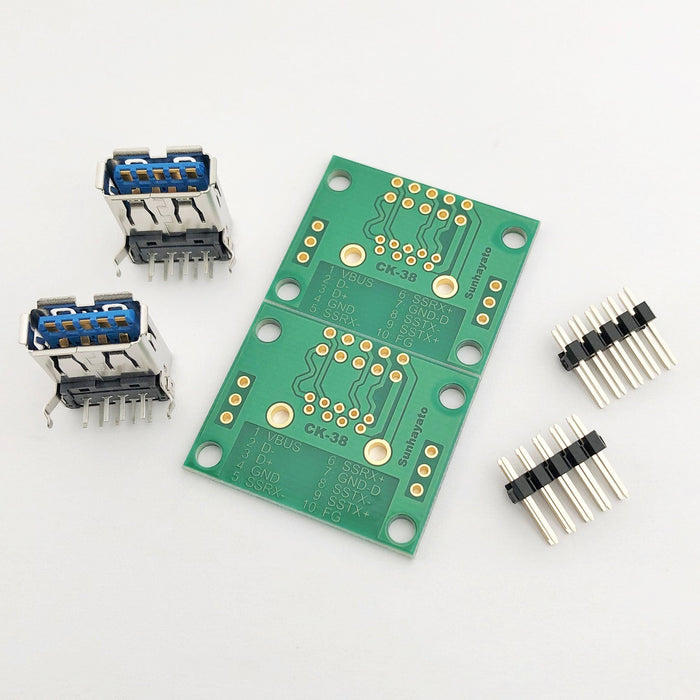

Accessories (set contents)

2 connectors, 2 pin headers (10 pins)

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

80 x 180 x 50 mm

Small box weight (approx.)

150g

ck38

Materials related to this product

• Detailed drawing of USB conversion board (USB3.0 Type A/female) (CK-38)
• RoHS warranty for USB conversion board (USB3.0 Type A/female) (CK-38)
