Conversion board for USB (USB Type-C/Female) (CK-44)
ネコポス対応
Original price
¥1,914
-
Original price
¥1,914
Original price
¥1,914
¥1,914
-
¥1,914
Current price
¥1,914
(Price including tax)
在庫数57
BreadboardBut easy to use shape
- Universal Printed Circuits Boards
- Special Connector Conversion Boards
- RoHS compatible
- Glass Epoxy (FR-4)
- Double-sided
Prices have been revised from August 1st, 2025.

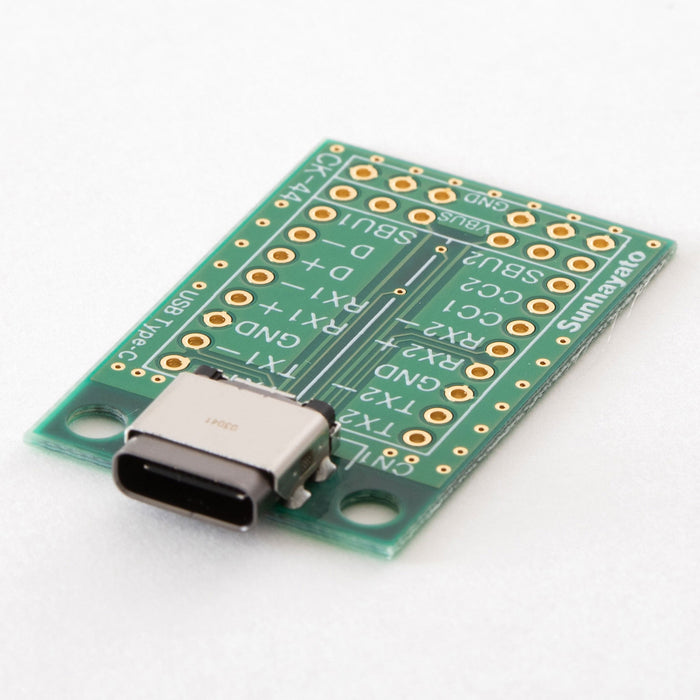

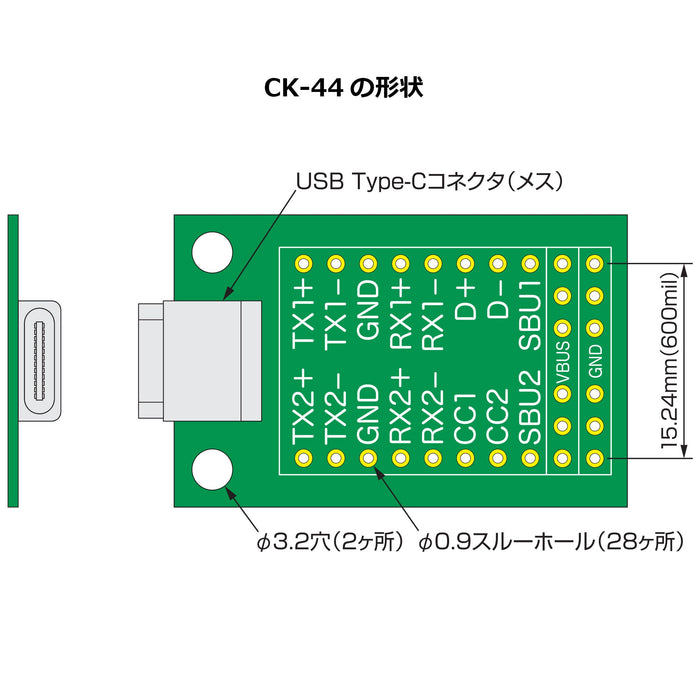

Converts USB Type-C (female) connectors to 2.54mm pitch. The USB Type-C connector signal is extracted at 1:1. We have six through holes for VBUS⇔GND pairs. The VBUS to GND can be used up to 5V/1A (total). The connector is already mounted.
Main specifications
- Model number
- CK-44
- RoHS Directive (10 Substances)
- correspondence
- Material types
- Glass Epoxy (FR-4)
- Double-sided / Single-sided
- Double-sided
- Body size
- 38.36 x 22.86 x 0.8t (mm)
- Quantity
- 1 piece
- Product size (approx. including packaging)
- 75 x 100 x 4 mm
- Weight (approx. including packaging)
- 3g
- JAN Code
- 4931442032440
- country of origin
- Japan
- Hole diameter
- Φ0.9
- Finishing treatment
- Through holes, gold flash plating, resist, parts interesting silk printing
- Pitch before Conversion
- USB Type-C (female)
- Pitch after Conversion
- 2.54mm
- Connector name
- USB Type-C Connector

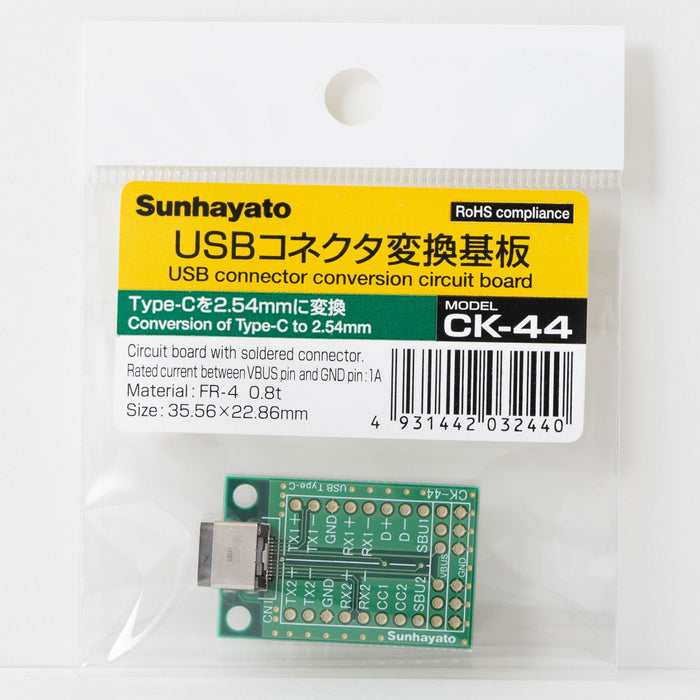

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.
- Number of cases (boxes)
- 10 small boxes
- Small box size (approx.)
- 80 x 180 x 50 mm
- Small box weight (approx.)
- 70g
