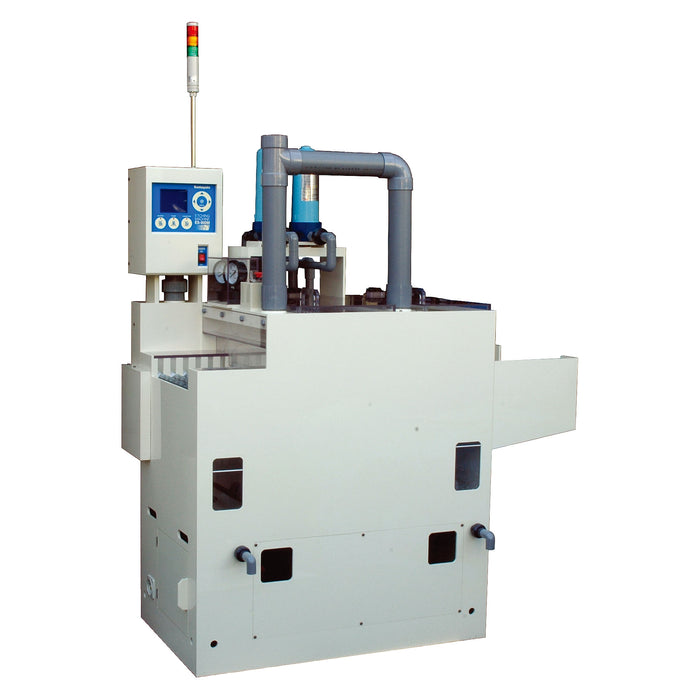

*Discontinued* Two-Tank Model Etching Machine (ES-850M)

• Discontinued

*Discontinued* Microprocessor-controlled from etching to rinsing

• Original PCB Production Tools
• Etching Machine
• Rigid PVC

Prices were revised effective August 1, 2025.

The two-tank system (etching tank + rinse tank) allows for immediate rinsing after etching. Since liquid temperature settings and conveyor speed are microprocessor-controlled, reproducibility under identical conditions is ensured.

The warranty period (including maintenance) will end 7 years from the delivery date or at the end of fiscal year 2028, whichever comes first.

There are no replacement or successor models available after sales end.

• *Discontinued* Learn more about the Two-Tank System Etching Machine (ES-850M)

Main Specifications

Model Number

ES-850M

Material types

Rigid PVC

Unit Dimensions

1,430 × 780 × 2,040 mm (includes signal lights; excludes exhaust gas treatment kit)

Quantity per Unit

1 unit

Unit Weight (excluding packaging)

Approx. 200 kg

JAN Code

4931442538041

Country of Origin

Japan

Accessories (Set Contents)

3 x 20L waste liquid collection tanks

Replacement Parts

Compact Scrubber: KS-8 (sold separately)

Note

Separate shipping charges apply for this product. The amount varies depending on the delivery region. Additionally, the listed price is for the unit only and does not include installation training fees or other costs.

Appearance

Ivory

Power Input

AC 100V 50/60Hz 1.6kVA

Etchable Board Dimensions

Minimum width: 100 mm, maximum width: 330 mm

Processing Steps

Loading → Etching → Wringing → Rinsing → Wringing

Maximum Processing Size

Width: 330 mm

Minimum processing length

100 mm

Conveyor Pitch

45 mm

Chamber Length

Etching tank: 360 mm (effective length 260 mm), Rinsing tank: 270 mm (effective length 170 mm)

Conveyor Speed

0.1–1.7 m/min (adjustable)

Maximum Etching Solution Volume

40 L

Maximum water volume in the rinse tank

20 L

Processing solution

Ferrous chloride solution (Sunhayato H-20L specification)

Liquid Temperature Setting Range

25–42°C

Liquid Temperature Display Range

0–50°C

Preheat Timer Setting

0.5–72 hours in 30-minute increments (2 patterns)

Etching Section Nozzle Header

3 nozzles (top and bottom)

Rinsing Section Nozzle Header

2 nozzles each on top and bottom

Etching Section Spray Nozzles

Flat nozzles: 12 each (top and bottom)

Rinsing section spray nozzles

Flat nozzles: 8 each on top and bottom

Etching section spray pressure

Max 0.17 MPa

Rinsing section spray pressure

Max 0.17 MPa

Etching solution filter

Sumitomo 3M Kyuno 1M1 Housing

Etching Solution Heater

Two 500 W titanium heaters

Drain valve

2 locations (1 for etching solution, 1 for rinse tank)

Safety Devices

Top cover interlock mechanism, emergency stop button, ground fault circuit interrupter (GFCI), liquid temperature sensor, liquid level sensor, pump/conveyor/heater failure detection
