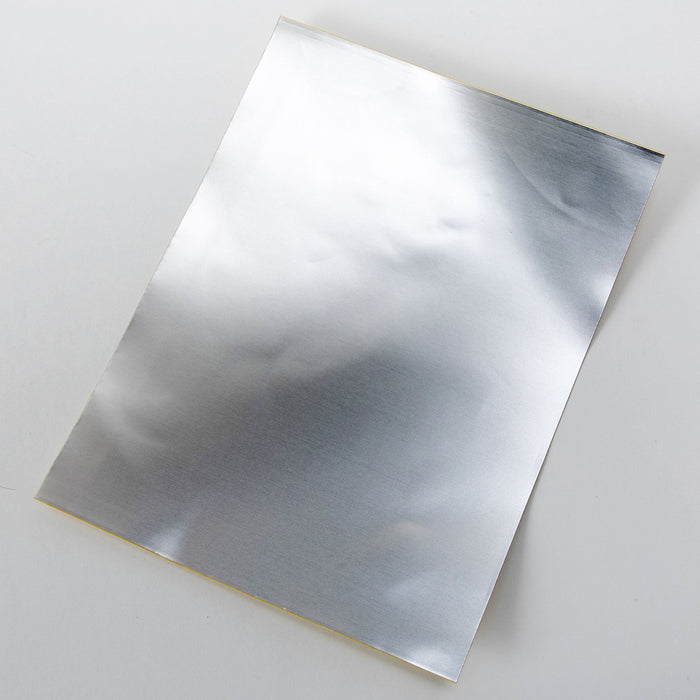

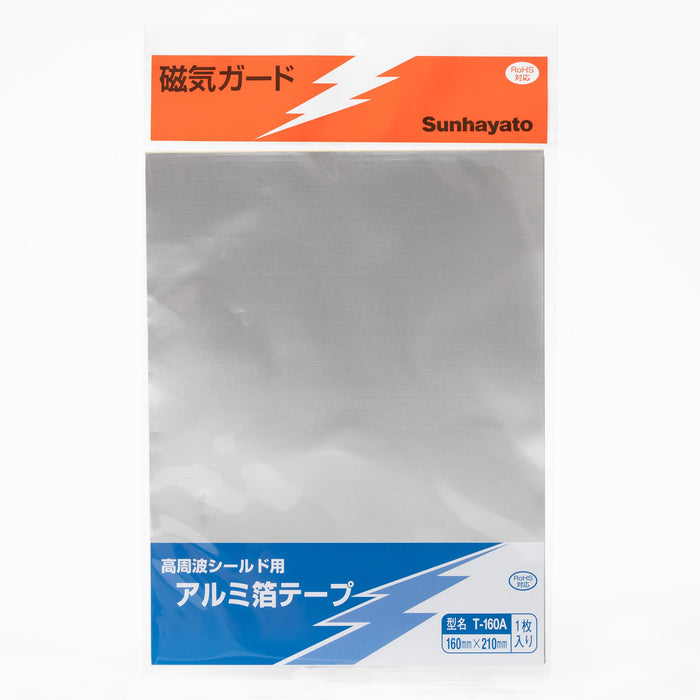

Magnetic Guard (Aluminum foil / 160 x 210 mm) (T-160A)

Adhesive aluminum foil sheet that can reduce noise effects just by applying it

• Jig and Tool
• Other tools
• RoHS compliant
• Aluminum foil

Prices have been revised effective July 1, 2023.

This metallic foil type is easy to process and can easily reduce noise effects. It has excellent adhesive retention and shows excellent adhesion to an extremely wide range of adherends. Effective as a shield/filter to attenuate radiated/intruding noise. Effective in reducing noise from cables, coils, and motors, as well as the effects of radio waves emitted from cell phones, etc.

Main Specifications

Model No.

T-160A

RoHS directive (10 substances)

Compliant

Material types

Aluminum foil

Body Size

160 x 210 x 0.08t (mm)

Quantity

1 sheet

Product size (including packaging, approx.)

170 x 280 x 2mm

Weight (including packaging, approx.)

26g

JAN code

4931442635603

Country of origin

Japan

Adhesive strength

2,000g/20(mm)

★Products are sold one at a time. Please refer to the following if you would like to consider the product by the case.

Number of cases (boxes)

10 pieces in a small box

Box size (approx.)

210 x 310 x 20 mm

Weight of small box (approx.)

370g

t160a

Materials related to this product

• RoHS Certificate for Magnetic Guard (Aluminum foil / 160 x 210 mm) (T-160A)
