Soldering examination practice board (10 pieces) (CT-VAL3X10)

For practicing "Level 3 Electronic Equipment Assembly (Electronic Equipment Assembly Work)"

• Educational Training Tools
• Soldering Skills Practice Products
• RoHS compatible
• Paper Phenolic (FR-1)

Prices have been revised from August 1st, 2025.

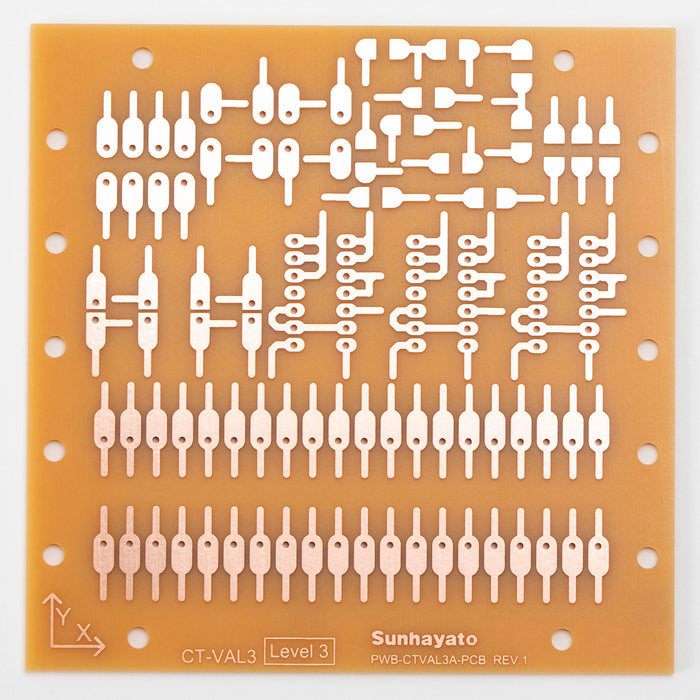

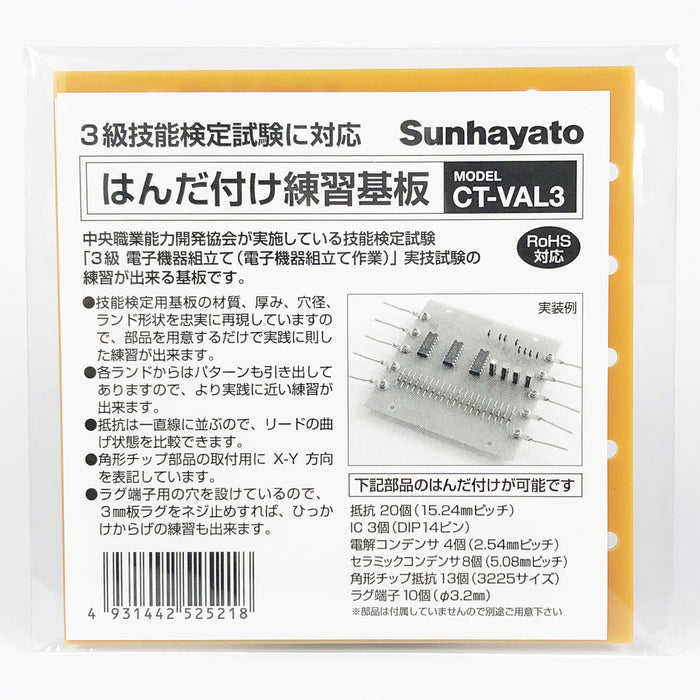

This is a set of 10 boards (MODEL: CT-VAL3) that allow you to practice the "Level 3 Electronic Equipment Assembly (Electronic Equipment Assembly Work)" skill certification test conducted by the Central Vocational Ability Development Association. Please prepare the parts separately. The board used in the testMaterial typesThe thickness, hole diameter, and land shape are faithfully reproduced, so you can practice in a practical way just by preparing the parts (target work time: 60-90 minutes).

Main specifications

Model number

CT-VAL3X10

RoHS Directive (10 Substances)

correspondence

Material types

Paper Phenolic (FR-1)

Body size

95 x 95 x 1.6t (mm)

Quantity

10 sheets

Product size (approx. including packaging)

110 x 110 x 20 mm

Weight (approx. including packaging)

240g

JAN Code

4931442525225

country of origin

Japan

Hole diameter

Board fixing holes (Φ3.2mm) x 4, board lug mounting holes (Φ3.2mm) x 10

Finishing treatment

Flux

Compatible products

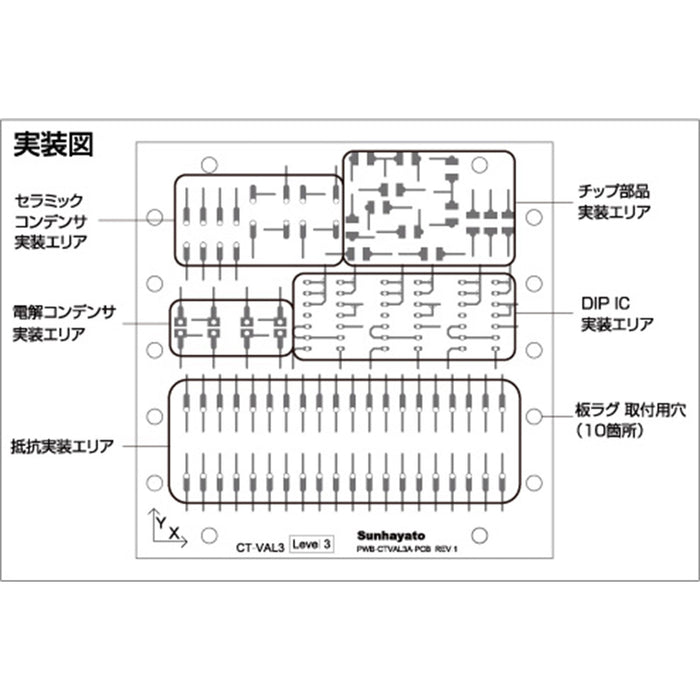

Resistance (15.24mm pitch) x 20, IC (14-pin DIP) x 3, electrolytic capacitors (2.54mm pitch) x 4, ceramic capacitors (5.08mm pitch) x 8, square chip resistors (3225 size) x 13, lug terminals (3.2Φmm) x 10

Note

If surface treatment flux is not necessary, wipe it off with a flux cleaner or something similar before use.
