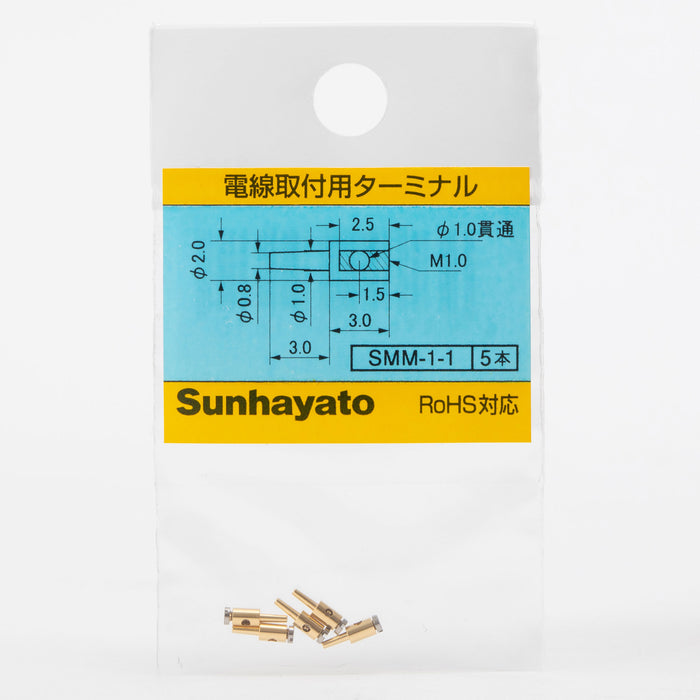

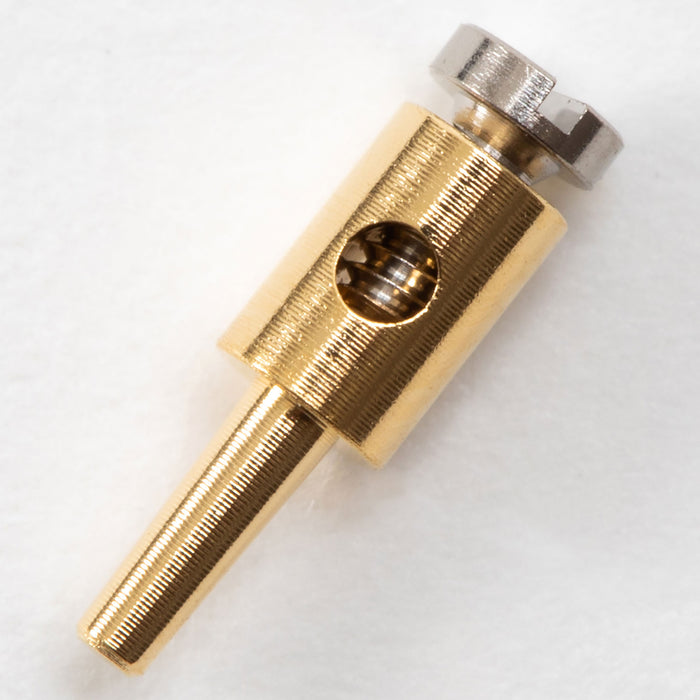

Compact wire-mounting terminal (SMM-1-1)

Compact wire-mounting terminals available in small lots of 5

• Accessories for PCB
• Small Terminals for Fixing Electric Wire
• RoHS compliant
• Brass / Gold plating on nickel base

Prices have been revised as of July 1, 2023.

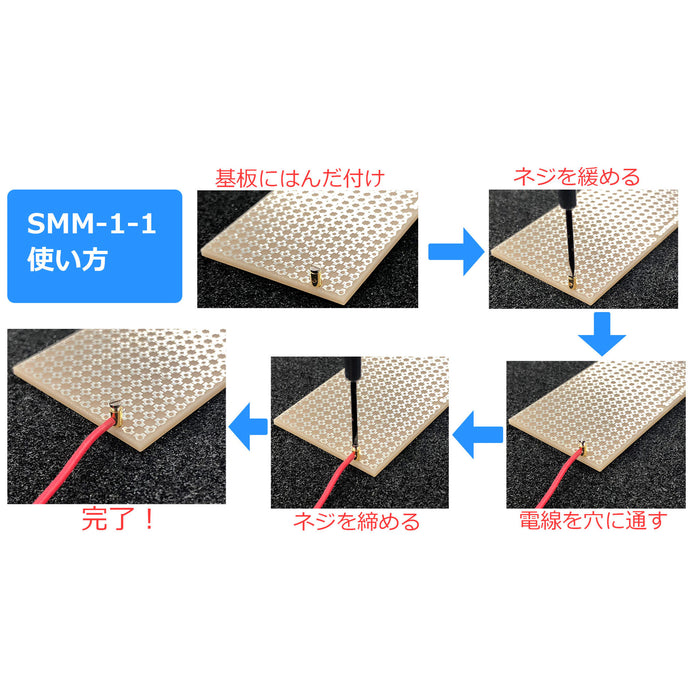

Used for attaching and removing wires of 0.8mmΦ or smaller to and from circuit boards. They can be mounted at a 2.54mm pitch, so they do not take up much space.

Main Specifications

Model No.

SMM-1-1

RoHS Directive (10 substances)

Compliant

Material types

Brass / Gold plating on nickel base

Quantity

5 pieces per bag

Product size (including packaging, approx.)

42 x 70 x 3 mm

Weight (including packaging, approx.)

2g

JAN code

4931442651610

Country of origin

Japan

Compatible Products

Board mounting hole diameter: Φ1.0mm, Applicable wire Φ0.8mm or less

Applicable coaxial cable

1.5C-2V

★Products are sold one at a time. Please refer to the following for case-by-case consideration.

Number of cases (boxes)

10 pieces in a small box (5 pieces per bag x 10 pieces)

Small box size (approx.)

50 x 92 x 20 mm

Weight of small box (approx.)

17g

smm11

Materials related to this product

• RoHS Warranty for Small Wire Mounting Terminals (SMM-1-1)
