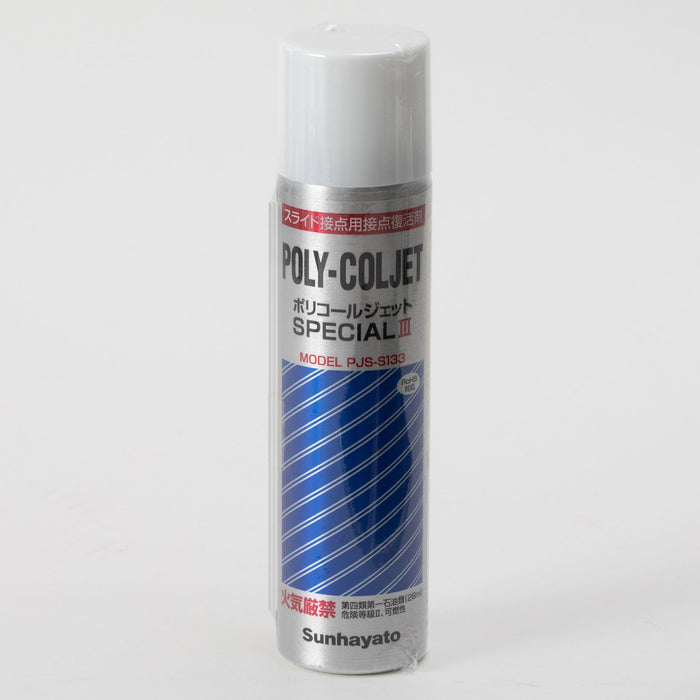

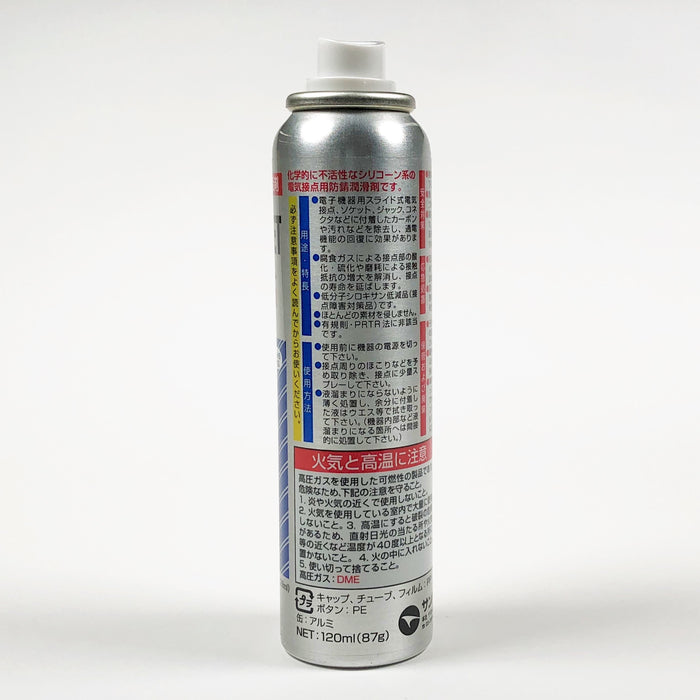

Poly-col jet specialⅢ(PJS-S133)
在庫数11
For restoring energizing function and reducing wear of electrical contacts
Prices have been revised effective July 1, 2023.
This is a silicone-based contact revival agent with excellent heat resistance. It removes carbon, dirt, and other contaminants from contacts and protects contacts of electrical equipment from oxidation and sulfurization. It prevents contact resistance from increasing due to contact wear, stabilizes contact resistance, and extends the life of contacts. It is a low-molecular-weight siloxane-reduced product (contact failure prevention product).
Main specifications
- Model No.
- PJS-S133
- RoHS Directive (10 substances)
- Compliant
- Quantity
- 1 piece
- NET
- 87g (120ml)
- Product size (including packaging, approx.)
- Φ41×170mm
- Weight (including packaging, approx.)
- 130g
- JAN code
- 4931442401208
- Country of origin
- Japan
- Ingredients
- Silicone oil, silica, additives
- Appearance
- Pale yellow, translucent
- Volume resistivity
- 1×1014Over Ω-cm
- Copper plate corrosion test
- Passed (100°C, 24h)
- Viscosity
- 9000 mPa-s
- Specific gravity
- 0.97
- Loss on heating
- 0.2wt% (150°C, 1h)
- Low molecular weight siloxane
- <200ppm (D)3~D10)
- Operating temperature range
- -40~150℃
- Flammability
- Flammability
- Injection gas
- DME
- Hazardous material and content under the Fire Service Act
- Class 4 Petroleum No. 1 (non-water soluble) 28ml
- Flash Point
- Less than -6℃ (methylcyclohexane)
- Odor
- Slight odor
★Products are sold one at a time. If you would like to consider a case-by-case basis, please see below.
- Number of cases (boxes)
- Small box of 10 pcs. / Large box of 100 pcs.
- Small box size (approx.)
- 95 x 220 x 180 mm
- Weight of small box (approx.)
- 1.4kg
- Large box size (approx.)
- 240 x 500 x 370mm
- Box weight (approx.)
- 15kg
