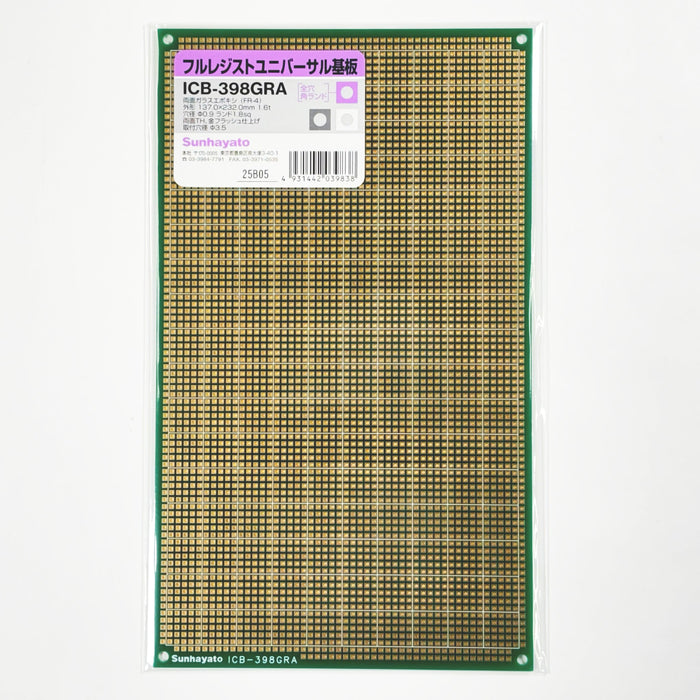

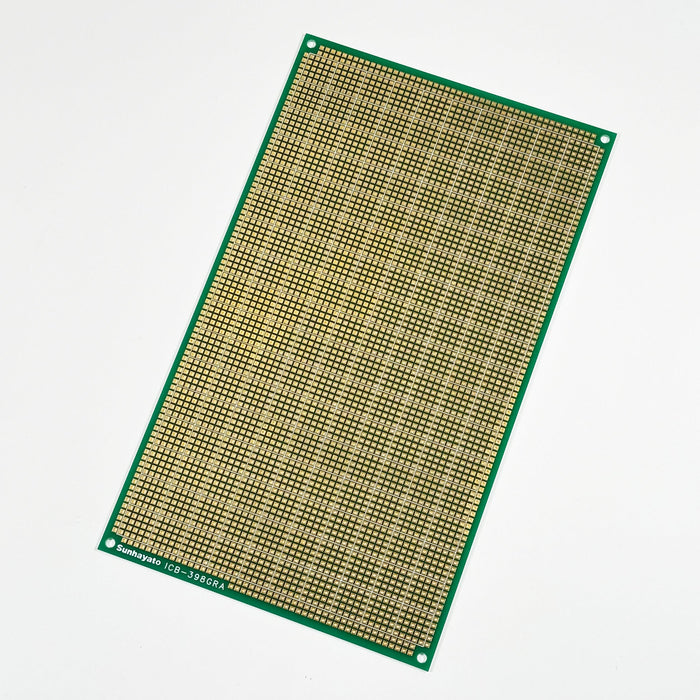

Universal PCB with resist coating(Green) (ICB-398GRA)

Gold flash plated finishDouble-sidedResistUniversal Printed Circuits Boards

• Universal Printed Circuits Boards
• Universal PCB with resist coating
• RoHS compatible
• Glass Epoxy (FR-4)
• Double-sided
• 2.54mm

Double-sided- Glass epoxy materialUniversal Printed Circuits Boardsis. The entire surface is treated with green resist, making it less likely to cause solder bridges than boards without resist treatment, and it also looks beautiful. The land is a corner land with gold flash plated finish.

Main specifications

Model number

ICB-398GRA

RoHS Directive (10 Substances)

correspondence

Material types

Glass Epoxy (FR-4)

Double-sided / Single-sided

Double-sided

Pitch

2.54mm

Body size

137 x 232 x 1.6t (mm)

Quantity

1 piece

Body weight (excluding packaging)

95g

Product size (approx. including packaging)

145 x 235 x 2mm

Weight (approx. including packaging)

100g

JAN Code

4931442039838

country of origin

Japan

Hole diameter

Φ0.9

Pattern Land Shape

Kakuland

Finishing treatment

Gold flash plating, through holes, resist (green), parts interesting silk printing

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

150 x 240 x 20 mm

Small box weight (approx.)

1.1kg
