Full-resist universal substrate (green) (ICB-398GR)

ネコポス対応
Original price ¥4,356 - Original price ¥4,356
Original price
¥4,356
¥4,356 - ¥4,356
Current price ¥4,356
(Prices include tax)

在庫数122

Double-sided board for easy soldering

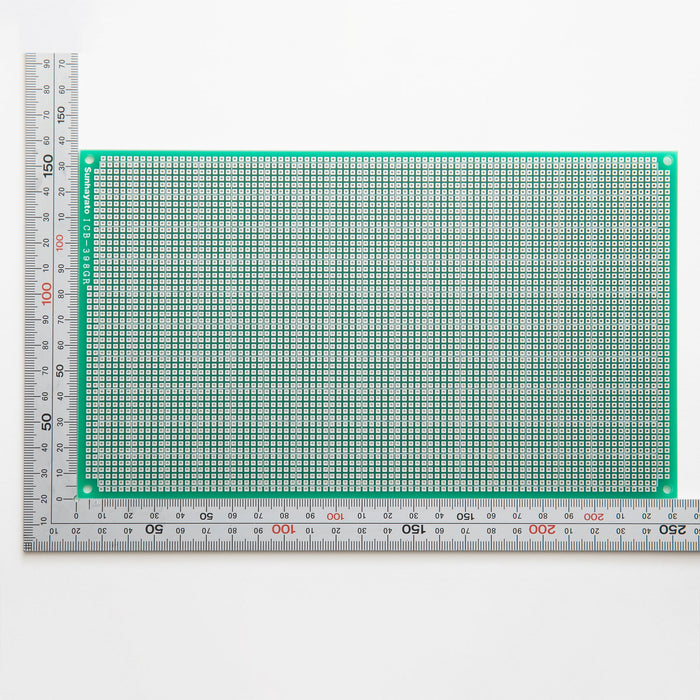

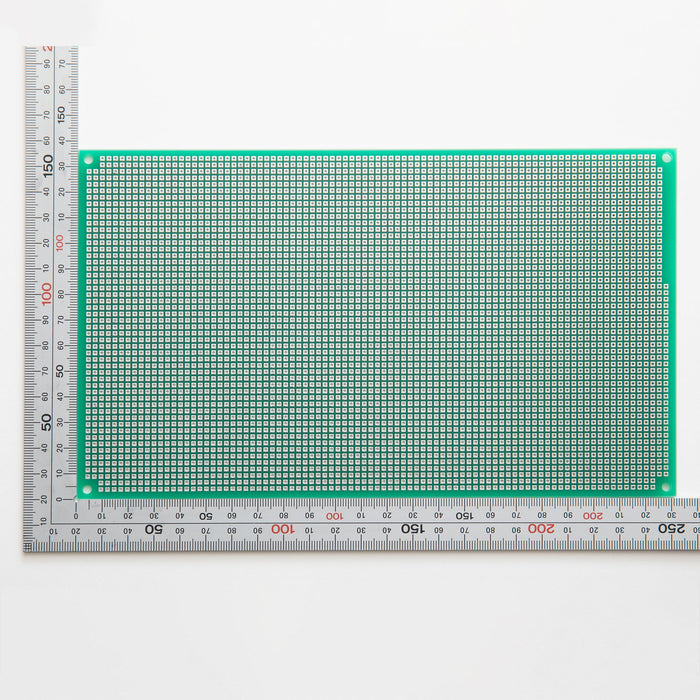

Double-sided, glass epoxy universal PCB. All surfaces are coated with green resist, making them less prone to solder bridging than boards without resist, and also more visually pleasing. The lands are square lands. Two color variations are available.See color variations

Main specifications

Model No.
ICB-398GR
Material types
Glass Epoxy (FR-4)
Double-sided / Single-sided
Double-sided
Pitch
2.54mm
Body size
137 x 232 x 1.6t (mm)
Quantity
1 piece
Product size (including packaging, approx.)
150 x 240 x 2mm
Weight (including packaging, approx.)
100g
JAN code
4931442039807
Country of origin
Japan
Hole diameter
0.9mm dia.
Pattern / Land shape
Square land
Finish Treatment
Through-hole, solder, resist (green), white silk printing on component surface

★Products are sold individually. Please refer to the following for case-by-case consideration.

Quantity per case (box)
10 pieces in a small box
Box size (approx.)
150 x 240 x 20 mm
Weight of small box (approx.)
1.1kg
