SOP IC converter board (1.27mm pitch / Max.28 pins) (ICB-010)

Converts narrow pitch SOPs to 2.54mm pitch (2 directions)

• Universal Printed Circuits Boards
• SOP IC Conversion Board
• Glass Epoxy (FR-4)
• Single-sided

Prices have been revised effective July 1, 2023.

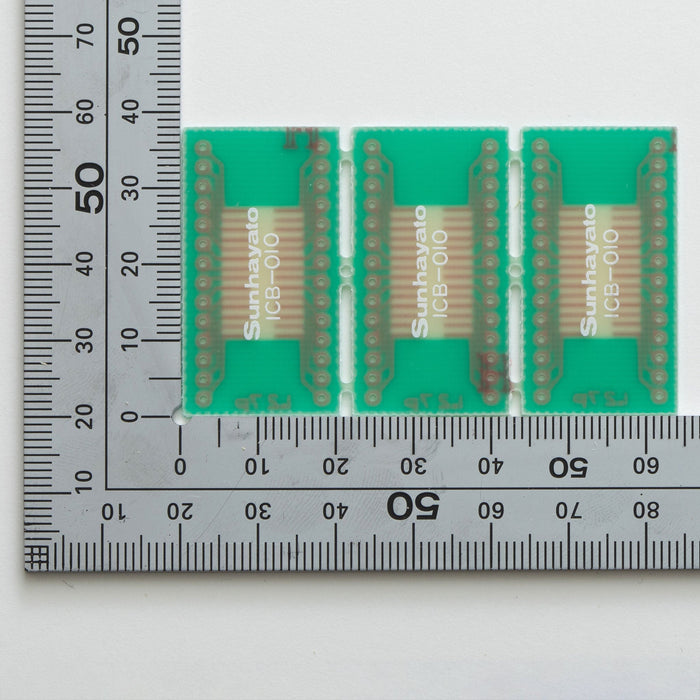

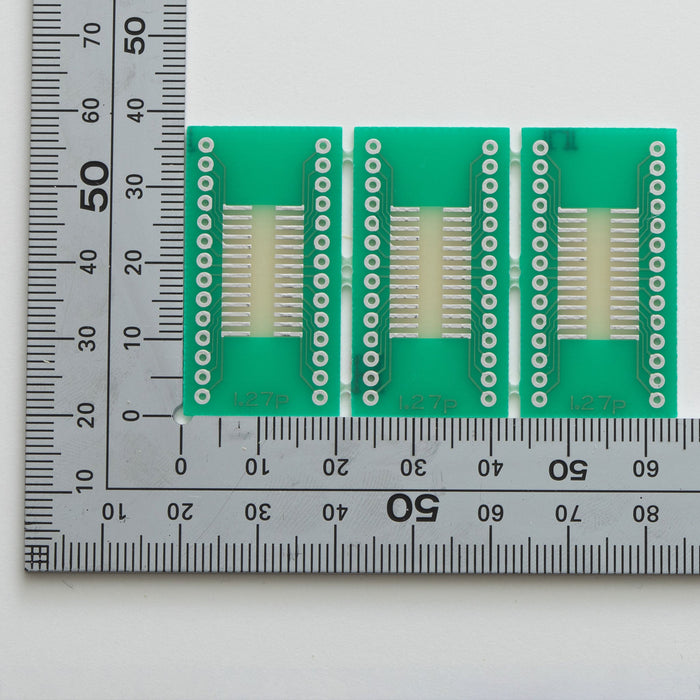

Converts 1.27mm pitch to 2.54mm pitch (2-way) single line, Max.28 pins compatible. 3 identical patterns on one board, divided into 3 parts.

Main specifications

Model No.

ICB-010

Material types

Glass Epoxy (FR-4)

Double-sided / Single-sided

Single-sided

Body size

38.1 x 62.96 x 1.0t (mm)

Number of pieces

1 piece (3 pieces in a row)

Size after cutting

38.1 x 20.32mm

Product size (including packaging, approx.)

43 x 66 x 2 mm

Weight (including packaging, approx.)

5g

JAN code

4931442000159

Country of origin

Japan

Hole diameter

0.9mm dia.

Finishing treatment

Solder, resist

Package before Conversion

SOP

Pitch before Conversion

1.27mm

Pitch after Conversion

2.54mm

Number of pins supported

Max.28 pins

★Products are sold one at a time. Please refer to the following for case-by-case consideration.

Number of cases (boxes)

10 pieces in a small box

Box size (approx.)

60 x 93 x 20 mm

Small box weight (approx.)

54g

icb010

Materials related to this product

• Detailed drawing of SOP IC Conversion Board (1.27mm pitch / Max.28 pins) (ICB-010)
