Laboratory DC Power Supply (DK-950)

Experimental DC Power Supply Capable of Outputting 8 Voltage Levels Using the Dropper Method

• Educational Training Tools
• Power Supplies for Experiments

Prices were revised effective August 1, 2025.

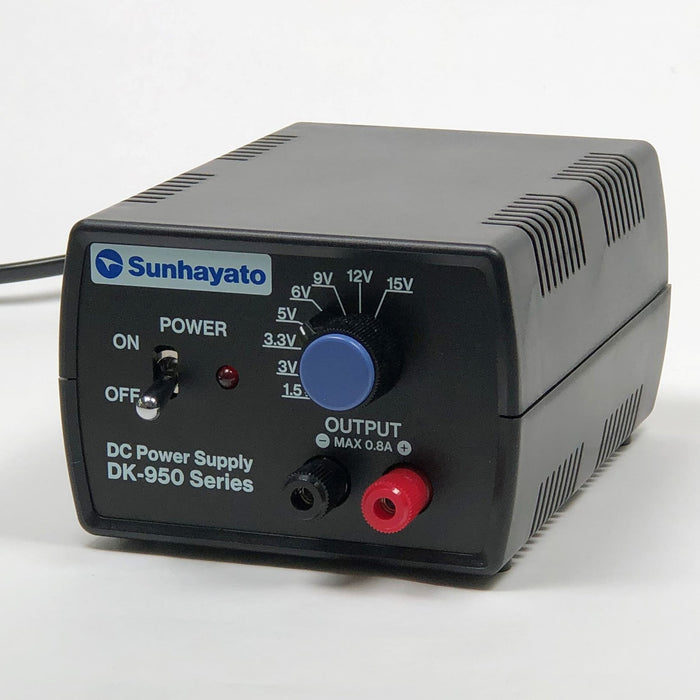

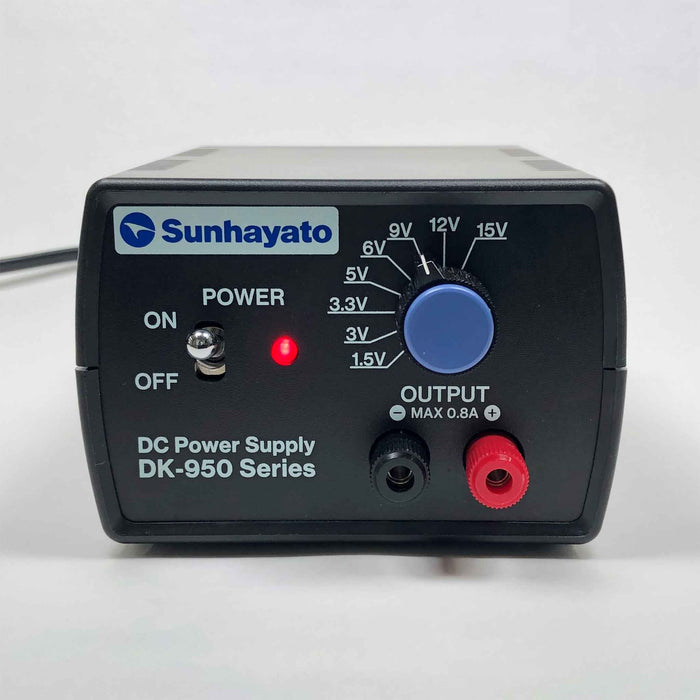

This compact DC power supply is ideal for experiments and hands-on training. It can also be used as a power supply for Breadboard or for electronics projects. Featuring a rotary selector that allows the output voltage to be adjusted in 8 steps from 1.5 to 15 V, it is suitable for a wide range of applications.

Main Specifications

Model Number

DK-950

Dimensions

110 × 140 × 77 mm (excluding protrusions)

Quantity per Package

1 unit

Unit Weight (excluding packaging)

1.1 kg

Product Dimensions (including packaging, approx.)

170 × 230 × 100 mm

Weight (including packaging, approx.)

1.4 kg

JAN Code

4931442646111

Country of Origin

Japan

Accessories (Set Contents)

Instruction Manual, Warranty Card

Compatible Products

SBP-500, WK-BB05, WK-BB05S

Rated Input Voltage

AC 100 V, 50/60 Hz

Rated Output Voltage

Selectable from 1.5V, 3V, 3.3V, 5V, 6V, 9V, 12V, or 15V (tolerance ±5%)

Maximum Output Current

0.8 A

Terminals

Banana plug: 4 mm diameter

dk950

Documents Related to This Product

• User Manual for the Laboratory DC Power Supply (DK-950)
