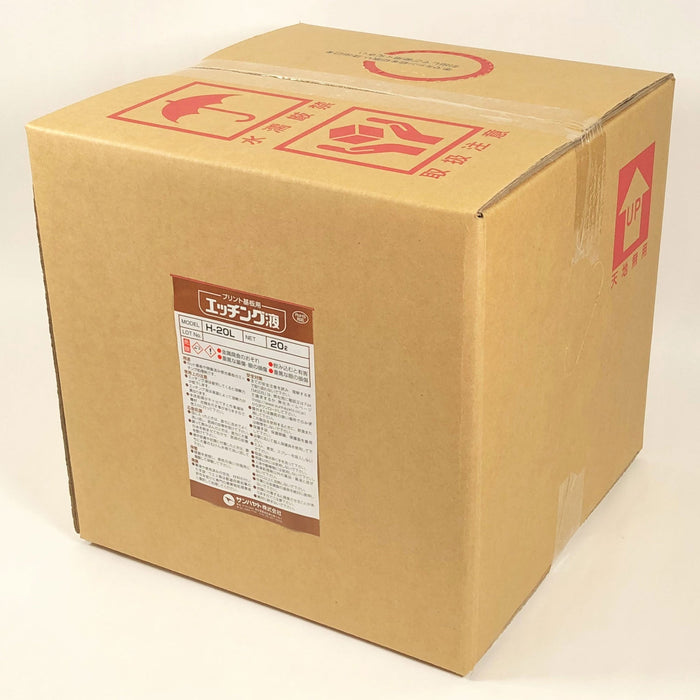

Etchant (20L) (H-20L)

For etching the copper foil surface of the substrate

• Original PCB Production Tools
• Etching Supplies
• RoHS compatible

Prices have been revised from August 1st, 2025.

This is an etching solution for copper foil used when fabricating a substrate. Easily etch your own board. 100 x 150 mm sizeSingle-sidedApproximately 300 boards can be processed. Waste liquid treatment agent and treatment bag are not included. There are three variations with different content.See variations of different content

Main specifications

Model number

H-20L

RoHS Directive (10 Substances)

correspondence

Quantity

1 piece

NET

27.5kg (20L)

Product size (approx. including packaging)

300 x 300 x 300 mm

Weight (approx. including packaging)

29kg

JAN Code

4931442482009

country of origin

Japan

Note

Waste liquid treatment agent and treatment bag are not included.

Main ingredients

Ferric chloride

exterior

Dark brown liquid

Liquid (pH)

Acidic (<1)

specific gravity

1.384（15℃）

Whether or not flammable

Non-flammable

Hazardous materials and content under the Fire Service Act

Not applicable

flash point

none

boiling point

107.3℃

Melting point

-32℃

Odor

Slightly hydrochloric acid smell

h20l

Materials related to this product

• SDS (Safety Data Sheet) of Etching Solution (20L) (H-20L)
• Instruction manual for Etching Solution (20L) (H-20L)
• RoHS warranty for etching solution (20L) (H-20L)
