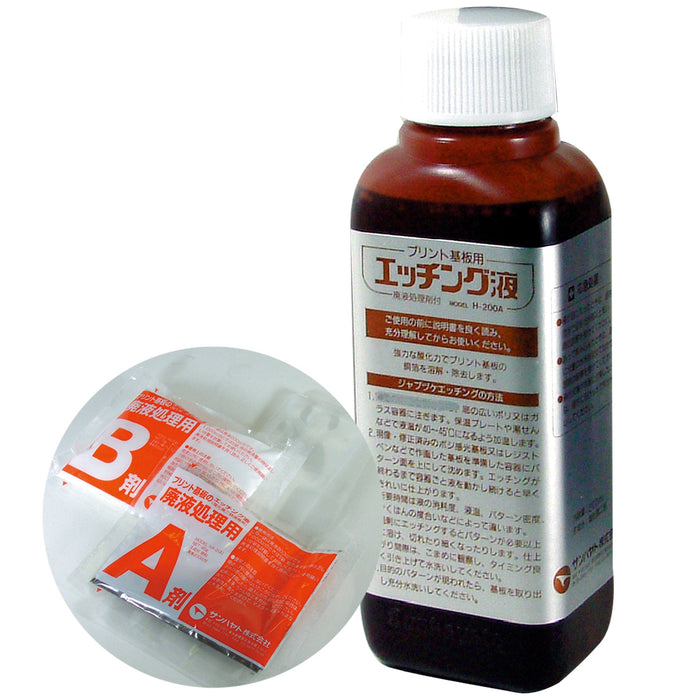

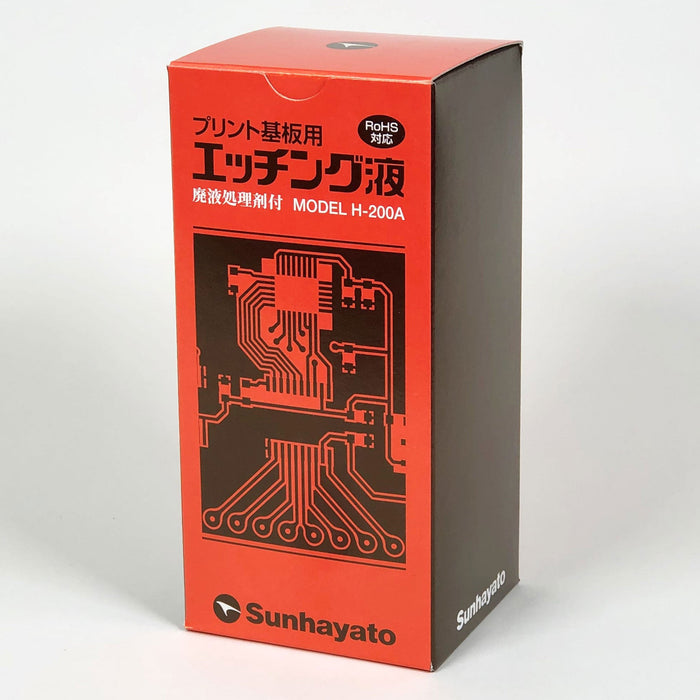

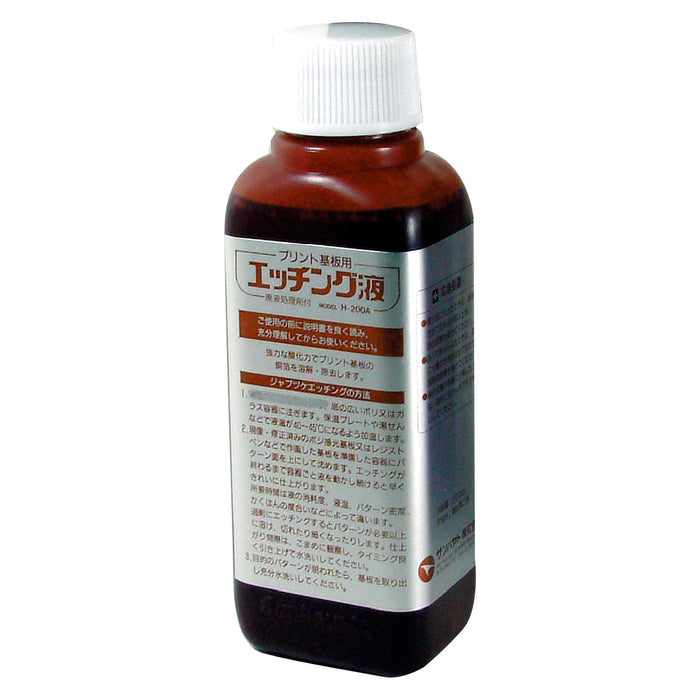

Etchant (200ml) (H-200A)

For etching the copper foil surface of the substrate

• Original PCB Production Tools
• Etching Supplies
• RoHS compatible

Prices have been revised from August 1st, 2025.

This is an etching solution for copper foil used when fabricating a substrate. Easily etch your own board. 100 x 150 mm sizeSingle-sidedApproximately 3 boards can be processed. Comes with waste liquid treatment agent. There are three variations with different content.See variations of different content

Main specifications

Model number

H-200A

RoHS Directive (10 Substances)

correspondence

Quantity

1 piece

NET

270g (200ml)

Product size (approx. including packaging)

70 x 65 x 150 mm

Weight (approx. including packaging)

480g

JAN Code

4931442482108

country of origin

Japan

Accessories (set contents)

Waste liquid treatment instructions, Waste liquid treatment agent: 1 set of HX-3, small plastic bag: 1 HX-BS

Main ingredients

Ferric chloride

exterior

Dark brown liquid

Liquid (pH)

Acidic (<1)

specific gravity

1.384（15℃）

Whether or not flammable

Non-flammable

Hazardous materials and content under the Fire Service Act

Not applicable

flash point

none

boiling point

107.3℃

Melting point

-32℃

Odor

Slightly hydrochloric acid smell

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

340×170×160

Small box weight (approx.)

5.0Kg

h200a

Materials related to this product

• SDS (Safety Data Sheet) of Etching Solution (200ml) (H-200A)
• Instruction manual for Etching Solution (200ml) (H-200A)
• RoHS warranty for Etching Solution (200ml) (H-200A)
