Signal Separator Module (CT-311S-M01)

Optional module for CT-311S-P02

• Educational Training Tools
• IC Trainers

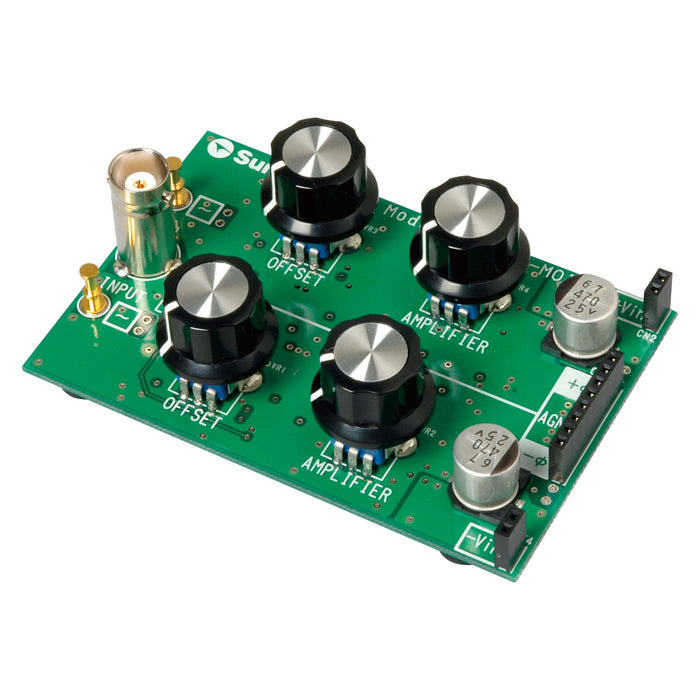

Inserted between the function generator and the experimental circuit, this module isolates the signals. It also protects the function generator outputs in case the user makes a mistake in connecting the signals. Match the function generator signal to the power supply system of the experimental circuit. The forward and inverted outputs of the input signal can be output at the same time. The VR on the module can convert the OFFSET voltage and amplitude of the input signal.

Main specifications

Model No.

CT-311S-M01

Main unit size

Substrate: 86 x 57 mm

Number of pieces

1 piece

Product size (including packaging, approx.)

80 x 180 x 50 mm

Weight (including packaging, approx.)

86g

JAN code

4931442526277

Country of origin

Japan

Accessories (Contents of set)

Instruction Manual, Warranty Card

Storage temperature range

0 to 50°C (with no condensation)

Operating temperature range

5 to 40°C (no condensation)

Input power supply

3 to 30V

Power input

Socket for jumper wire (can be connected from CT-311S)

Output voltage

30Vpp (max) with 10Vpp as reference

Output current

20mA (max)

Interface

BNC connector or input terminal

Output

Socket for jumper wire

Input impedance

50Ω

Input signal

1 to 10Vpp (max) lamp allows confirmation of minimum input level.

Signal output

30Vpp (max) with 10Vpp as reference

Signal output voltage

Within supply voltage

Signal output current

20mA (max)

Signal output phase

Φ phase, -Φ phase (relative to AGND)
