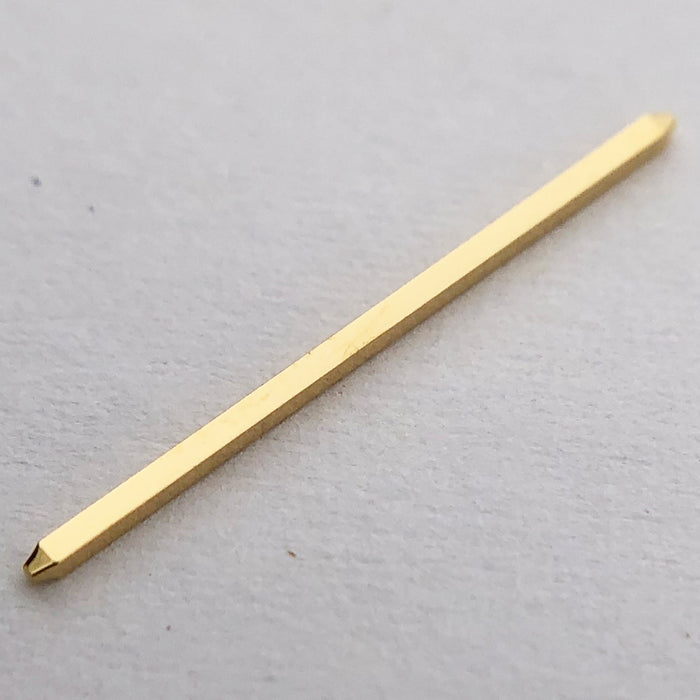

Check terminal for wrapping (SWK-17)

Check terminals available in small lots of 20

• Accessories for PCB
• Checker Terminals for Wrapping
• RoHS compliant
• Φ0.635mm phosphor bronze / gold plating on nickel base

Price has been revised as of July 1, 2023.

Ideal for wrapping posts. Lapping after soldering to the pattern. Can be applied as a check terminal in addition to wrapping.

Main specifications

Model No.

SWK-17

RoHS directive (10 substances)

Compliant

Material types

Φ0.635mm phosphor bronze / gold plating on nickel base

Body size

Total length: 17mm

Number of pieces

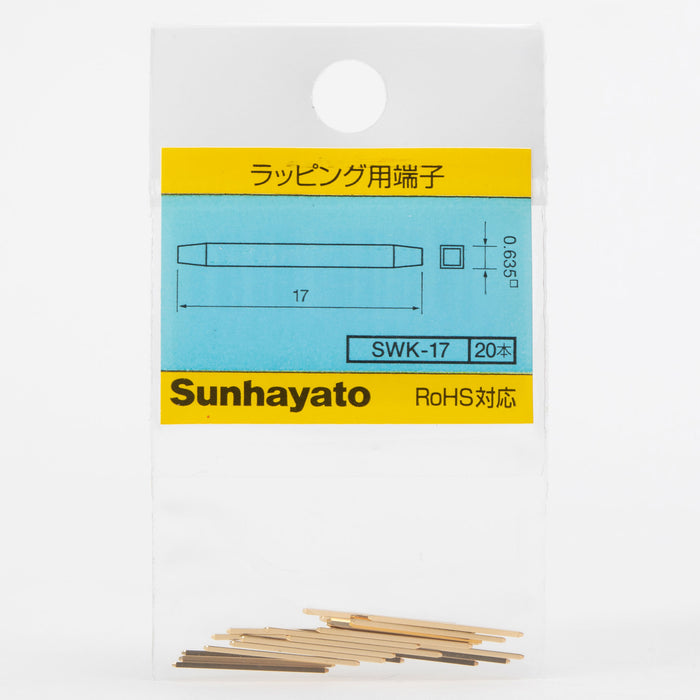

20 pieces per bag

Product size (including packaging, approx.)

42 x 70 x 2 mm

Weight (including packaging, approx.)

2g

JAN code

4931442650613

Country of origin

Japan

Compatible Products

Substrate mounting hole diameter: 1.0 mm dia.

★Products are sold one at a time. Please refer to the following for case-by-case consideration.

Number of cases (boxes)

10 pieces in a small box (20 pieces per bag x 10 pieces)

Small box size (approx.)

50 x 92 x 20 mm

Small box weight (approx.)

24g

swk17

Materials related to this product

• RoHS Warranty for Wrapping Check Terminals (SWK-17)
