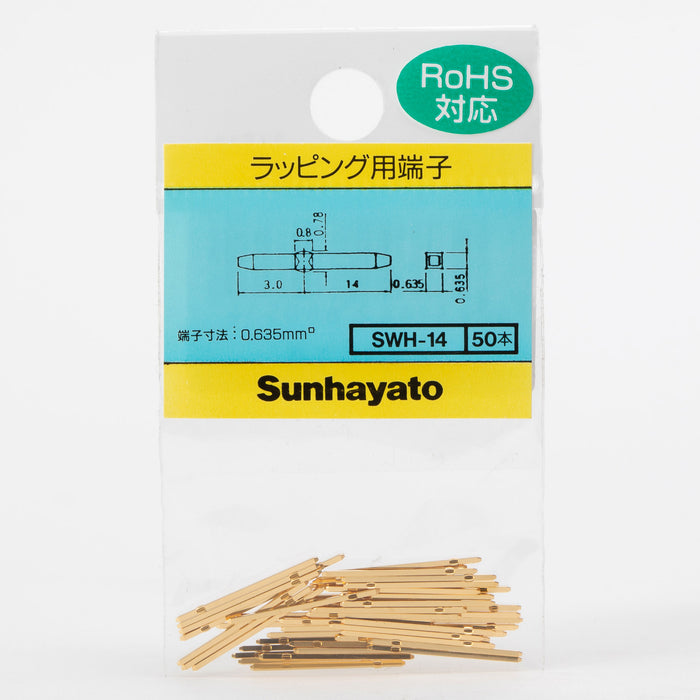

Check terminal for wrapping (SWH-14)

Check terminals available in small lots of 50

• Accessories for PCB
• Checker Terminals for Wrapping
• RoHS compliant
• Φ0.635mm phosphor bronze / gold plating on nickel base

Price has been revised as of July 1, 2023.

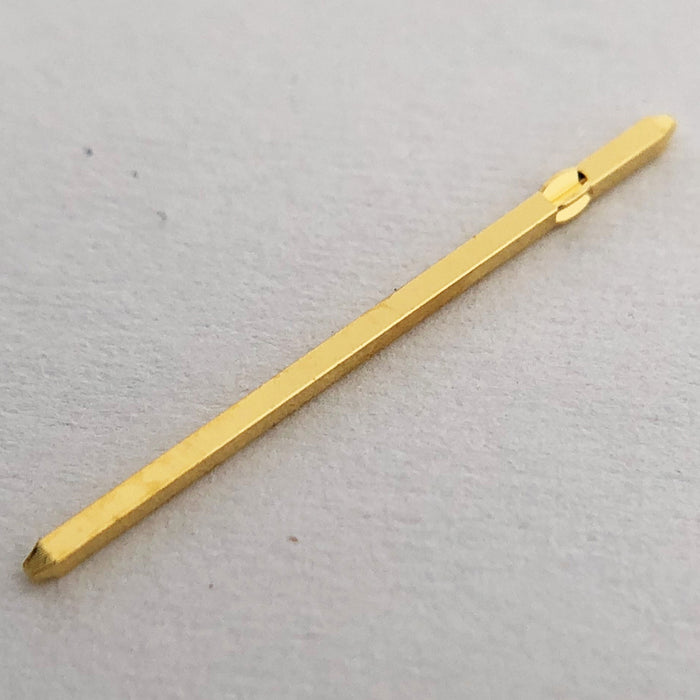

Ideal for wrapping posts. Wrapping after soldering to the pattern. Easy to work with because it has a click and can be fixed at the same height.

Main specifications

Model No.

SWH-14

RoHS Directive (10 substances)

Compliant

Material types

Φ0.635mm phosphor bronze / gold plating on nickel base

Body size

Total length: 17mm

Number of pieces

50 pieces per bag

Product size (including packaging, approx.)

42 x 70 x 3 mm

Weight (including packaging, approx.)

4g

JAN code

4931442650514

Country of origin

Japan

Compatible Products

Substrate mounting hole diameter: 1.0 mm dia.

★Products are sold one at a time. Please refer to the following for case-by-case consideration.

Number of cases (boxes)

10 pieces in a small box (50 pieces per bag x 10 pieces)

Small box size (approx.)

50 x 92 x 20 mm

Small box weight (approx.)

42g

swh14

Materials related to this product

• RoHS Warranty for Wrapping Check Terminals (SWH-14)
