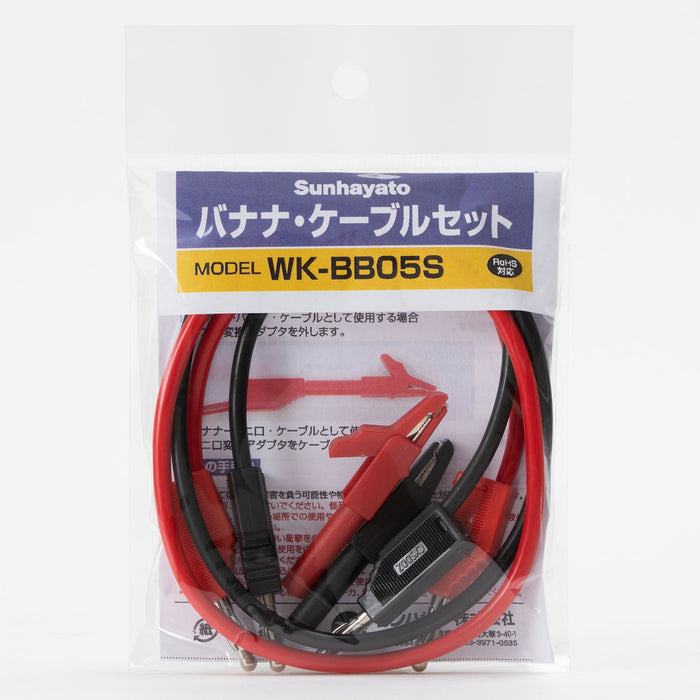

Banana Cable Set (WK-BB05S)

Banana cable set with current of 12A

• Educational Training Tools
• Option Cables for Experiment
• RoHS compatible
• Metal parts: brass/nickel plating, cable parts cotton material: PVC/resin parts: PP (banana plug)/ABS (crocodile conversion)

Prices have been revised from August 1st, 2025.

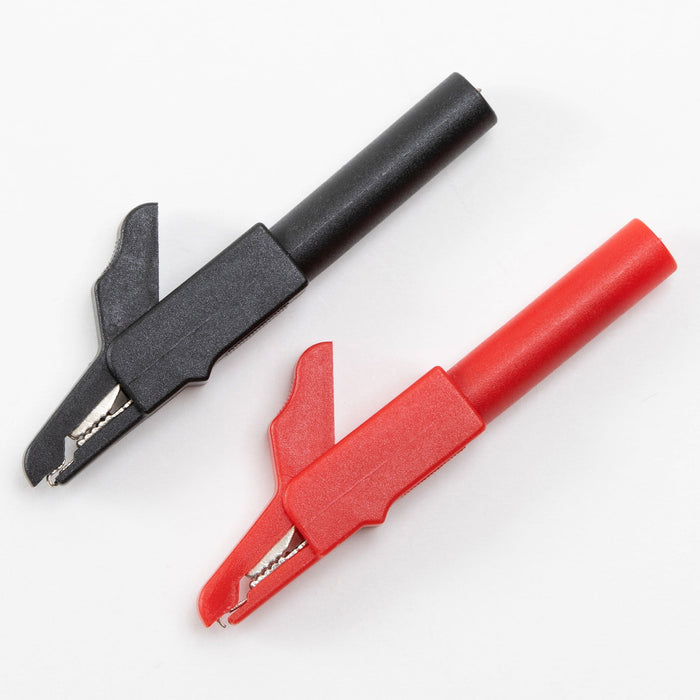

A crocodile opening can be attached to the end of the banana plug, so this set can be used in both ways: banana ←→ banana cables, and banana ←→ crocodile openings and cables. The cable supports a current of 12A. It brings out the maximum performance of the experimental DC variable power supply DK-3050U. Banana connectors can be daisy chained. Each end contains a banana connector cable and one crocodile conversion adapter, both red and black.

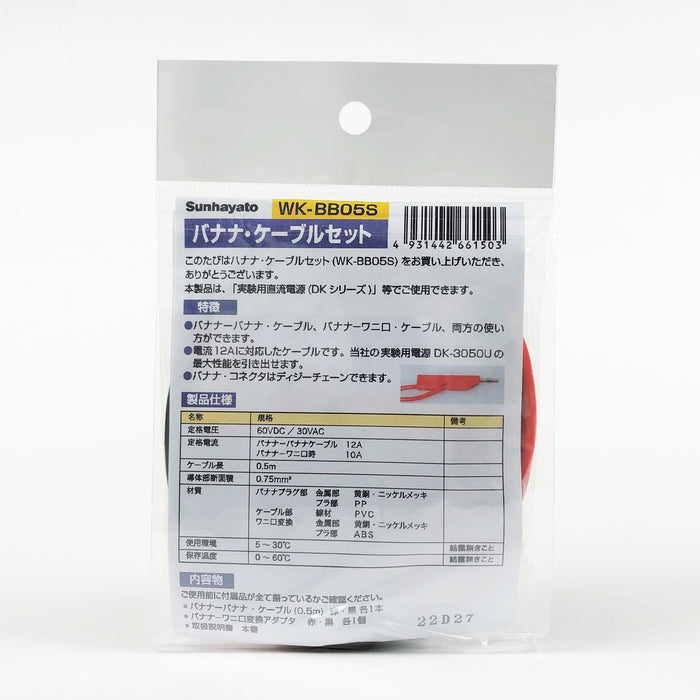

Main specifications

Model number

WK-BB05S

RoHS Directive (10 Substances)

correspondence

Material types

Metal parts: brass/nickel plating, cable parts cotton material: PVC/resin parts: PP (banana plug)/ABS (crocodile conversion)

Quantity

1 set (1 red and black x 1 each)

Product size (approx. including packaging)

100 x 150 x 15mm

Weight (approx. including packaging)

54g

JAN Code

4931442661503

country of origin

China

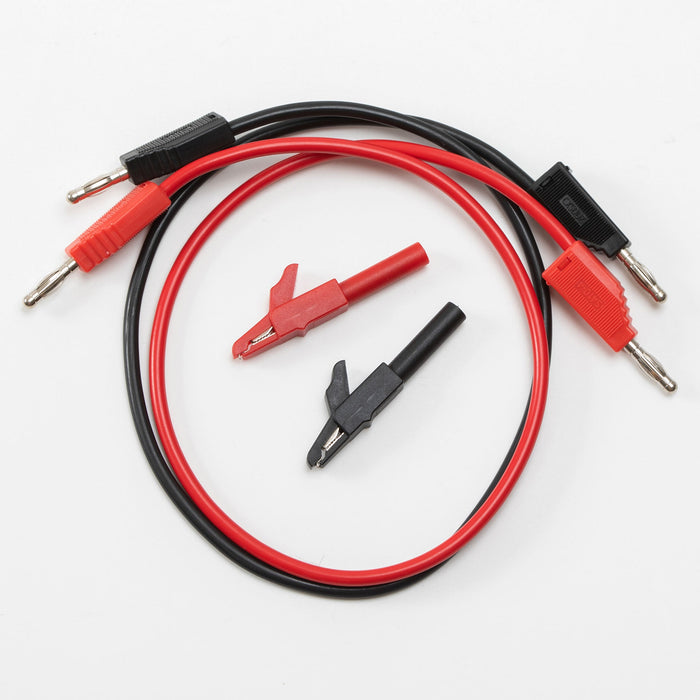

Accessories (set contents)

Instruction manual, banana-banana cable (1 each of red and black), banana-crocodile conversion adapter (1 each of red and black)

Storage temperature range

0-60°C (no condensation)

Operating temperature range

5-30°C (no condensation)

Rated voltage

60VDC/30VAC

Rated current

Banana ⇔ banana cable: 12A, Banana ⇔ crocodile: 10A

conductor

Cross-sectional area: 0.75mm²

length

0.5m

Terminals

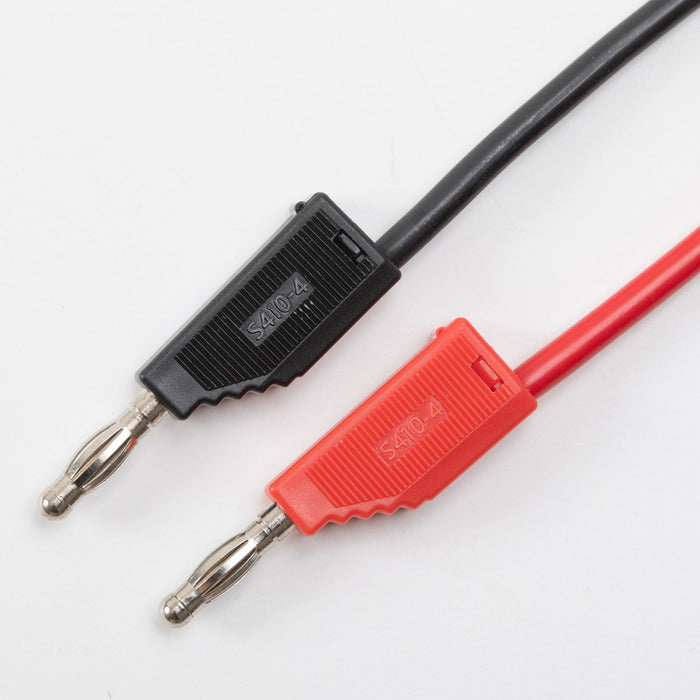

Banana plug: Φ4mm

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes (1 set x 10)

Small box size (approx.)

110 x 240 x 180 mm

Small box weight (approx.)

640g

wkbb05s

Materials related to this product

• RoHS warranty for Banana Cable Set (WK-BB05S)
