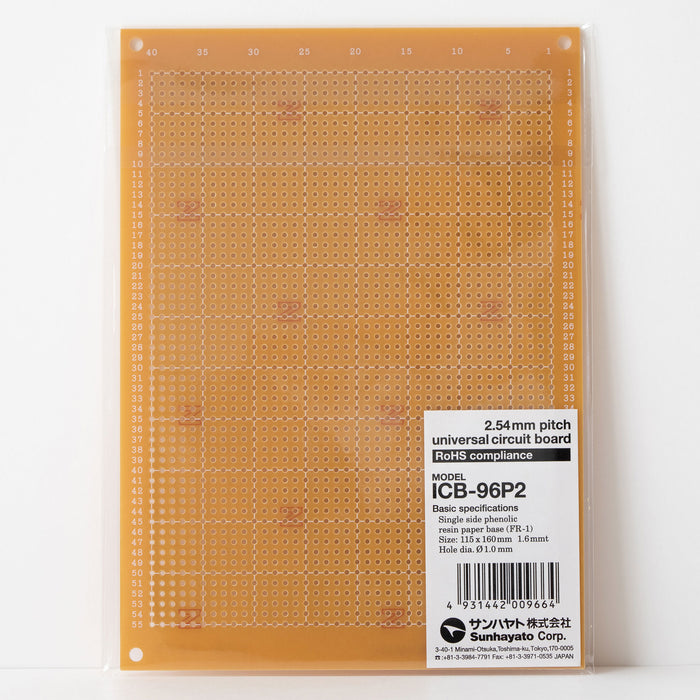

*While supplies last* Universal Printed Circuits Boards (Paper phenolic Single-sided / 115 × 160 × 1.6t) (ICB-96P2)

*While supplies last* Easy-to-use standard size

• Universal Printed Circuits Boards
• Universal Printed Circuits Boards
• RoHS Compliant
• Paper Phenolic (FR-1)
• Single-sided
• 2.54 mm

Prices were revised effective August 1, 2025.

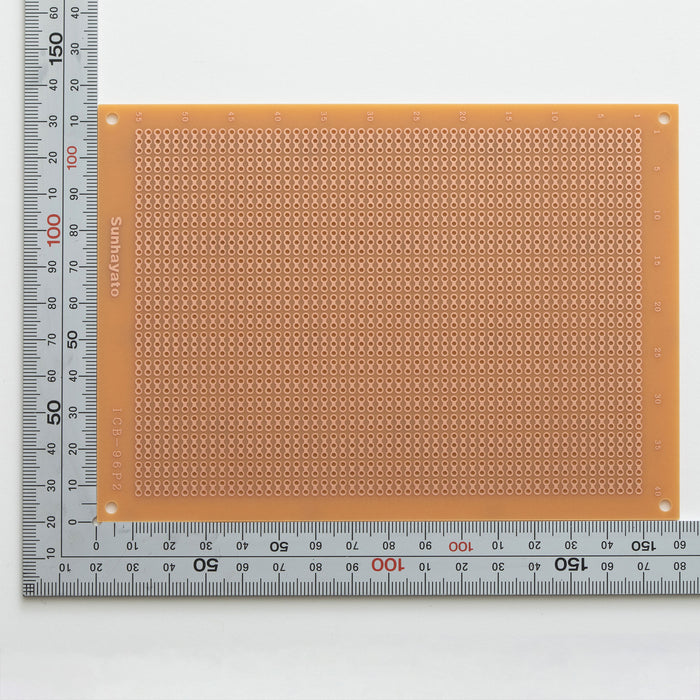

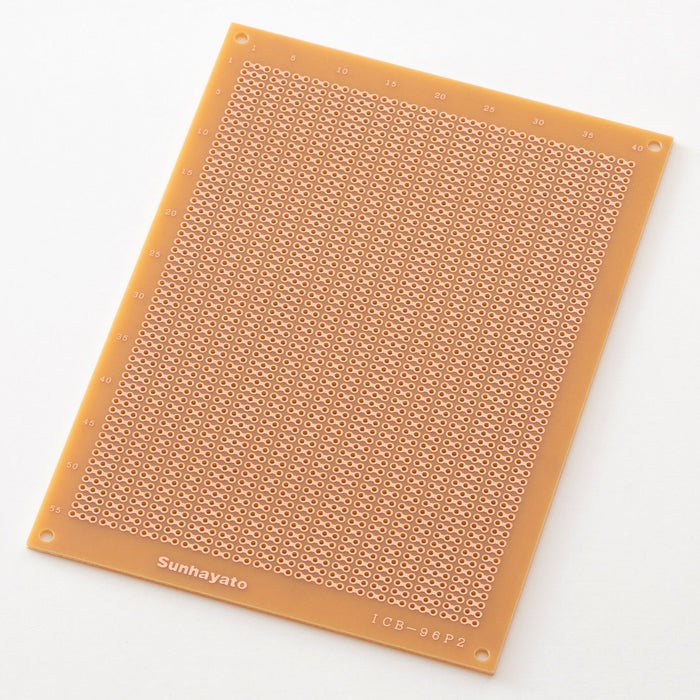

Single-sided・This is Universal Printed Circuits Boards made of paper-phenolic material. It features a fully connected dot pattern.

There are no replacements or successor products available after sales end.

Main Specifications

Model Number

ICB-96P2

RoHS Directive (10 Substances)

Compliant

Material types

Paper Phenolic (FR-1)

Double-sided / Single-sided

Single-sided

Pitch

2.54 mm

Unit Dimensions

115 × 160 × 1.6t (mm)

Quantity per pack

1 sheet

Product Dimensions (including packaging, approx.)

130 × 170 × 2 mm

Weight (including packaging, approx.)

36 g

JAN Code

4931442009664

Country of Origin

Japan

Hole Diameter

Φ1.0

Pattern/Land Shape

IC Interconnect Dot Pattern

Finish

Flux, component-colored silk screen printing

★Items are sold individually. If you are considering purchasing by case, please refer to the information below.

Quantity per Case (Box)

Small box: 10 pieces

Small Box Dimensions (approx.)

125 × 165 × 20 mm

Small box weight (approx.)

390 g
