Universal circuit board with terminals (paper phenol, both sides/115 x 155 x 1.6t) (ICB-95R)

Substrate with terminals of deep-rooted popularity

• Universal Printed Circuits Boards
• Universal PCB with terminals
• RoHS compliant
• Paper Phenolic (FR-1)
• Double-sided
• 2.54mm

Prices have been revised effective July 1, 2023.

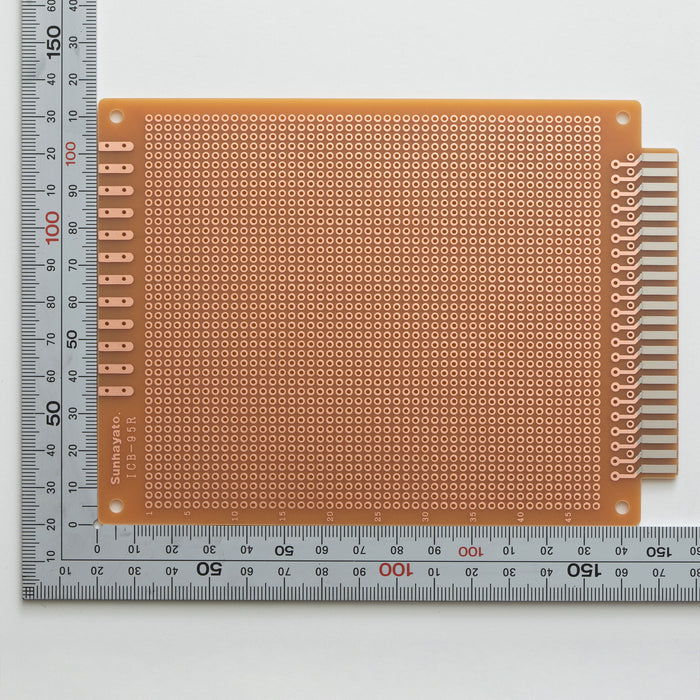

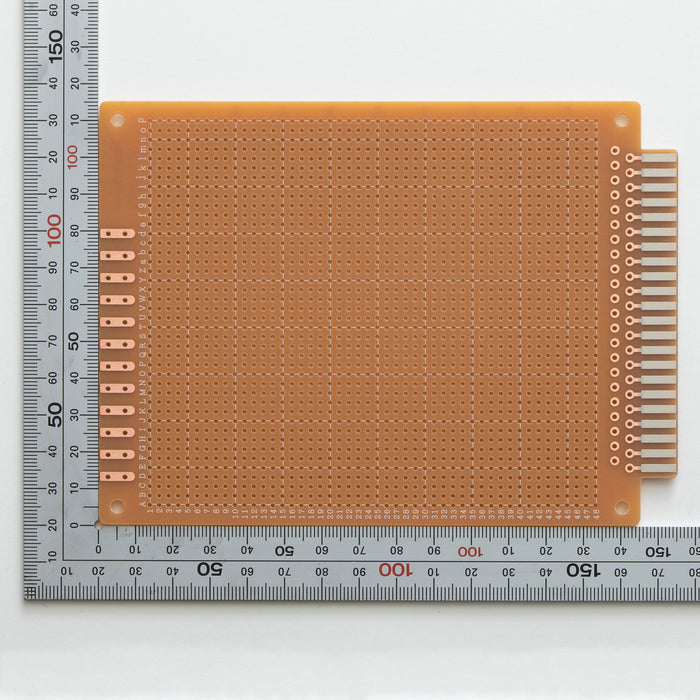

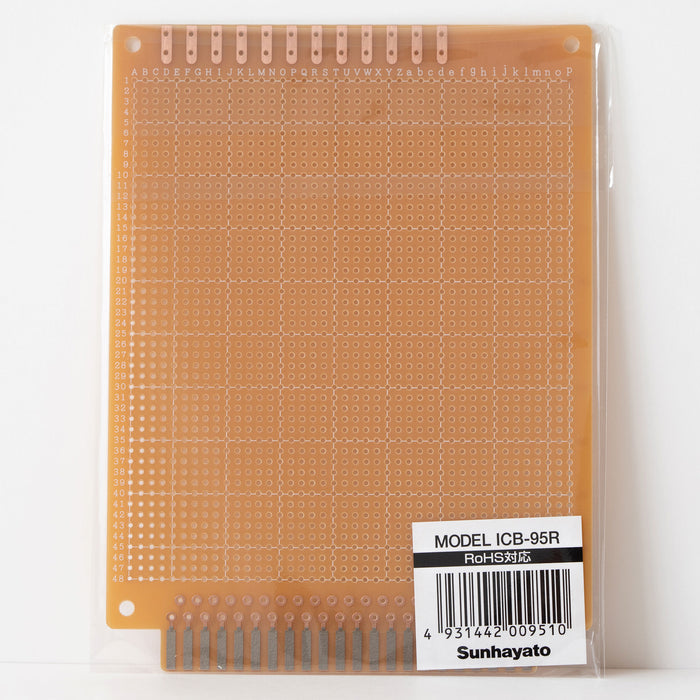

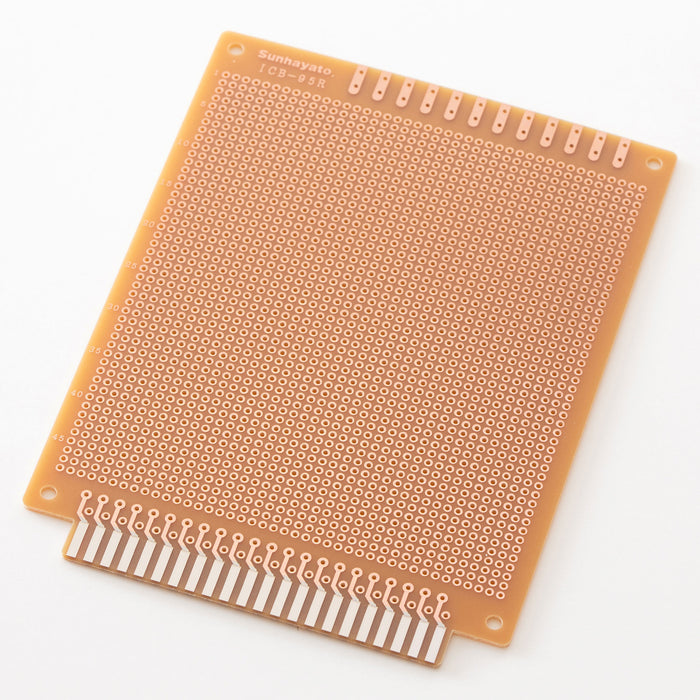

This is a universal board made of paper phenol, with the land portion only on the solder side, and the terminal portion and the pattern for external wiring on both sides. When the terminals are not used by inserting them into the connector, please use it as a lead pull-out part.

Main Specifications

Model No.

ICB-95R

RoHS Directive (10 substances)

Compliant

Material types

Paper Phenolic (FR-1)

Double-sided / Single-sided

Double-sided

Pitch

2.54mm

Body size

115 x 155 x 1.6t (mm)

Quantity

1 piece

Product size (including packaging, approx.)

130 x 160 x 2 mm

Weight (including packaging, approx.)

36g

JAN code

4931442009510

Country of origin

Japan

Hole diameter

1.0 dia.

Pattern / Land shape

Dot pattern

Finishing Treatment

Non-through-hole, flux, white silk printing on component surface, nickel plating on both sides of terminals

Terminals

4mmPitch22-pin

Compatible products

Connector: 1150N-044-009/029 (manufactured by KEL)

★Products are sold one at a time. Please refer to the following for case-by-case consideration.

Number of cases (boxes)

10 pieces in a small box

Box size (approx.)

130×170×20mm

Weight of small box (approx.)

400g

icb95r

Material related to this product

• Universal circuit board with terminals (paper phenol, double-sided/115 x 155 x 1.6t) (ICB-95R)
• Universal circuit board with terminals (paper phenol, double-sided/115 x 155 x 1.6t) (ICB-95R) RoHS Certificate
