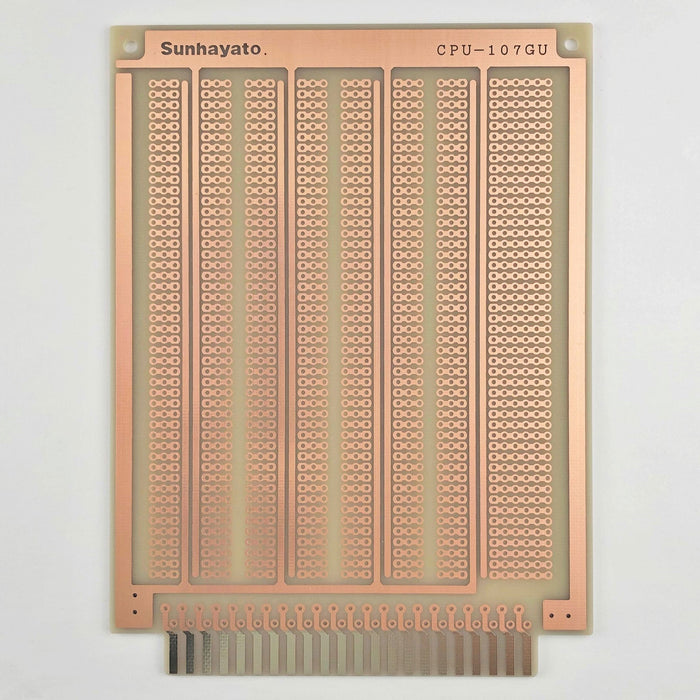

Universal substrate with terminals (glass composite, both sides/115 x 155 x 1.6t) (CPU-107GU)
ネコポス対応
Original price
¥3,069
-
Original price
¥3,069
Original price
¥3,069
¥3,069
-
¥3,069
Current price
¥3,069
(Price including tax)
在庫数88
A highly popular board with terminals
- Universal Printed Circuits Boards
- Universal PCB with terminals
- RoHS compatible
- Glass Composite (CEM-3)
- Double-sided
- 2.54mm
Prices have been revised from August 1st, 2025.

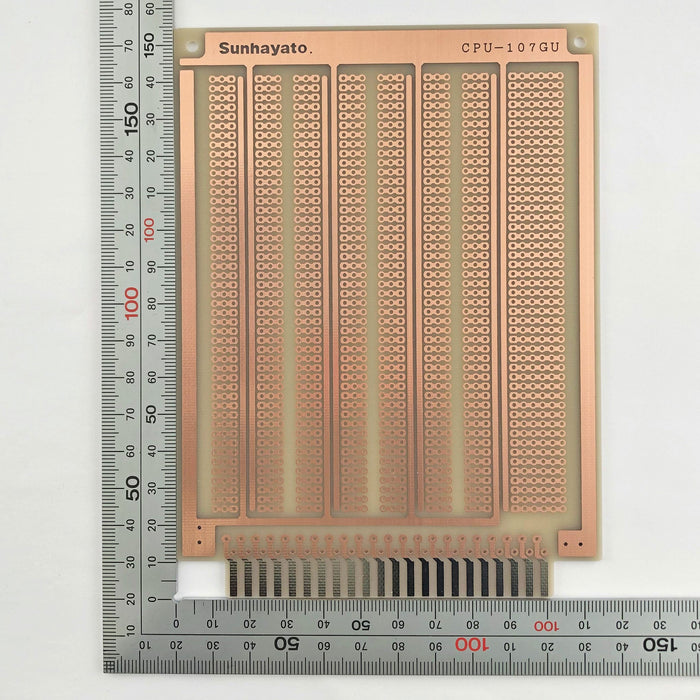

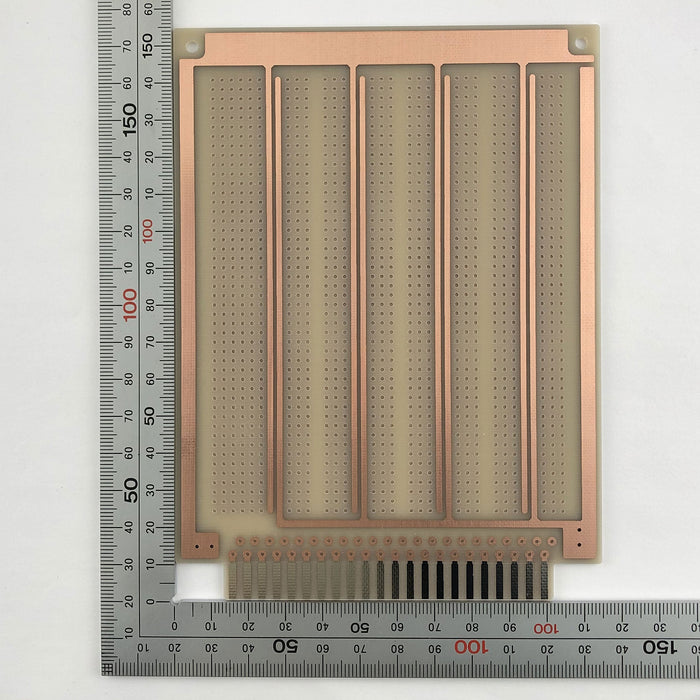

The connecting dot pattern is only the solder surface, and the power line and terminal part areDouble-sidedThere is a pattern inUniversal Printed Circuits Boardsis. If you are not using the terminal by inserting it into the connector, please use it as a lead drawer.
Main specifications
- Model number
- CPU-107GU
- RoHS Directive (10 Substances)
- correspondence
- Material types
- Glass Composite (CEM-3)
- Double-sided / Single-sided
- Double-sided
- Pitch
- 2.54mm
- Body size
- 115 x 155 x 1.6t (mm)
- Quantity
- 1 piece
- Product size (approx. including packaging)
- 130 x 160 x 2 mm
- Weight (approx. including packaging)
- 50g
- JAN Code
- 4931442010738
- country of origin
- Japan
- Hole diameter
- Φ1.0
- Pattern Land Shape
- IC connected dot pattern, power line included
- Finishing treatment
- Flux, terminal sectionDouble-sidedNickel plating
- Terminal section
- 4mm pitch 22 pin
- Compatible products
- Connector: 1150N-044-009/029 (KEL)
★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.
- Number of cases (boxes)
- 10 small boxes
- Small box size (approx.)
- 130 x 170 x 20 mm
- Small box weight (approx.)
- 530g
