Memory Card Conversion Substrate (SD Memory Card) (CK-35)

SD memory card conversion board

• Universal Printed Circuits Boards
• Special Connector Conversion Boards
• RoHS compatible
• Glass Epoxy (FR-4)
• Double-sided

Prices have been revised from August 1st, 2025.

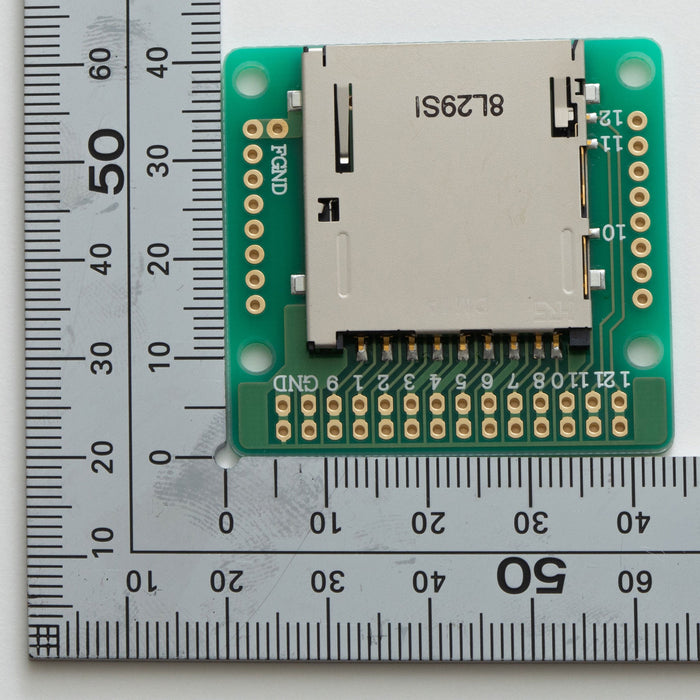

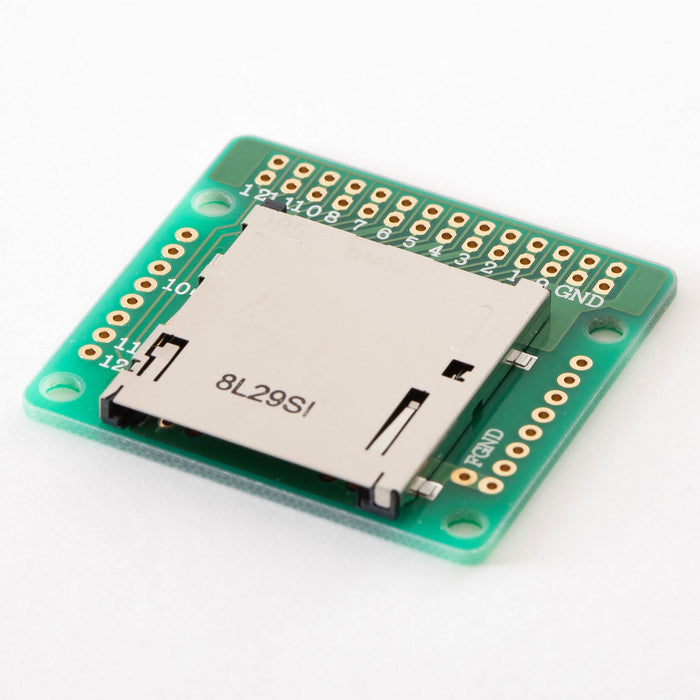

Converts the SD memory card connector to 2.54mm pitch. It comes with an easy-to-operate media half-lock mechanism and has a push-push discharge type connector (DM1AA-SF-PEJ (82) (Hirose Electric)).

Main specifications

Model number

CK-35

RoHS Directive (10 Substances)

correspondence

Material types

Glass Epoxy (FR-4)

Double-sided / Single-sided

Double-sided

Body size

41.593 x 43.815 x 1.6t (mm)

Quantity

1 piece

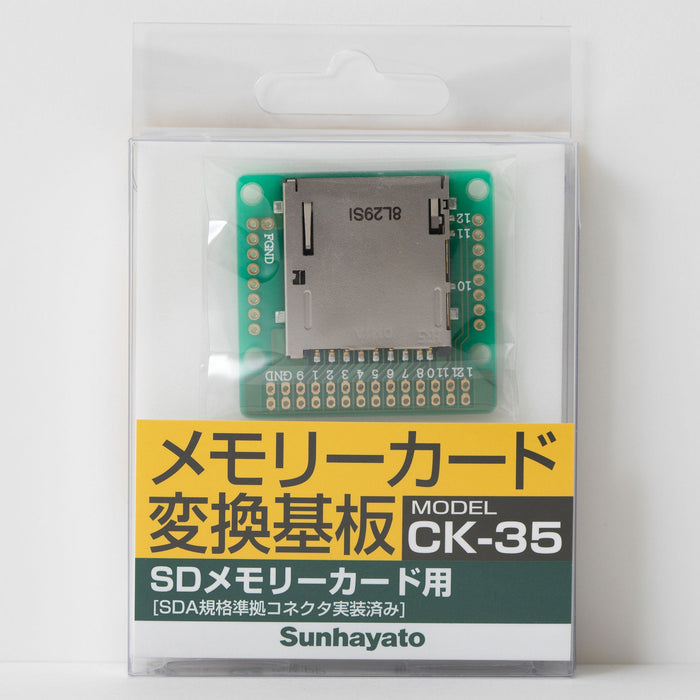

Product size (approx. including packaging)

75 x 120 x 14 mm

Weight (approx. including packaging)

22g

JAN Code

4931442032358

country of origin

Japan

Hole diameter

Φ0.9

Finishing treatment

Through holes, gold flash plating, resist

Pitch before Conversion

SD memory card

Pitch after Conversion

2.54mm

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

80 x 180 x 120 mm

Small box weight (approx.)

280g

ck35

Materials related to this product

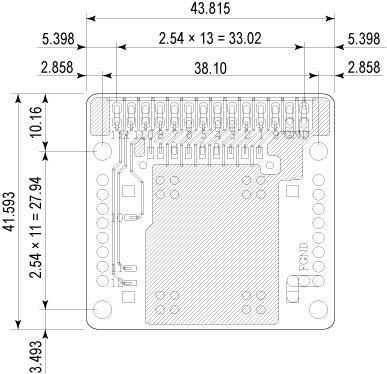

• Detailed drawing of the memory card conversion board (SD memory card) (CK-35)
• RoHS warranty for memory card conversion board (SD memory card) (CK-35)
