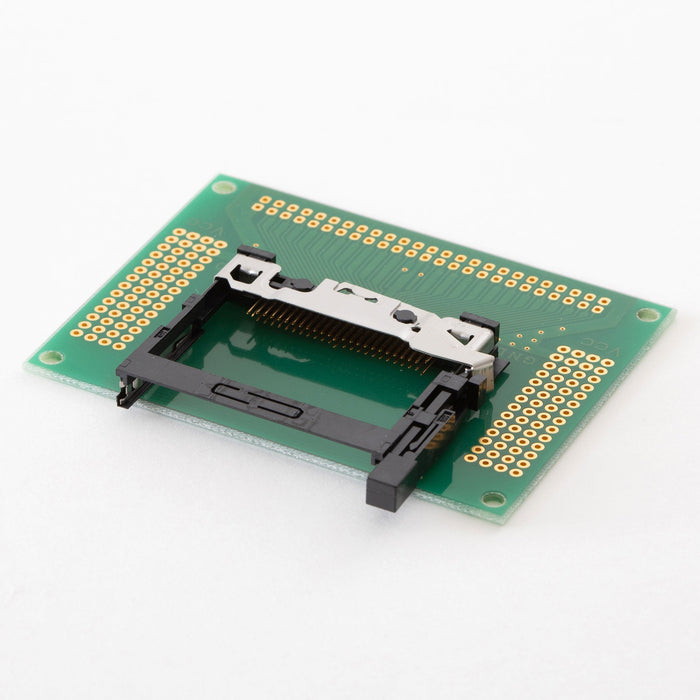

Memory Card Conversion Substrate (Compact Flash)^TM) (CK-14)

Compact flash^TMConnector mounted conversion board

• Universal Printed Circuits Boards
• Special Connector Conversion Boards
• RoHS compatible
• Glass Epoxy (FR-4)
• Double-sided

Prices have been revised from August 1st, 2025.

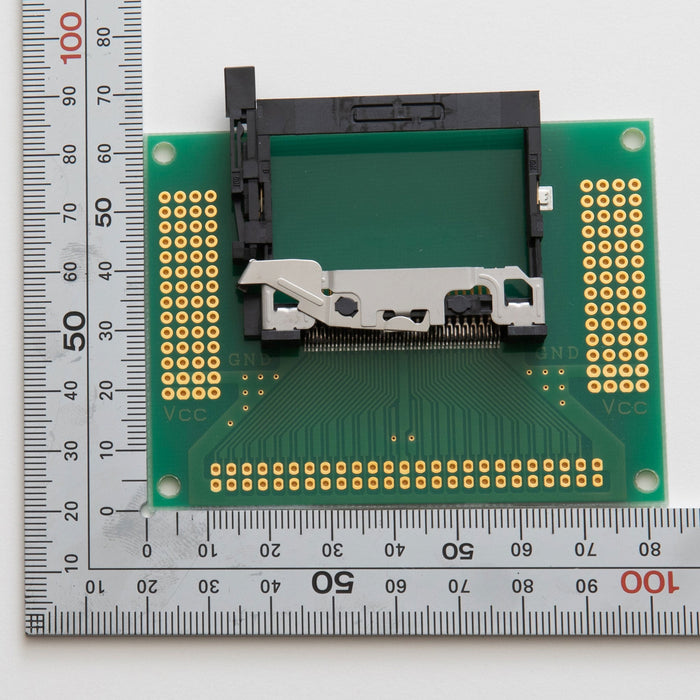

Compact flash^TMConverts the connector for use to 2.54mm pitch. The connector is already mounted. There are service lands around the connector.

Main specifications

Model number

CK-14

RoHS Directive (10 Substances)

correspondence

Material types

Glass Epoxy (FR-4)

Double-sided / Single-sided

Double-sided

Body size

63.17 x 82.55 x 1.6t (mm)

Quantity

1 piece

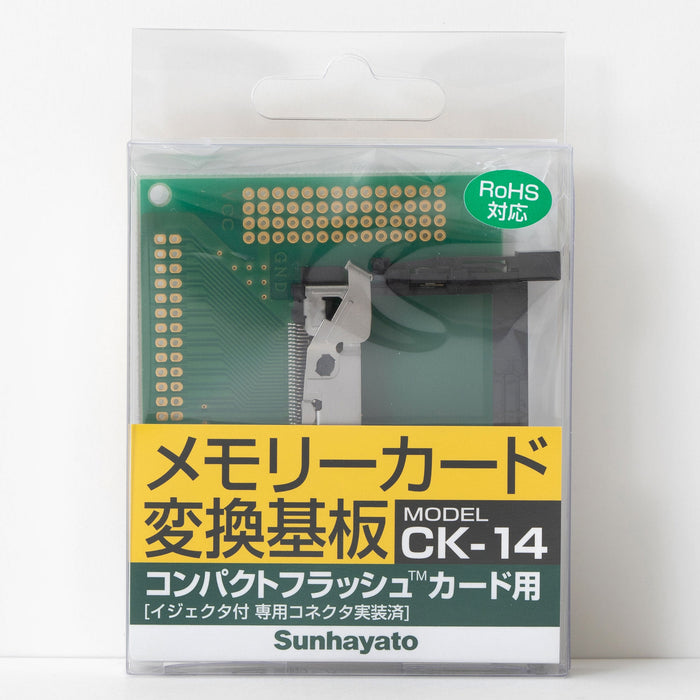

Product size (approx. including packaging)

75 x 120 x 14 mm

Weight (approx. including packaging)

35g

JAN Code

4931442032143

country of origin

Japan

Hole diameter

Φ0.9

Finishing treatment

Through holes, gold flash plating, resist

Pitch before Conversion

Compact flash^TMFor

Pitch after Conversion

2.54mm

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

82 x 180 x 120mm

Small box weight (approx.)

410g
