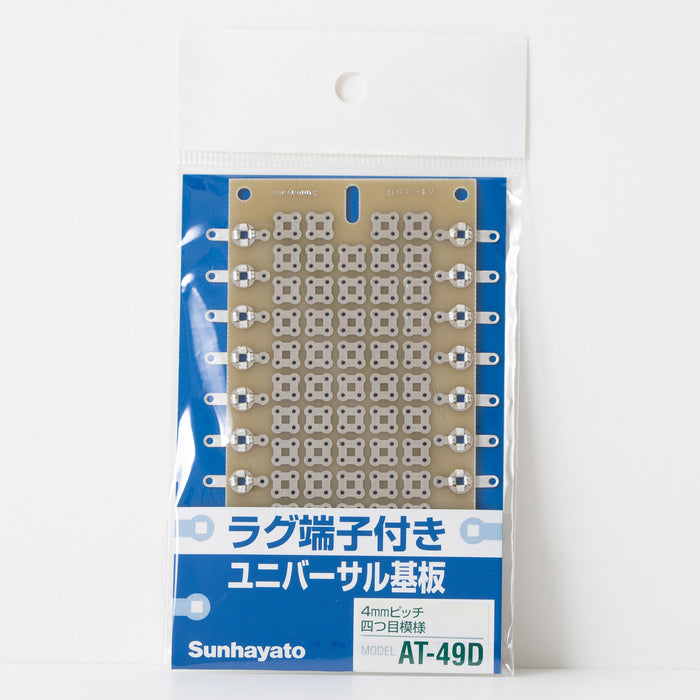

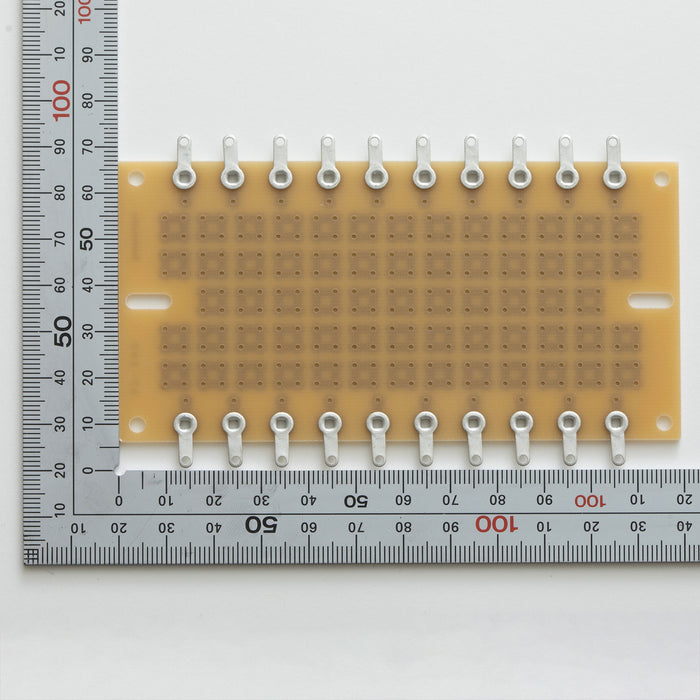

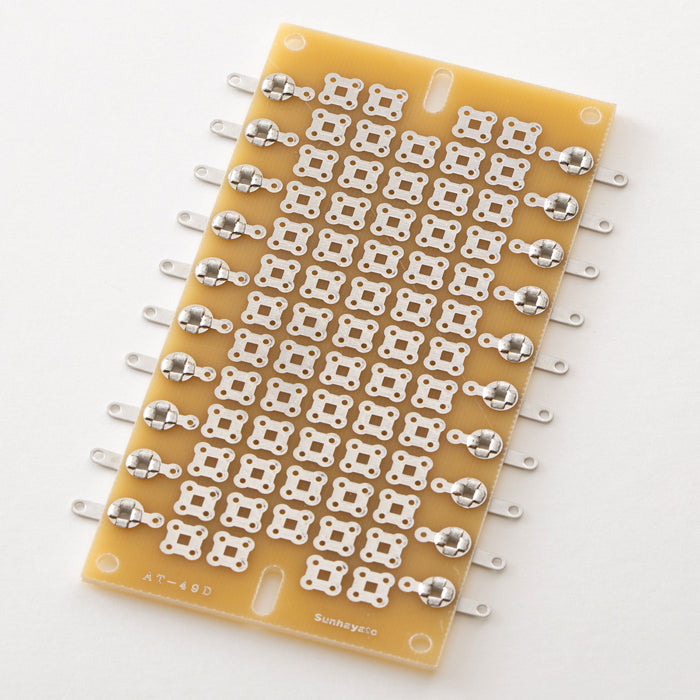

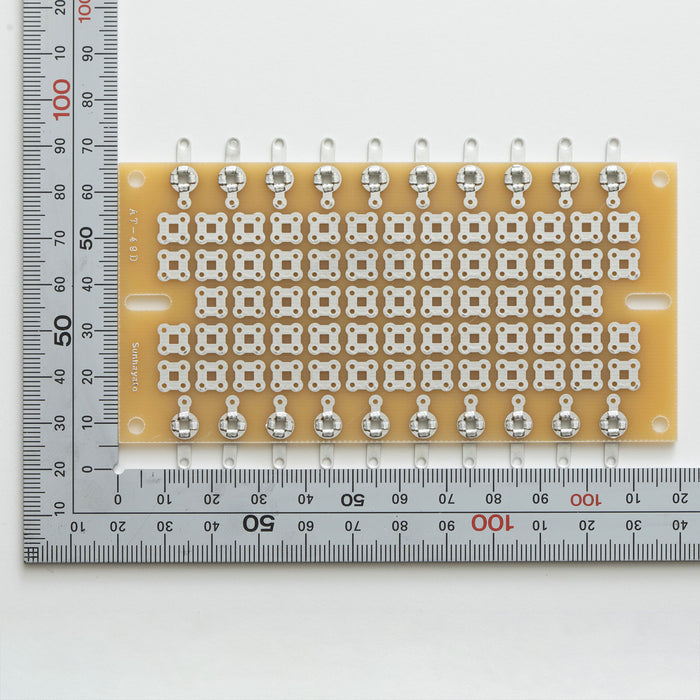

*While supplies last* Universal PCB with lug terminals (Glass Composite Single-sided / 60.96 × 119.38 × 1.6t) (AT-49D)

*While supplies last*—Wires can be easily routed out from the lug terminals

• Universal Printed Circuits Boards
• Universal PCB with lug terminals
• Glass Composite (CEM-3)
• Single-sided
• 4mm

Wiring can be routed from the lug terminals even without attaching a connector. This makes wiring easy when assembling the circuit on the board first and then installing it into the device later.

There are no replacements or successor products available after discontinuation.

Main Specifications

Model Number

AT-49D

Material types

Glass Composite (CEM-3)

Double-sided / Single-sided

Single-sided

Pitch

4 mm

Unit Dimensions

60.96 × 119.38 × 1.6t (mm)

Quantity per package

1 sheet

Product Dimensions (including packaging, approx.)

85 × 160 × 4 mm

Weight (including packaging, approx.)

27 g

JAN Code

4931442004928

Country of Origin

Japan

Hole Diameter

Φ1.0

Pattern/Land Shape

4-hole pattern

Finish

Solder

★Items are sold individually. If you are considering purchasing by case, please refer to the information below.

Quantity per Case (Box)

Small box (10 pieces)

Small Box Dimensions (approx.)

110 × 150 × 33 mm

Small box weight (approx.)

290 g

at49d
