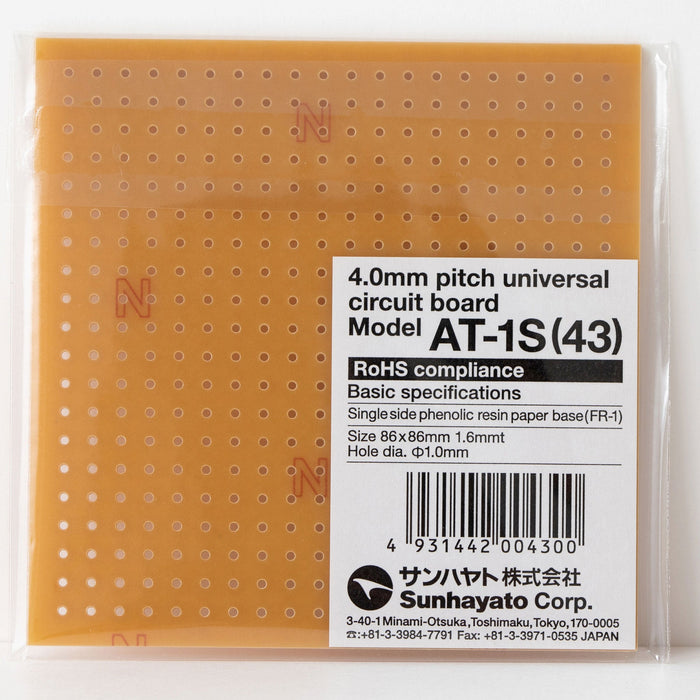

4mm pitch substrate (86 x 86 x 1.6t) (AT-1S(43))

4mm pitch board No. 43

• Universal Printed Circuits Boards
• Discrete Universal PCB
• RoHS compatible
• Paper Phenolic (FR-1)
• Single-sided
• 4mm

Prices have been revised from August 1st, 2025.

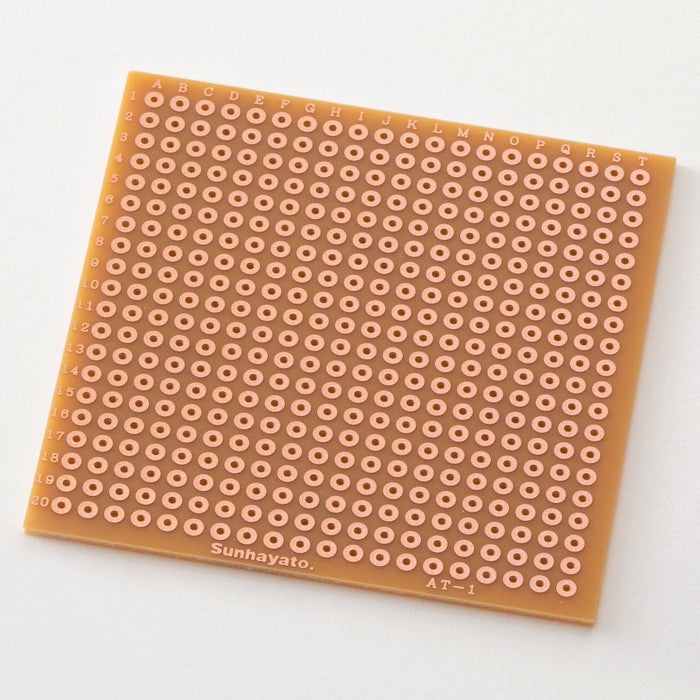

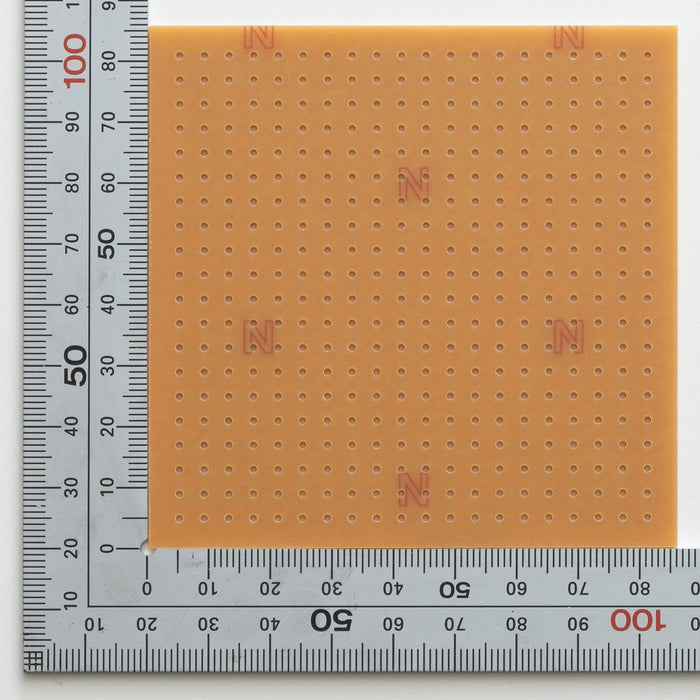

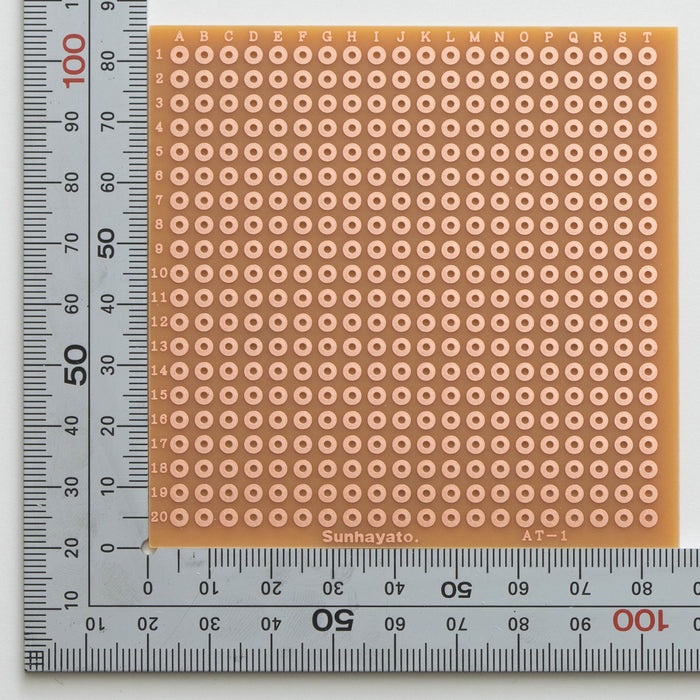

Single-sided-This board is made of paper phenolic material with a 4mm pitch dot pattern (first pattern).

Main specifications

Model number

AT-1S(43)

RoHS Directive (10 Substances)

correspondence

Material types

Paper Phenolic (FR-1)

Double-sided / Single-sided

Single-sided

Pitch

4mm

Body size

86 x 86 x 1.6t (mm)

Quantity

1 piece

Product size (approx. including packaging)

93 x 88 x 2 mm

Weight (approx. including packaging)

16g

JAN Code

4931442004300

country of origin

Japan

Hole diameter

Φ1.0

Pattern Land Shape

First eye pattern

Finishing treatment

Flux

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

95 x 190 x 20 mm

Small box weight (approx.)

180g

at1s(43)
