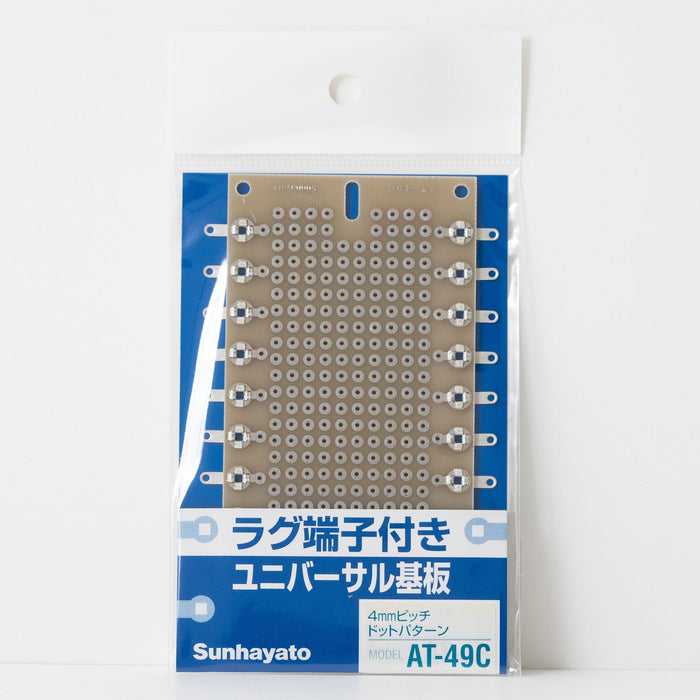

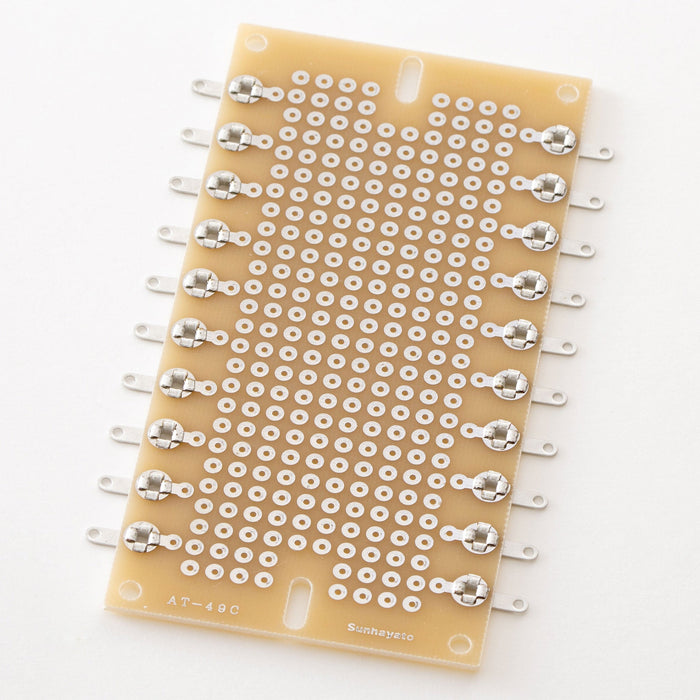

*Limited stock* Universal substrate with lug terminals (glass composite single-sided / 60.96 x 119.38 x 1.6t) (AT-49C)

Wires can be easily pulled out from the lug terminals

• Universal Printed Circuits Boards
• Universal PCB with lug terminals
• Glass Composite (CEM-3)
• Single-sided
• 4mm

Wires can be pulled out from the lug terminals without the need to attach connectors. This facilitates wiring when circuits on the board are assembled first and then later incorporated into the device.

There are no substitutes or successors to this product after its discontinuation.

Main Specifications

Model No.

AT-49C

Material types

Glass Composite (CEM-3)

Double-sided / Single-sided

Single-sided

Pitch

4mm

Body size

60.96 x 119.38 x 1.6t (mm)

Number of pieces

1 piece

Product size (including packaging, approx.)

120 x 160 x 4mm

Weight (including packaging, approx.)

27g

JAN code

4931442004911

Country of origin

Japan

Hole diameter

1.0 dia.

Pattern / Land shape

1-patterned pattern

Finish Treatment

Solder

★Products are sold one at a time. Please refer to the following if you would like to consider the product by the case.

Number of cases (boxes)

10 pieces in a small box

Box size (approx.)

110 x 150 x 33 mm

Small box weight (approx.)

300g

at49c

Materials related to this product

• *Detailed drawing of universal substrate with lug terminals (glass composite single-sided / 60.96 x 119.38 x 1.6t) (AT-49C)
