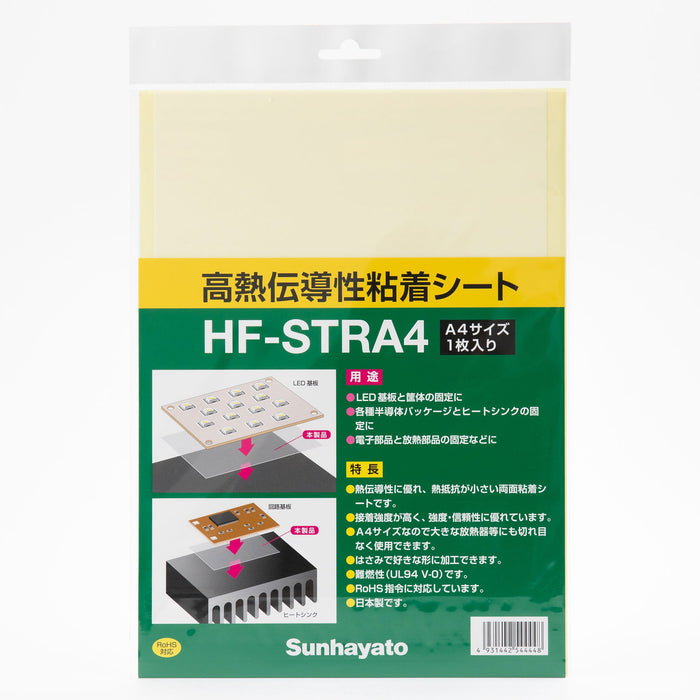

High Thermal Conductivity Adhesive Sheet (HF-STRA4)

Can attach ICs and boards directly to heat sinks!

• Jig and Tool
• Heat Radiation Products
• RoHS compliant

Although ICs and circuit boards used to be screwed between insulating plates to attach them to a heat sink, this product reduces the number of parts such as insulating plates and screws, and eliminates the need for machining screw holes. Double-sided adhesive sheet with excellent thermal conductivity and low thermal resistance. It has high adhesive strength and excellent strength and reliability. A4 size allows it to be used for large heat sinks, and for small parts, it can be processed into any desired shape using scissors.

• See examples of high thermal conductivity adhesive sheet (HF-STRA4)

Main Specifications

Model No.

HF-STRA4

RoHS Directive (10 substances)

Compliant

Main unit size

200 x 300 x 0.125 mm (not including release agent)

Quantity

1 sheet

Product size (including packaging, approx.)

230 x 340 x 1 mm

Weight (including packaging, approx.)

60g

JAN code

4931442544448

Country of origin

Japan

Caution

This product is intended for indoor use. When using this product in a high temperature or humid environment, please verify the product thoroughly. The product may peel off easily on uneven surfaces or when distortion is large. When storing the product, keep it in a cool, dark place away from direct sunlight and ultraviolet (UV) rays.

Appearance

White

Thermal conductivity

1.1W/m-k

Dielectric breakdown strength

0.5kV

Thermal resistance

1.8cm²・K/W 180°

Flame retardant

UL94V-0

Adhesive

Pressure-sensitive acrylic adhesive

Peel-off adhesive strength

14.1N/20mm (aluminum plate: A1050)

hfstra4

Materials related to this product

• TDS of High Thermal Conductivity Adhesive Sheet (HF-STRA4) (Technical Data)
• RoHS Certificate for High Thermal Conductivity Adhesive Sheet (HF-STRA4)
