digitalStatic Electricity Detector(Main unit + Calibration Service) (EG-1-CC)

Easily measure charged potential (calibration certificate included)

• Jig and Tool
• Static Electricity Detector
• RoHS compatible

Prices have been revised from August 1st, 2025.

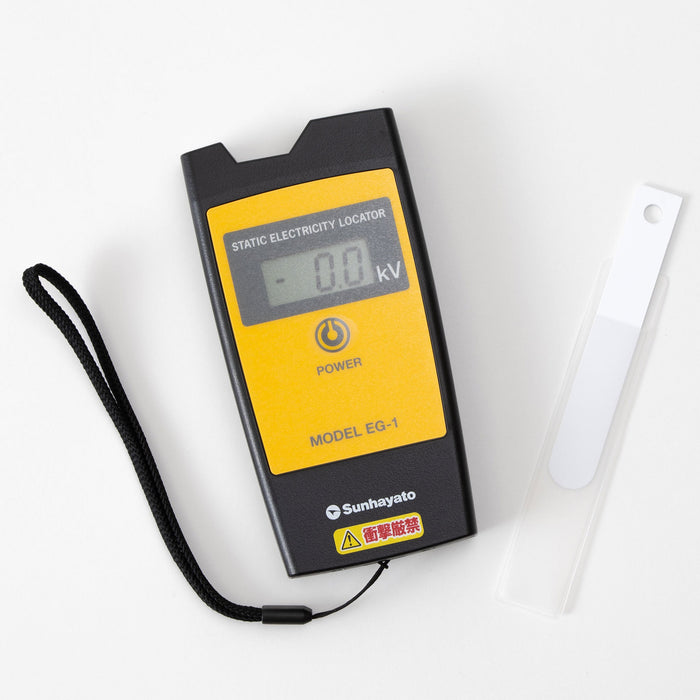

Digital that detects static electricity without contactStatic Electricity DetectorYou will receive a proof of proof upon purchase. It has a large display and a backlight, making it easy to read numbers and can be used in dark places. By using a measurement marker, the optimal distance for measurement can be kept constant. There are screw holes in the main unit for the camera, so you can also use it by fixing it to a tripod. Use it for charging checks and effective testing of various static electricity removal equipment.

Main specifications

Model number

EG-1-CC

RoHS Directive (10 Substances)

correspondence

Quantity

1 set

Body weight (excluding packaging)

196g (including batteries)

Product size (approx. including packaging)

130 x 220 x 54 mm

JAN Code

4931442522187

country of origin

Japan

Accessories (set contents)

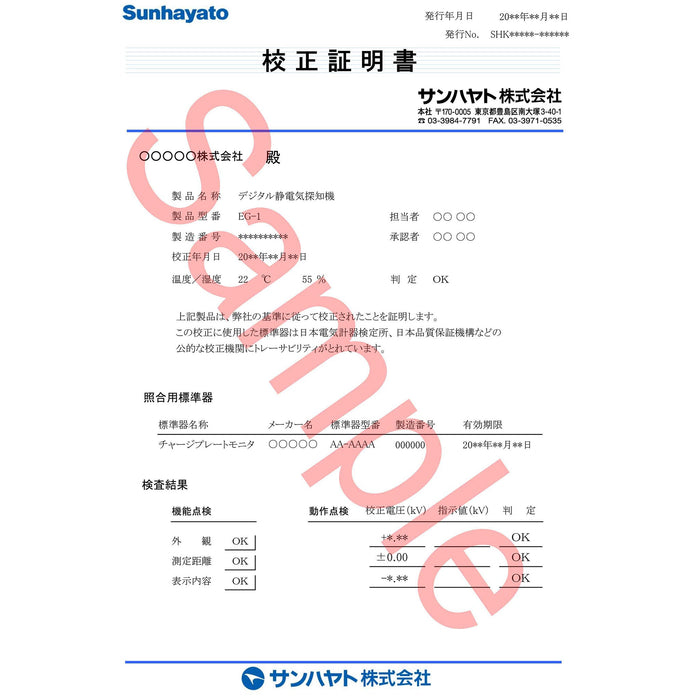

Instruction manual, warranty card, 4 AA batteries, strap, test piece, calibration certificate

Note

When placing an order, please provide the official address to be written on the proof of calibration. This product does not have a 0 adjustment function. Repairs will be handled.

Storage temperature range

-10～50℃

Operating temperature range

0-50°C No condensation

Input power supply

4 x AA batteries

Measurement range

0 to ±19.9kV

Measurement distance

50mm

accuracy

±7%±0.1kV

eg1cc
