Small Breadboard Parts Set (SBS-208)

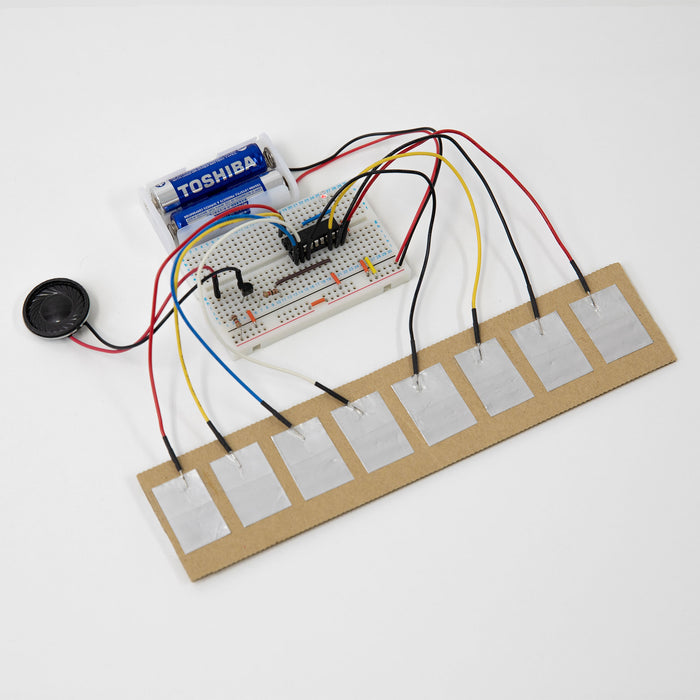

Electronic Craft Kit to make a touch-sensor piano

• Educational Training Tools
• Breadboard

Simply insert the parts into the breadboard and enjoy electronic construction without soldering. The kit comes with an easy-to-understand instruction manual, so even beginners can easily assemble it. After completion, the components can be soldered on using the breadboard-compatible universal board (MODEL UB-BRD01), which is sold separately. The microcontroller is pre-programmed, so it can be used simply by assembling it. It is also ideal as a teaching material for practical training and experiments at schools.

Main Specifications

Model No.

SBS-208

Quantity

1 set

Product size (including packaging, approx.)

100 x 160 x 33 mm

Weight (including packaging, approx.)

78g

JAN code

4931442644247

Country of origin

Japan

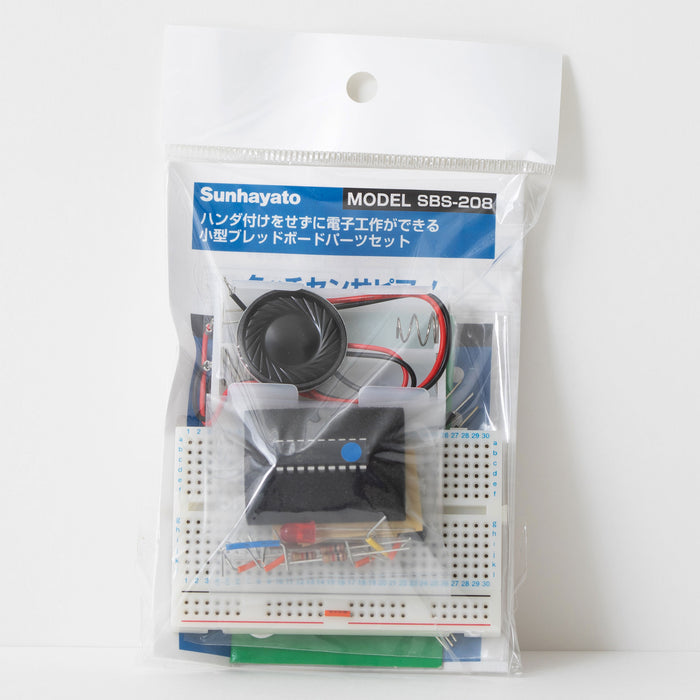

Accessories (Contents of set)

Breadboard: SAD-101 x 1, Jump wire x 7, Jump wire: SPP-200 equivalent x 1, Battery box (for AA x 2) x 1, Microcontroller: PIC16F1827 x 1, Transistor (NPN) (KTC3198 (2SC1815 compatible)) x 1, LED x 1, Speaker ( with jump wire) x 1, resistor 1kΩ (brown-black-red-gold) x 3, aluminum sheet x 8

Caution

Batteries are not included in the product and must be purchased separately. Tools such as nippers and tweezers are required for assembly work.

★Products are sold one at a time. Please refer to the following if you are interested in a case-by-case basis.

Number of cases (boxes)

10 pieces in a small box

Box size (approx.)

110 x 240 x 180 mm

Weight of small box (approx.)

890g

sbs208

Materials related to this product

• Instruction Manual for Small Breadboard Parts Set (SBS-208)
