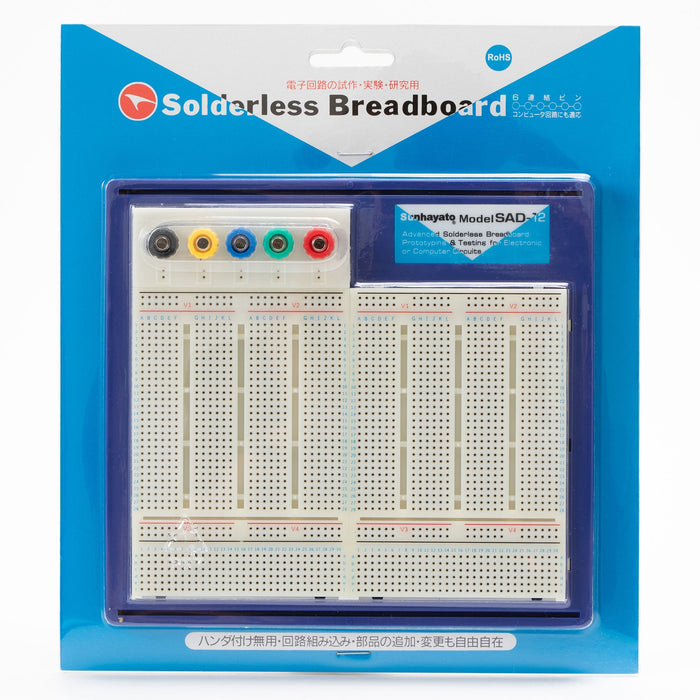

New Breadboard (SAD-12)

The circuit can be assembled simply by inserting parts and leads.

• Educational Training Tools
• Breadboard
• RoHS compatible

Prices have been revised from August 1st, 2025.

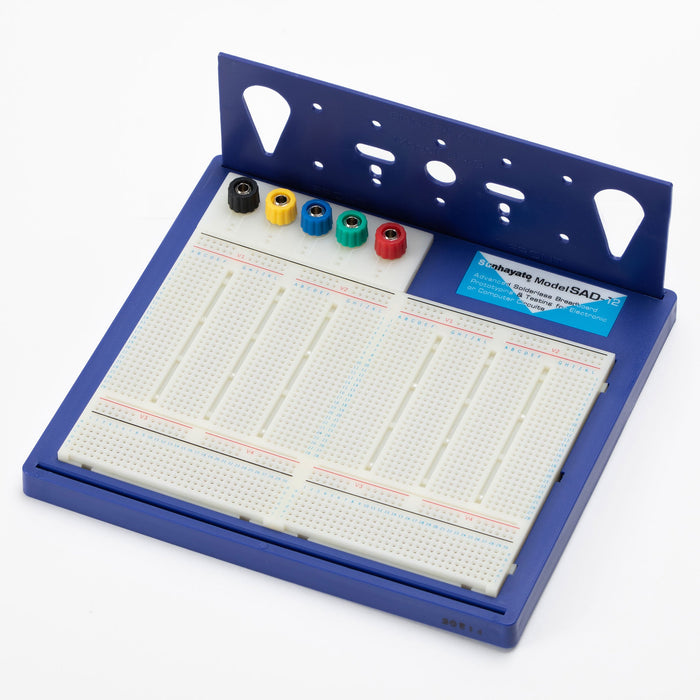

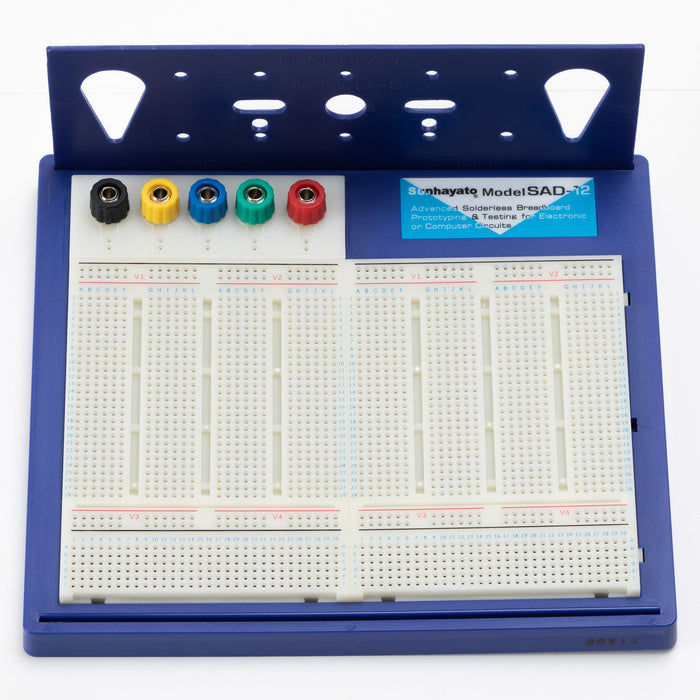

6-hole connecting pinBreadboardis. In addition to the features of the SAD-01, it comes with an edge plate that can be used to attach analog components such as speakers and volumes, so you can use parts of a variety of shapes.

Main specifications

Model number

SAD-12

RoHS Directive (10 Substances)

correspondence

Body size

184 x 168 x 24 mm

Quantity

1 piece

Product size (approx. including packaging)

250 x 220 x 30 mm

Weight (approx. including packaging)

350g

JAN Code

4931442641123

country of origin

Taiwan

Number of holes

1906

Accessories (set contents)

Edge Plate

Insulation resistance

1,000MΩ or more (DC 500V/1min)

Current capacity

Max3A

Capacitance

15pF or less (1MHz)

Resistance value

10mΩ

Usable diameter

AWG #22 to #30 (Φ0.3 to Φ0.8mm)

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

240 x 230 x 260 mm

Small box weight (approx.)

3.8kg
