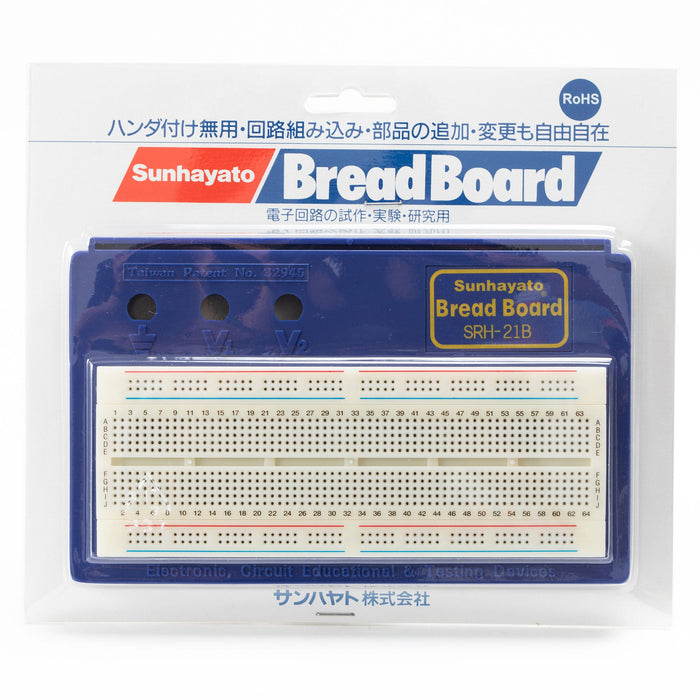

Breadboard (SRH-21B)

The circuit can be assembled simply by inserting parts and leads.

• Educational Training Tools
• Breadboard
• RoHS compatible

Prices have been revised from August 1st, 2025.

5-hole connecting pinBreadboardis. IC, resistance, capacitor,Jump WiresSimply inserting such parts will assemble the prototype circuit, and since there is no need to soldering, the parts will not be damaged. It is easy to insert and remove, and you can add parts and change the circuit freely.

Main specifications

Model number

SRH-21B

RoHS Directive (10 Substances)

correspondence

Body size

119 x 191 x 24 mm

Quantity

1 piece

Product size (approx. including packaging)

120 x 230 x 22 mm

Weight (approx. including packaging)

250g

JAN Code

4931442641215

country of origin

Taiwan

Number of holes

840

Accessories (set contents)

1 edge plate, 3 terminals

Insulation resistance

1,000MΩ or more (DC 500V/1min)

Current capacity

Max3A

Capacitance

15pF or less (1MHz)

Resistance value

10mΩ

Usable diameter

AWG #22 to #30 (Φ0.3 to Φ0.8mm)

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

240 x 220 x 210 mm

Small box weight (approx.)

2.7kg

srh21b

Materials related to this product

• Breadboard(SRH-21B) TDS (technical document)
• Breadboard(SRH-21B) RoHS warranty
