*Discontinued* Laboratory Analog Meter (DC Voltmeter) (ME-DCV30)
Out of stock
販売終了
Original price
¥4,818
-
Original price
¥4,818
Original price
¥4,818
¥4,818
-
¥4,818
Current price
¥4,818
(Price including tax)
- Discontinued

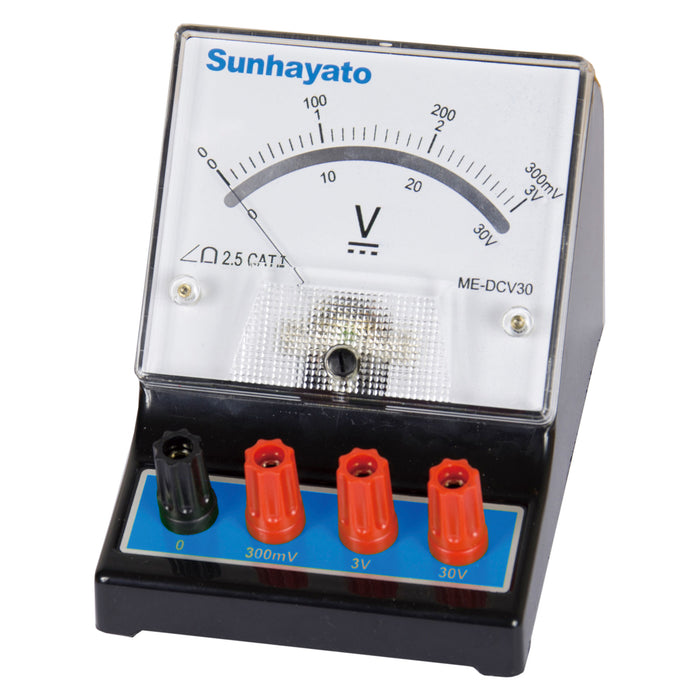

*Discontinued* The display is large and easy to read
This is an analog meter for measuring DC voltage in electrical circuits. The terminals are separated by input range. The input terminals accept not only banana plugs but also Y-type lug terminals and bare wire.You can use our banana cables (WK-BB05) or the Banana Jump Wires (SPB-500), allowing for smooth operation.
There are no replacements or successor models available after this product is discontinued.
Main Specifications
- Model Number
- ME-DCV30
- RoHS Directive (10 Substances)
- Compliant
- Unit Dimensions
- 98 × 134 × 98 mm
- Quantity per Package
- 1 unit
- Product Dimensions (including packaging, approx.)
- 110 × 140 × 110 mm
- Weight (including packaging, approx.)
- 224 g
- JAN Code
- 4931442646081
- Country of Origin
- China
- Accessories (Set Contents)
- Instruction Manual, Warranty Card
- Storage Temperature Range
- 0–40°C (Humidity: 20–85%)
- Operating Temperature Range
- 0–40°C (Humidity: 20–85%)
- Measurement Range
- 0–300 mV, 3 V, 30 V
- Measurement error
- ±2.5% (Class 2.5)
- Terminals
- Terminal connectors (input for each range: red; 0 terminal: black)
