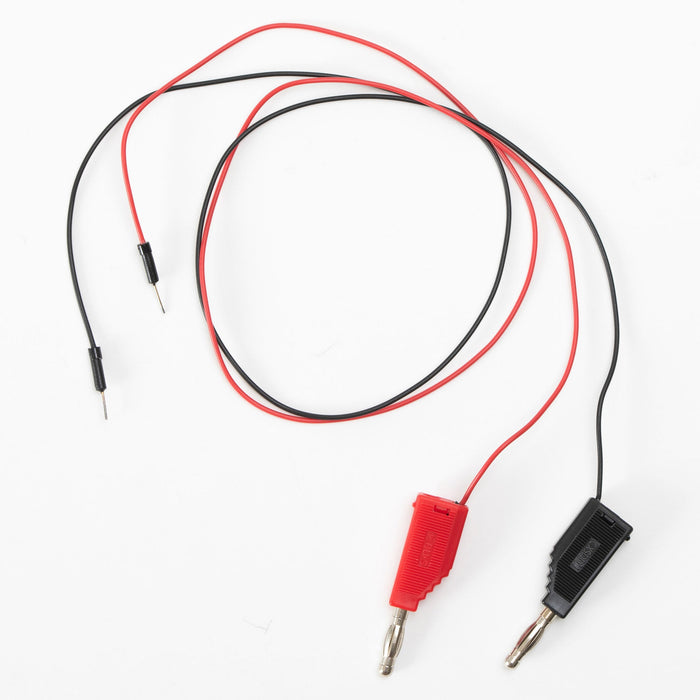

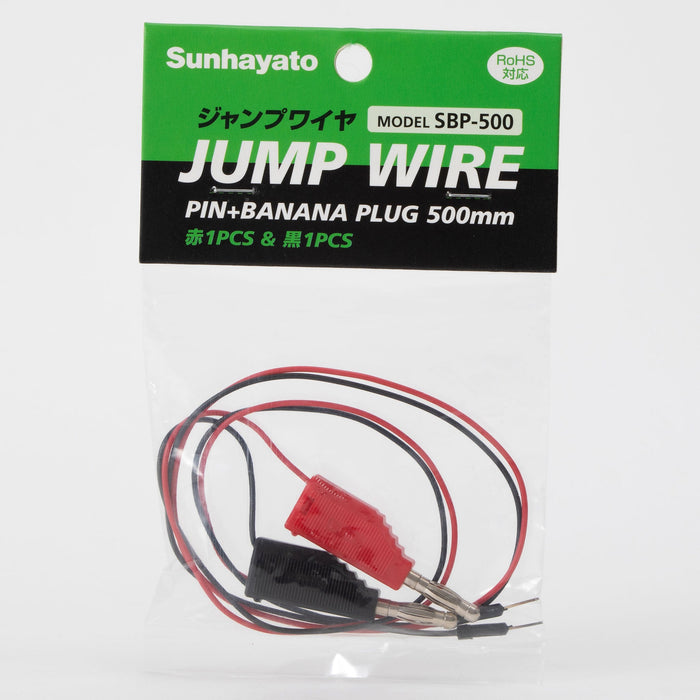

Banana jump wire (SBP-500)

Can be inserted directly into terminal terminals etc.

• Educational Training Tools
• Options for Breadboards

Prices have been revised from August 1st, 2025.

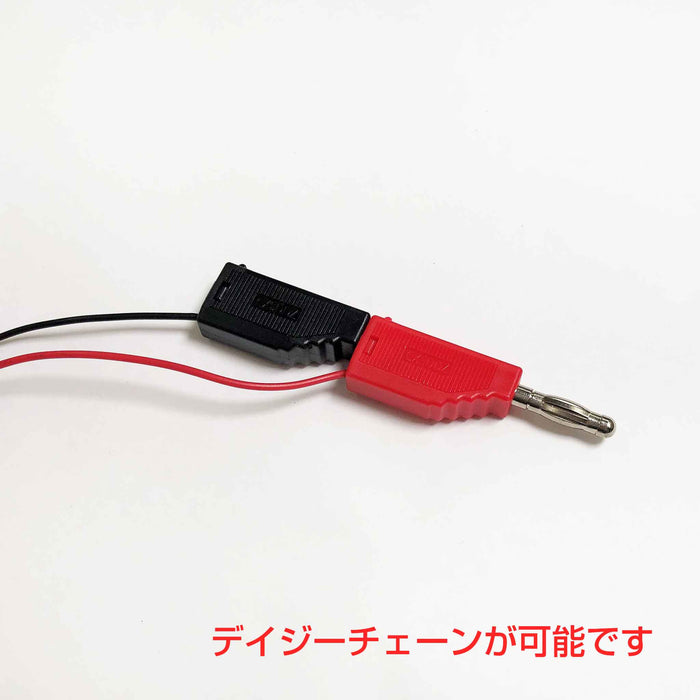

Banana jacks such as stabilized power sources and measuring instrumentsBreadboardIt is easy to connect and stable measurements can be performed. The cable length is 500mm, making it easy to handle wiring to devices, etc. The banana connector is Φ4mm and can be daisy chained.

Main specifications

Model number

SBP-500

Body size

Pin diameter: Φ0.6mm, banana pin diameter: Φ4mm

Quantity

1 set (1 red and black x 1 each)

Product size (approx. including packaging)

90 x 140 x 10 mm

Weight (approx. including packaging)

21g

JAN Code

4931442645626

country of origin

Japan

Accessories (set contents)

Red and black x 1 each

Rated current

3A (25℃)

Compatible standards

UL1007

length

500mm

Conductor thickness

AWG26 (stranded line) Φ0.405mm

Electric wire outer diameter dimensions

Φ1.3mm
