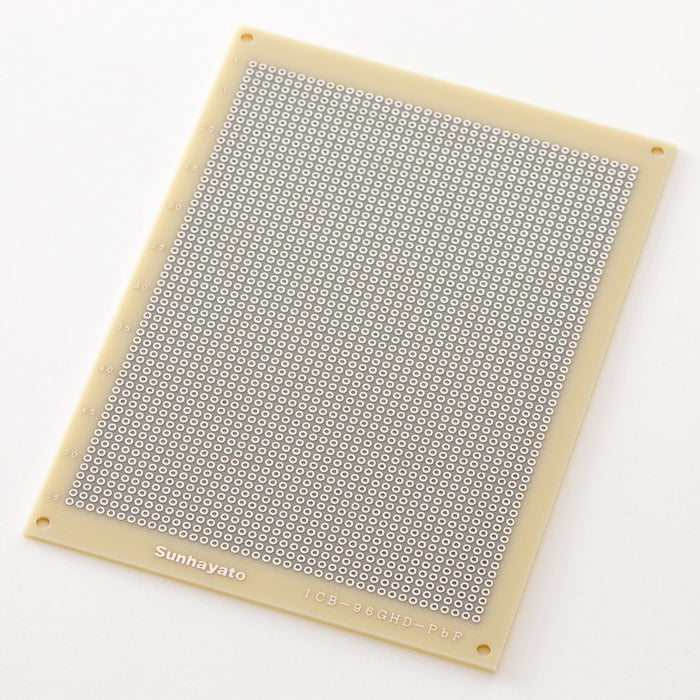

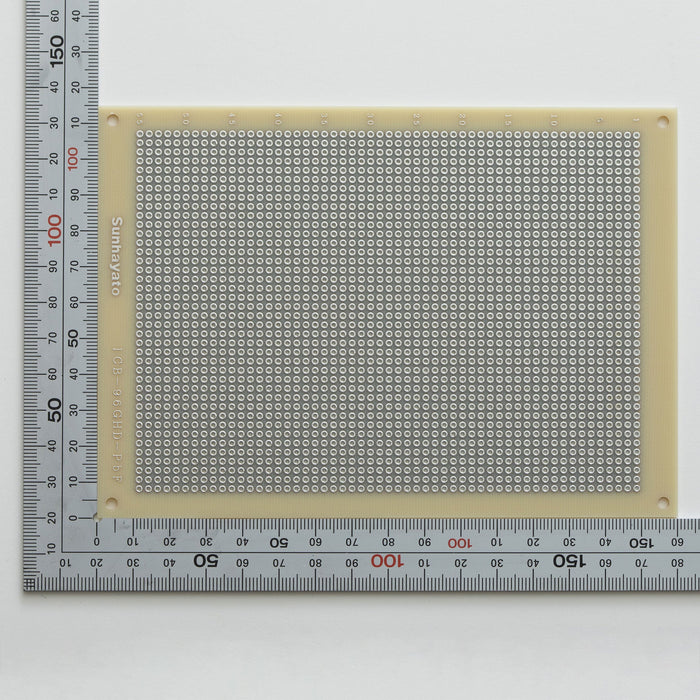

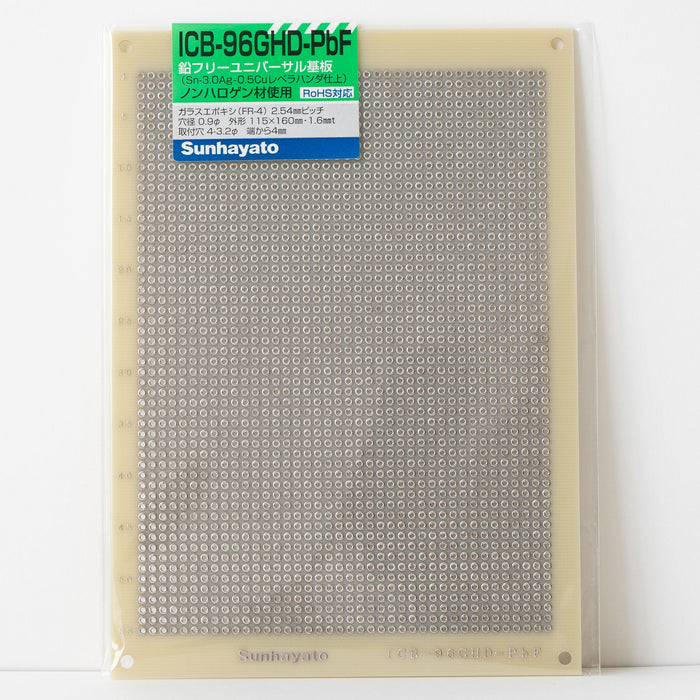

Universal circuit board (Pb-free board both sides/115 x 160 x 1.6t) (ICB-96GHD-PbF)

Easy to use standard size

• Universal Printed Circuits Boards
• Universal Printed Circuits Boards
• RoHS compatible
• Glass Epoxy (FR-4)
• Double-sided
• 2.54mm

Prices have been revised from August 1st, 2025.

Double-sided- Glass epoxy materialUniversal Printed Circuits Boardsis. Fully dot pattern.

Main specifications

Model number

ICB-96GHD-PbF

RoHS Directive (10 Substances)

correspondence

Material types

Glass Epoxy (FR-4)

Double-sided / Single-sided

Double-sided

Pitch

2.54mm

Body size

115 x 160 x 1.6t (mm)

Quantity

1 piece

Product size (approx. including packaging)

130 x 170 x 2 mm

Weight (approx. including packaging)

63g

JAN Code

4931442049646

country of origin

Japan

Hole diameter

Φ0.9

Pattern Land Shape

Dot Pattern

Finishing treatment

Through hole, lead-free solder (Sn-3.0Ag-0.5Cu)

Number of holes

2200

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

130 x 170 x 20 mm

Small box weight (approx.)

650g
