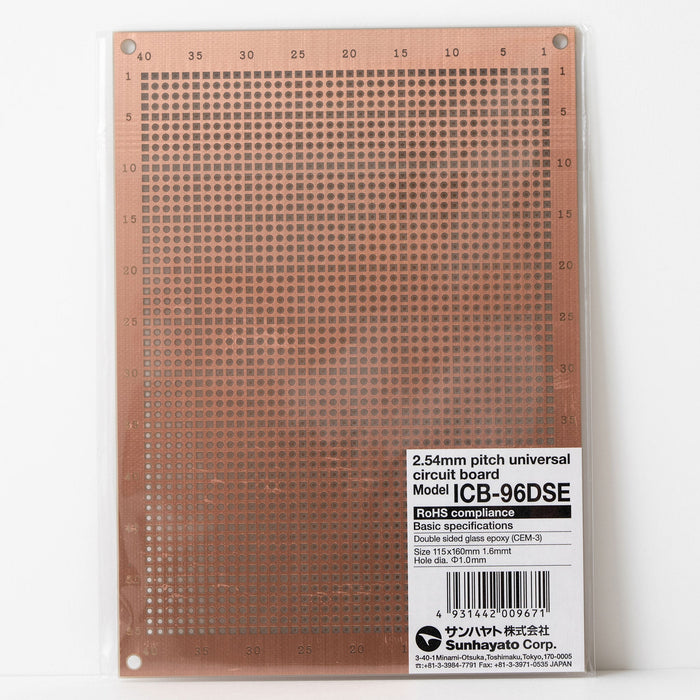

Universal substrate (glass composite double-sided/115 x 160 x 1.6t) (ICB-96DSE)

Easy to use standard size

• Universal Printed Circuits Boards
• Universal Printed Circuits Boards
• RoHS compatible
• Glass Composite (CEM-3)
• Double-sided
• 2.54mm

Prices have been revised from August 1st, 2025.

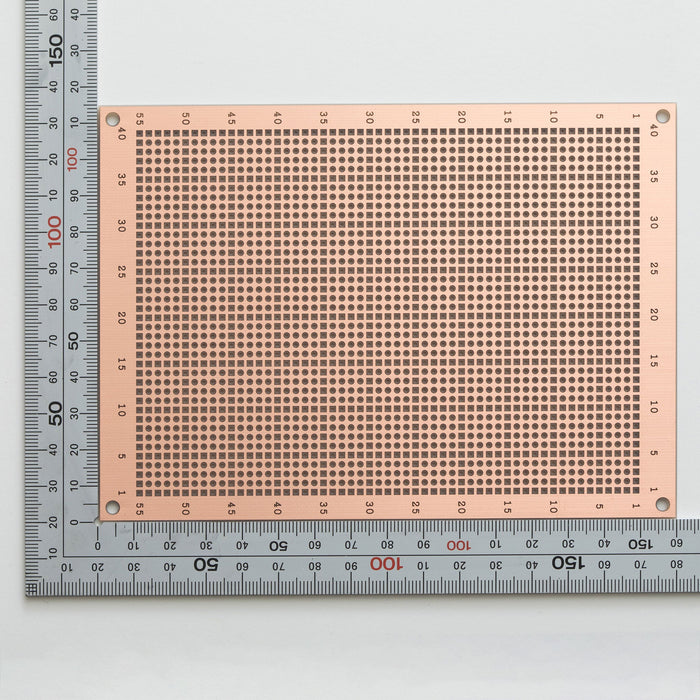

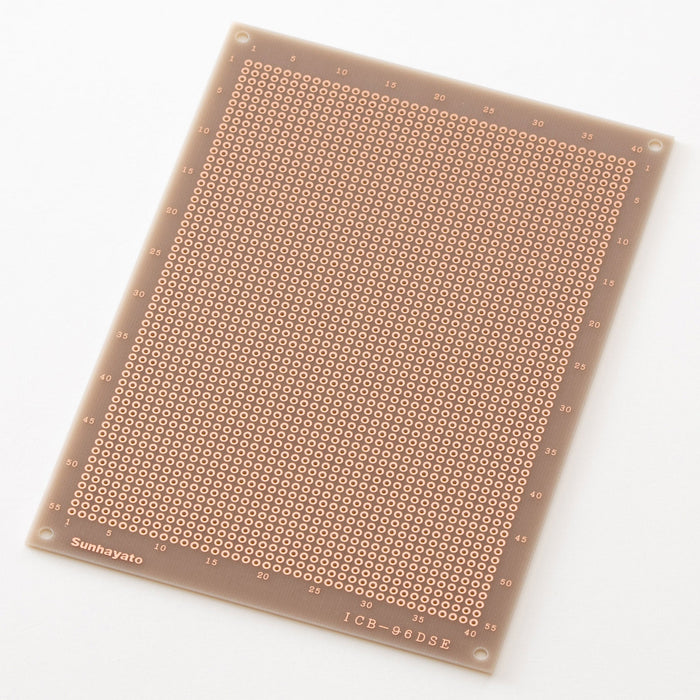

Double-sided- Glass composite materialUniversal Printed Circuits Boardsis. The solder surface is a full dot pattern, and the part surface is a shield pattern.Single-sidedUse it in the same way as the board.

Main specifications

Model number

ICB-96DSE

RoHS Directive (10 Substances)

correspondence

Material types

Glass Composite (CEM-3)

Double-sided / Single-sided

Double-sided

Pitch

2.54mm

Body size

115 x 160 x 1.6t (mm)

Quantity

1 piece

Product size (approx. including packaging)

130 x 170 x 2 mm

Weight (approx. including packaging)

52g

JAN Code

4931442009671

country of origin

Japan

Hole diameter

Φ1.0

Pattern Land Shape

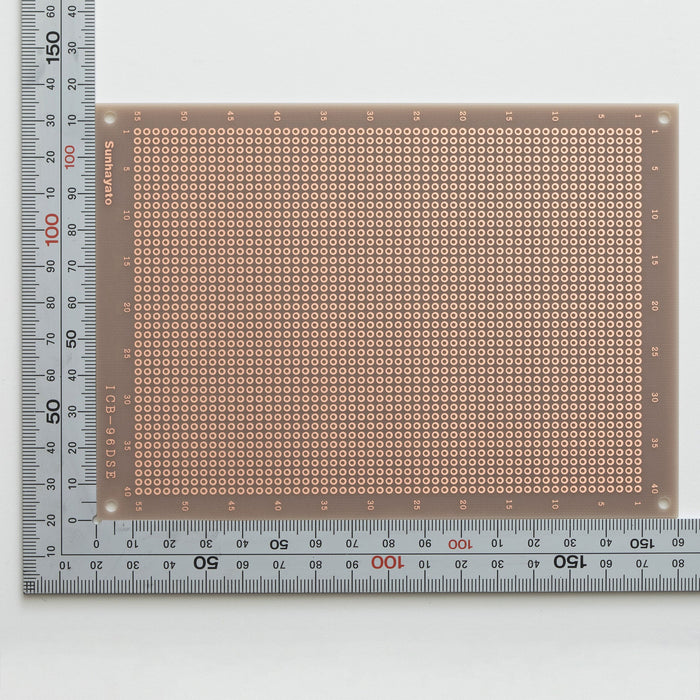

Solder face dots/part face shield pattern

Finishing treatment

Flux

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

125 x 165 x 20 mm

Small box weight (approx.)

550g

icb96dse
