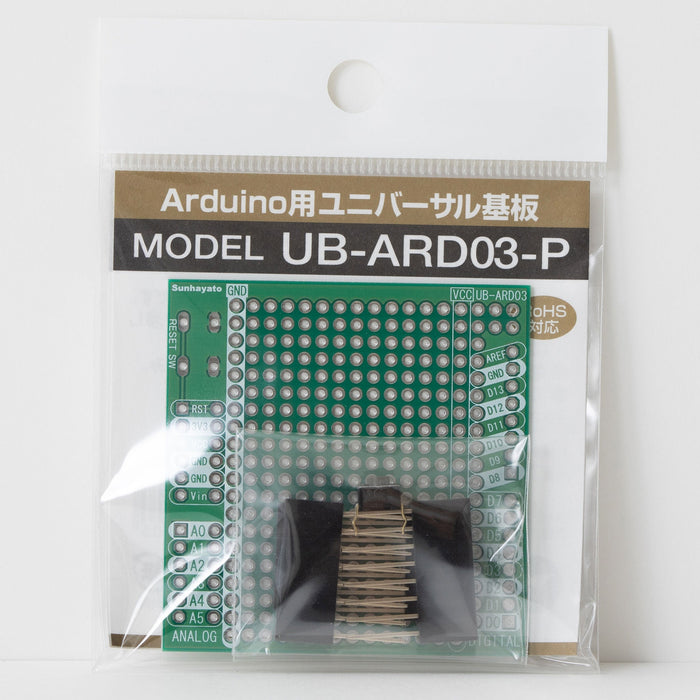

Universal board for Arduino with connectors for connection (UB-ARD03-P)

For Arduino Duemilanove

• Universal Printed Circuits Boards
• Universal PCB for Arduino
• RoHS compatible
• Glass Composite (CEM-3)
• Double-sided
• 2.54mm

Prices have been revised from August 1st, 2025.

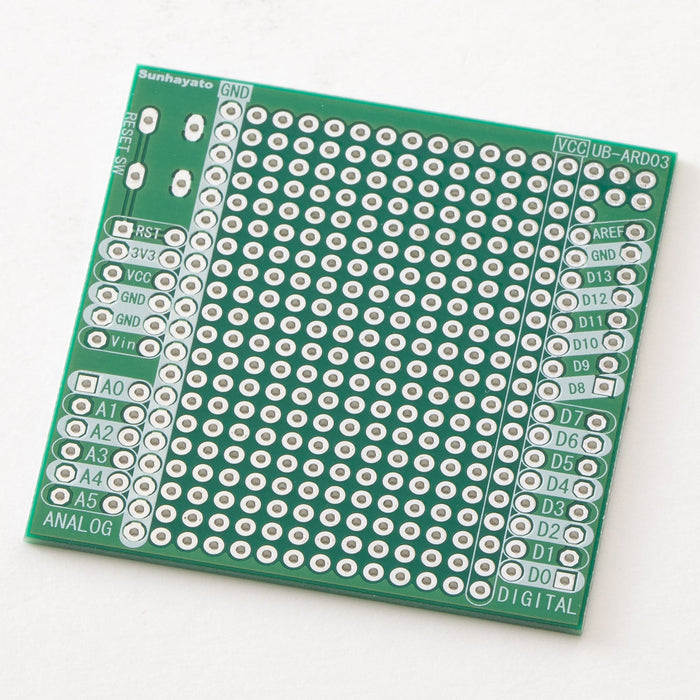

A short size that does not interfere with standard size Arduino USB/power connectors.Universal Printed Circuits Boardsis. The patterns for the power line and reset switch have been wired. A connection connector is included.

Main specifications

Model number

UB-ARD03-P

RoHS Directive (10 Substances)

correspondence

Material types

Glass Composite (CEM-3)

Double-sided / Single-sided

Double-sided

Pitch

2.54mm

Body size

53.34 x 54.61 x 1.0t (mm)

Quantity

1 piece

Product size (approx. including packaging)

75 x 95 x 8mm

Weight (approx. including packaging)

12g

JAN Code

4931442061105

country of origin

Japan

Hole diameter

Φ0.9

Pattern Land Shape

Dot Pattern

Finishing treatment

Through holes, lead-free solder

Accessories (set contents)

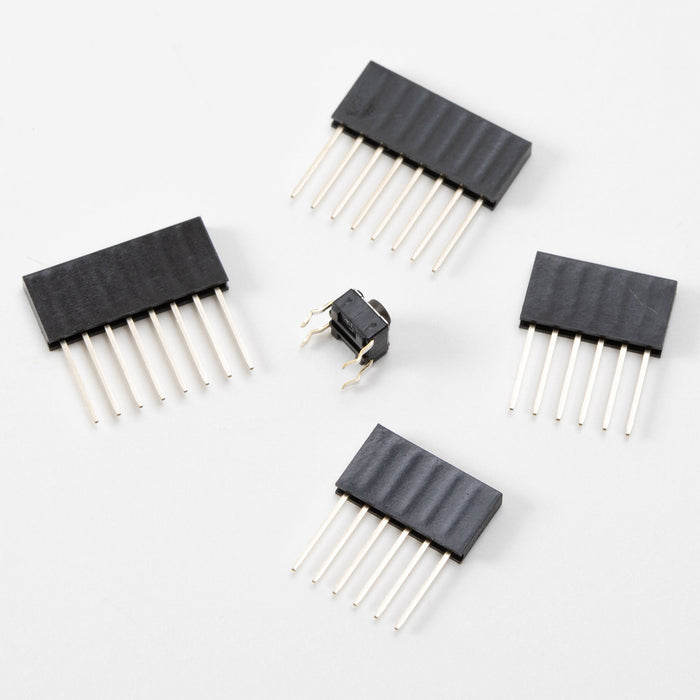

Connectors (2 x 6 pins, 2 x 8 pins), tact switch

Compatible products

Arduino (standard size)

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes

Small box size (approx.)

80 x 120 x 20 mm

Small box weight (approx.)

150g

ubard03p

Materials related to this product

• Universal PCB for Arduino(with connection connector) (UB-ARD03-P) Detailed drawing
• Universal PCB for Arduino(with connection connector) (UB-ARD03-P) RoHS warranty
