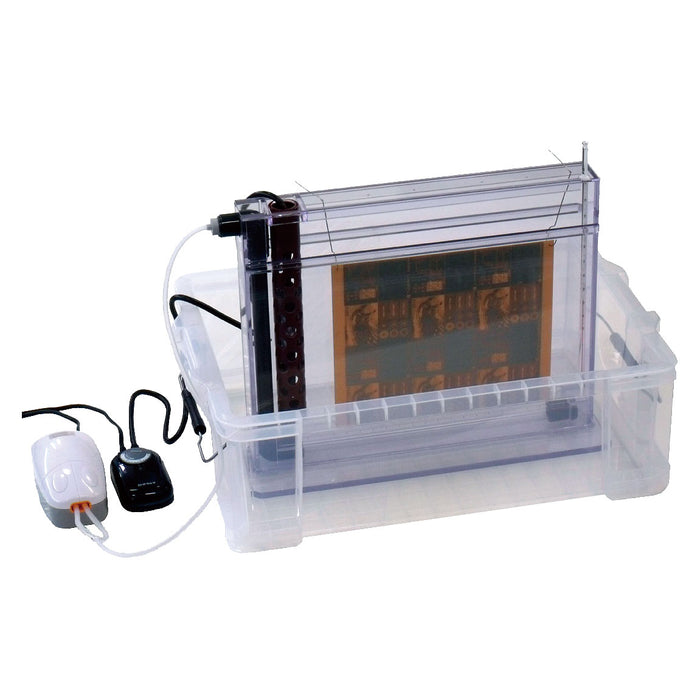

Desk Model Etching Machine (ES-31)

Simple and Efficient Etching with an Air Jet

• Original PCB Production Tools
• Etching Supplies
• Etching Machine
• Rigid PVC (Transparent)

Prices were revised effective August 1, 2025.

Designed to enable efficient etching with a small amount of etching solution. The air jet system automatically agitates the solution, resulting in sharp finishes in a short amount of time. Double-sided Not only can multiple boards be etched simultaneously, but it is also possible to etch several boards at once.The inclusion of a heater holder (cover) ensures that the heater is securely positioned.

Main Specifications

Model Number

ES-31

Material types

Rigid PVC (Transparent)

Unit Dimensions

Etching Tank: 390 × 50 × 305 mm (excluding protrusions)

Quantity per Package

1 unit

Product Dimensions (including packaging, approx.)

560 × 370 × 180 mm

Weight (including packaging, approx.)

5.9 kg

JAN Code

4931442535323

Country of Origin

Japan

Accessories (Set Contents)

Container case × 1, air pump × 1, ceramic heater: 100V 200W × 1, titanium wires (6), thermometer × 1

Power Input

Air Pump, Ceramic Heater: AC 100V 50/60Hz

Power Consumption

Air Pump: 2.4/1.8 W, Ceramic Heater: 200 W

Etchable Board Dimensions

200 × 300 mm

Maximum Etching Solution Volume

Approx. 4 L

es31

Documents Related to This Product

• User Manual for the Desktop Etching Machine (ES-31)
