Desk Model Etching Machine (ES-10)

Simple and Efficient Etching with an Air Jet

• Original PCB Production Tools
• Etching Supplies
• Etching Machine

Prices were revised effective August 1, 2025.

Designed to enable efficient etching using a small amount of etching solution. The air jet system automatically agitates the solution, producing sharp results in a short amount of time. Double-sidedIn addition to simultaneous etching of circuit boards, it is also possible to etch several boards at once.

Main Specifications

Model Number

ES-10

Unit Dimensions

Etching tank body: 220 × 40 × 257 mm (excluding protrusions); with legs attached: 220 × 110 × 273 mm (excluding protrusions)

Quantity per Package

1 unit

Product Dimensions (including packaging, approx.)

380 × 280 × 70 mm

Weight (including packaging, approx.)

1.3 kg

JAN Code

4931442533107

Country of Origin

Japan

Included Items (Set Contents)

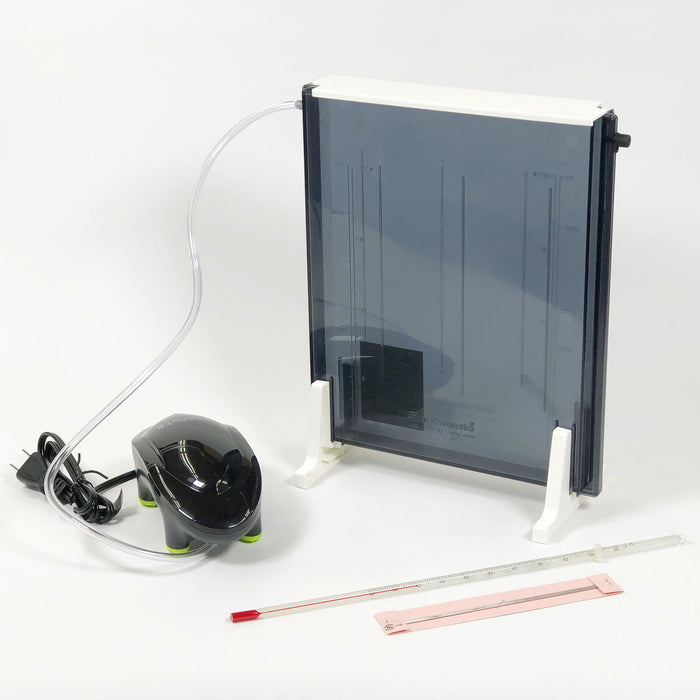

Etching tank, air pump, air tube, thermometer, 3 titanium wires, instruction manual, warranty card

Replacement Parts

Ceramic Heater: KTS-210, KTS-220 (sold separately)

Power Supply

AC 100 V, 50/60 Hz

Power consumption

1 W

Etchable Board Dimensions

150 × 200 mm

Maximum Etching Solution Volume

Approx. 1.4 L

es10

Documents Related to This Product

• User Manual for the Desktop Etching Machine (ES-10)
