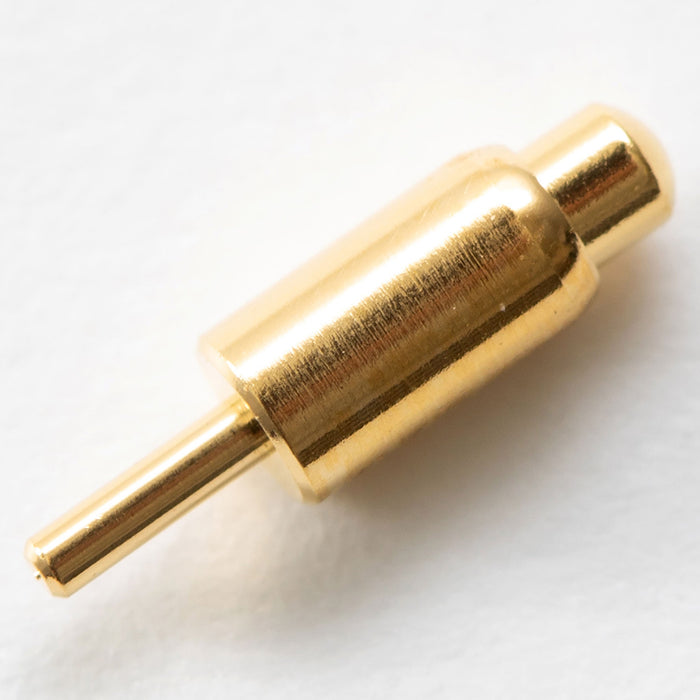

Spring Probe (SYJ-2036)

Universal Printed Circuits BoardsSpring probes that can be used for

• Accessories for PCB
• Spring Probe
• RoHS compatible
• Main body: brass and nickel base gold plating, spring part: SUS nickel flash, gold flash

Prices have been revised from August 1st, 2025.

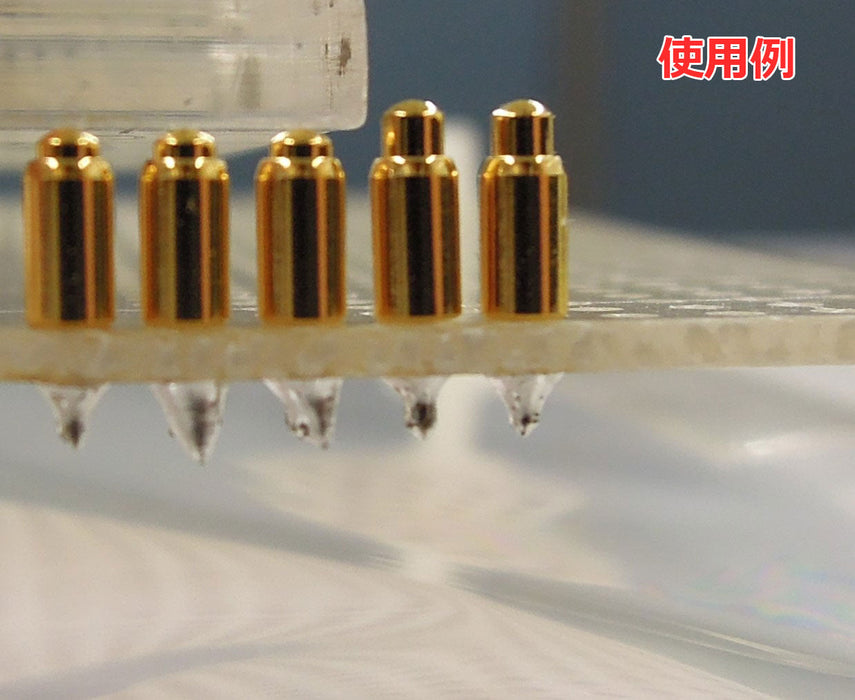

2.54mm pitchUniversal Printed Circuits BoardsCan be used for Because the tip diameter is large, the target can be used not only for PAD, but also for through-hole component holes.

Main specifications

Model number

SYJ-2036

RoHS Directive (10 Substances)

correspondence

Material types

Main body: brass and nickel base gold plating, spring part: SUS nickel flash, gold flash

Quantity

5 packs per bag

Product size (approx. including packaging)

42 x 70 x 3 mm

Weight (approx. including packaging)

1g

JAN Code

4931442652112

country of origin

Japan

Compatible products

Board mounting hole diameter: Φ0.9±0.1mm

Storage temperature range

-10 to 40°C/10 to 70%RH *However, no condensation

Operating temperature range

-40 to 150℃/10 to 95%RH *However, no condensation

Rated current

3A

Contact resistance

50mΩ or less *When initial stroke is 1.0mm

Fit hole diameter

φ0.9±0.1mm

load

1.47±0.294N with 1.0mm stroke

Duration count

30,000 times *When 1.0mm stroke

★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.

Number of cases (boxes)

10 small boxes (5 pieces per bag x 10)

Small box size (approx.)

50 x 92 x 20 mm

Small box weight (approx.)

16g
