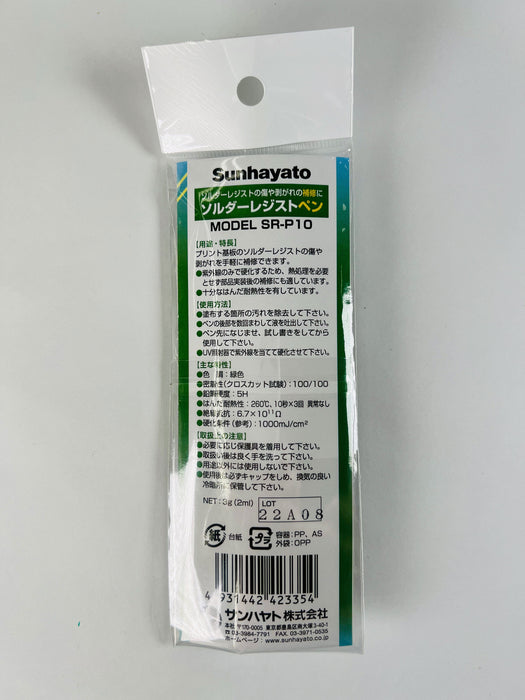

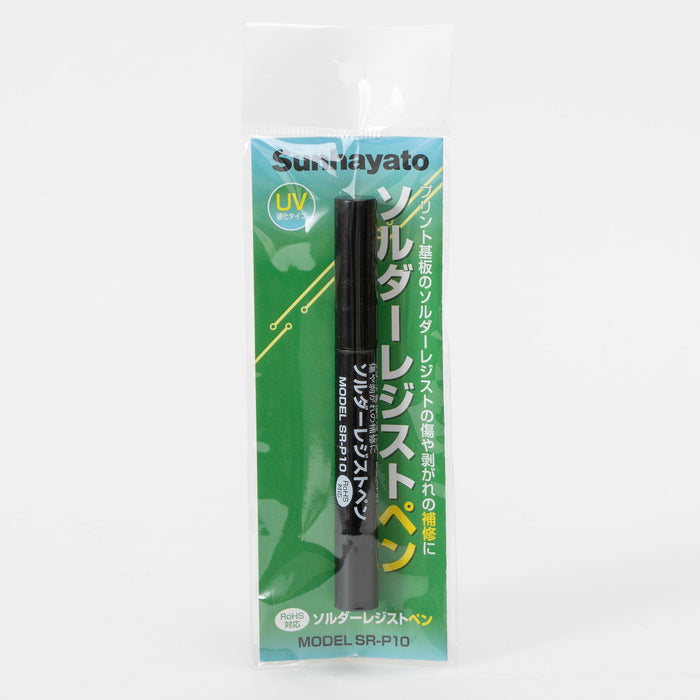

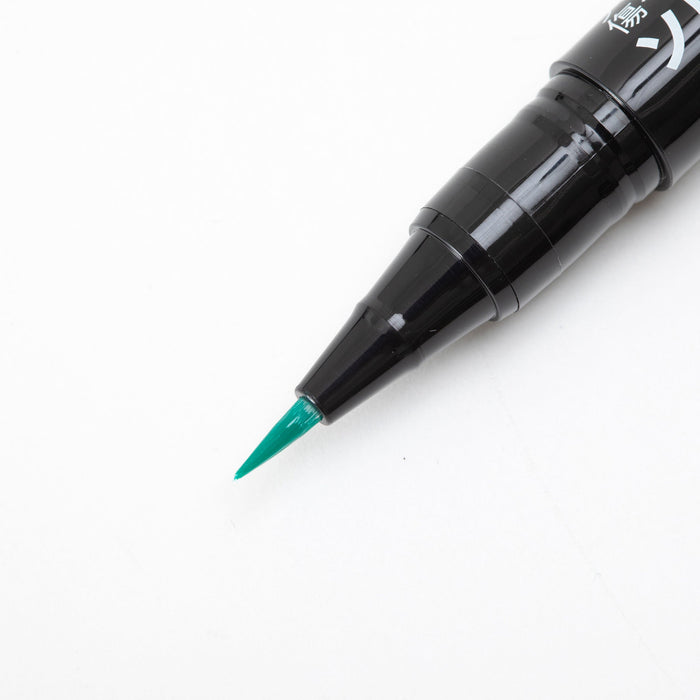

Solder resist pen (green) (SR-P10)

For repairing scratches and peeling of mounted boards

• Aerosol and Chemical Products
• Repair Agent
• RoHS compatible

Prices have been revised from August 1st, 2025.

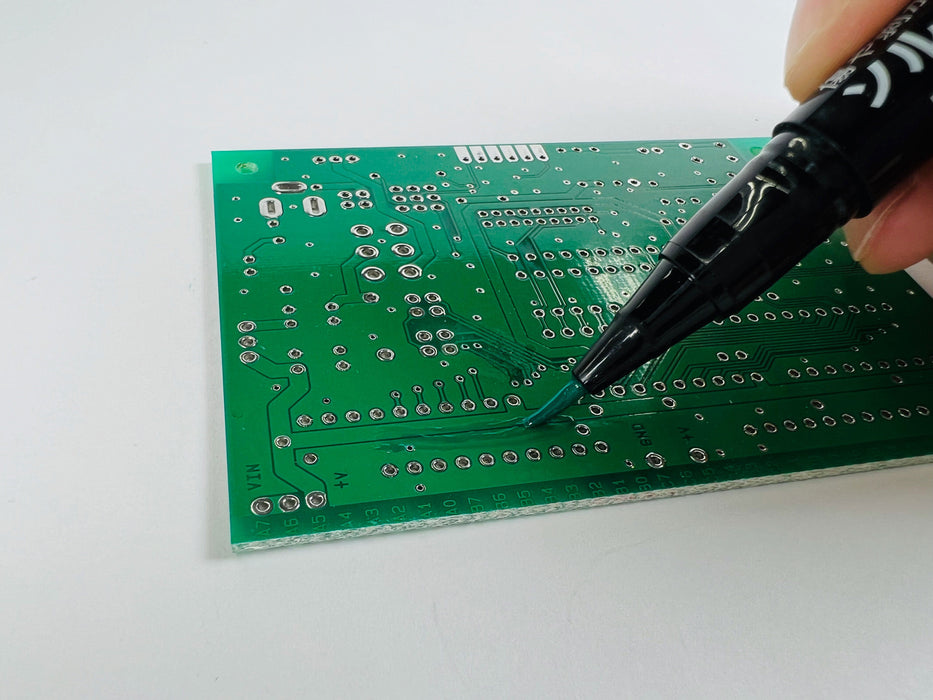

This is a UV-curable type repair insulating coating that protects the substrate from moisture and corrosive gases that enter from scratches and peeling on the substrate solder resist. It has excellent insulation properties and is ideal for repairing after scratches during rework. It will not cure naturally, so please prepare a separate UV irradiator.

Main specifications

Model number

SR-P10

RoHS Directive (10 Substances)

correspondence

Quantity

1 bottle

NET

3g (2ml)

Product size (approx. including packaging)

60 x 190 x 14 mm

Weight (approx. including packaging)

17g

JAN Code

4931442423354

country of origin

Japan

Note

It is recommended to cure using a high-pressure mercury lamp (365nm is the most likely wavelength to cure)

exterior

Green paste

Dielectric constant

4.1 (1MHz)

Dielectric loss

0.02 (1MHz)

Pencil hardness

5H

Adhesion

100/100 (Cross-cut test)

viscosity

150dPa・s (25℃)

specific gravity

1.5

Hazardous materials and content under the Fire Service Act

2m³In the above case, 2ml of designated combustible materials (combustible liquids)

Curing conditions

1000mJ/cm²(High-pressure mercury lamp)

Insulation resistance

6.7X10¹¹Ω (after humidification)

Solder Heat Resistant

260℃, 10 seconds x 3 times No abnormality
